Allow Location Descriptions on the DWARF Expression Stack

1. Extension

In DWARF 5, expressions are evaluated using a typed value stack, a separate location area, and an independent loclist mechanism. This extension unifies all three mechanisms into a single generalized DWARF expression evaluation model that allows both typed values and location descriptions to be manipulated on the evaluation stack. Both single and multiple location descriptions are supported on the stack. In addition, the call frame information (CFI) is extended to support the full generality of location descriptions. This is done in a manner that is backwards compatible with DWARF 5. The extension involves changes to the DWARF 5 sections 2.5 (pp 26-38), 2.6 (pp 38-45), and 6.4 (pp 171-182).

The extension permits operations to act on location descriptions in an incremental, consistent, and composable manner. It allows a small number of operations to be defined to address the requirements of heterogeneous devices as well as providing benefits to non-heterogeneous devices. It acts as a foundation to provide support for other issues that have been raised that would benefit all devices.

Other approaches were explored that involved adding specialized operations and rules. However, these resulted in the need for more operations that did not compose. It also resulted in operations with context sensitive semantics and corner cases that had to be defined. The observation was that numerous specialized context sensitive operations are harder for both produces and consumers than a smaller number of general composable operations that have consistent semantics regardless of context.

First, section 2. Heterogeneous Computing Devices describes heterogeneous devices and the features they have that are not addressed by DWARF 5. Then section 3. DWARF 5 presents a brief simplified overview of the DWARF 5 expression evaluation model that highlights the difficulties for supporting the heterogeneous features. Next, section 4. Extension Solution provides an overview of the proposal, using simplified examples to illustrate how it can address the issues of heterogeneous devices and also benefit non-heterogeneous devices. Then overall conclusions are covered in section 5. Conclusion. Appendix A. Changes to DWARF Debugging Information Format Version 5 gives changes relative to the DWARF Version 5 standard. Finally, appendix B. Further Information has references to further information.

2. Heterogeneous Computing Devices

GPUs and other heterogeneous computing devices have features not common to CPU computing devices.

These devices often have many more registers than a CPU. This helps reduce memory accesses which tend to be more expensive than on a CPU due to the much larger number of threads concurrently executing. In addition to traditional scalar registers of a CPU, these devices often have many wide vector registers.

Example GPU Hardware

They may support masked vector instructions that are used by the compiler to map high level language threads onto the lanes of the vector registers. As a consequence, multiple language threads execute in lockstep as the vector instructions are executed. This is termed single instruction multiple thread (SIMT) execution.

SIMT/SIMD Execution Model

GPUs can have multiple memory address spaces in addition to the single global memory address space of a CPU. These additional address spaces are accessed using distinct instructions and are often local to a particular thread or group of threads.

For example, a GPU may have a per thread block address space that is implemented as scratch pad memory with explicit hardware support to isolate portions to specific groups of threads created as a single thread block.

A GPU may also use global memory in a non linear manner. For example, to support providing a SIMT per lane address space efficiently, there may be instructions that support interleaved access.

Through optimization, the source variables may be located across these different storage kinds. SIMT execution requires locations to be able to express selection of runtime defined pieces of vector registers. With the more complex locations, there is a benefit to be able to factorize their calculation which requires all location kinds to be supported uniformly, otherwise duplication is necessary.

3. DWARF 5

Before presenting the proposed solution to supporting heterogeneous devices, a brief overview of the DWARF 5 expression evaluation model will be given to highlight the aspects being addressed by the extension.

3.1 How DWARF Maps Source Language To Hardware

DWARF is a standardized way to specify debug information. It describes source language entities such as compilation units, functions, types, variables, etc. It is either embedded directly in sections of the code object executables, or split into separate files that they reference.

DWARF maps between source program language entities and their hardware representations. For example:

  • It maps a hardware instruction program counter to a source language program line, and vice versa.
  • It maps a source language function to the hardware instruction program counter for its entry point.
  • It maps a source language variable to its hardware location when at a particular program counter.
  • It provides information to allow virtual unwinding of hardware registers for a source language function call stack.
  • In addition, it provides numerous other information about the source language program.

In particular, there is great diversity in the way a source language entity could be mapped to a hardware location. The location may involve runtime values. For example, a source language variable location could be:

  • In register.
  • At a memory address.
  • At an offset from the current stack pointer.
  • Optimized away, but with a known compiler time value.
  • Optimized away, but with an unknown value, such as happens for unused variables.
  • Spread across combination of the above kinds of locations.
  • At a memory address, but also transiently loaded into registers.

To support this DWARF 5 defines a rich expression language comprised of loclist expressions and operation expressions. Loclist expressions allow the result to vary depending on the PC. Operation expressions are made up of a list of operations that are evaluated on a simple stack machine.

A DWARF expression can be used as the value of different attributes of different debug information entries (DIE). A DWARF expression can also be used as an argument to call frame information information (CFI) entry operations. An expression is evaluated in a context dictated by where it is used. The context may include:

  • Whether the expression needs to produce a value or the location of an entity.
  • The current execution point including process, thread, PC, and stack frame.
  • Some expressions are evaluated with the stack initialized with a specific value or with the location of a base object that is available using the DW_OP_push_object_address operation.

3.2 Examples

The following examples illustrate how DWARF expressions involving operations are evaluated in DWARF 5. DWARF also has expressions involving location lists that are not covered in these examples.

3.2.1 Dynamic Array Size

The first example is for an operation expression associated with a DIE attribute that provides the number of elements in a dynamic array type. Such an attribute dictates that the expression must be evaluated in the context of providing a value result kind.

Dynamic Array Size Example

In this hypothetical example, the compiler has allocated an array descriptor in memory and placed the descriptor’s address in architecture register SGPR0. The first location of the array descriptor is the runtime size of the array.

A possible expression to retrieve the dynamic size of the array is:

DW_OP_regval_type SGPR0 Generic
DW_OP_deref

The expression is evaluated one operation at a time. Operations have operands and can pop and push entries on a stack.

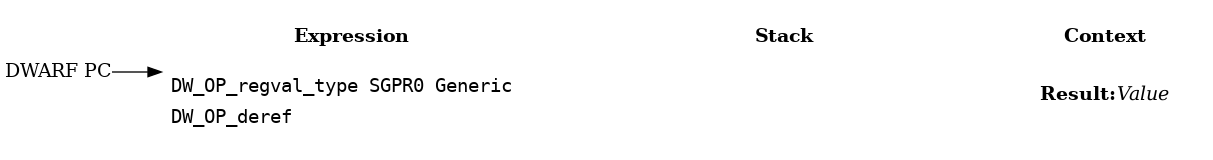

Dynamic Array Size Example: Step 1

The expression evaluation starts with the first DW_OP_regval_type operation. This operation reads the current value of an architecture register specified by its first operand: SGPR0. The second operand specifies the size of the data to read. The read value is pushed on the stack. Each stack element is a value and its associated type.

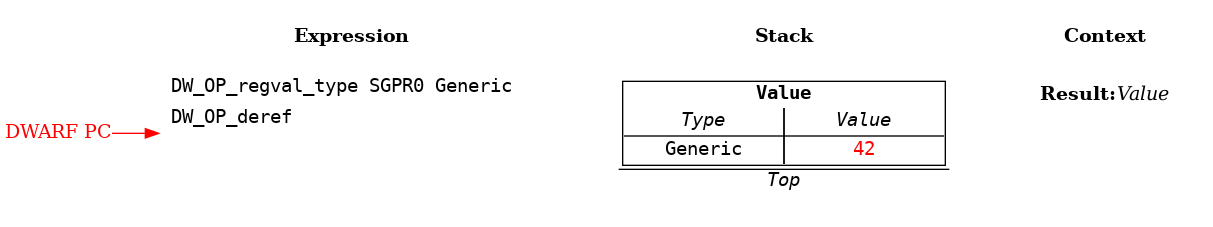

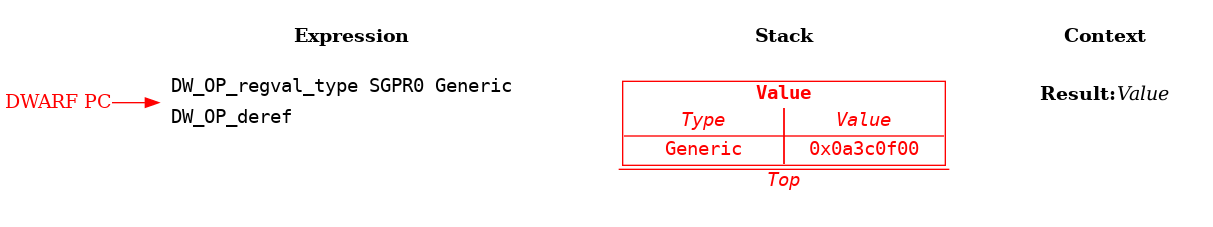

Dynamic Array Size Example: Step 2

The type must be a DWARF base type. It specifies the encoding, byte ordering, and size of values of the type. DWARF defines that each architecture has a default generic type: it is an architecture specific integral encoding and byte ordering, that is the size of the architecture’s global memory address.

The DW_OP_deref operation pops a value off the stack, treats it as a global memory address, and reads the contents of that location using the generic type. It pushes the read value on the stack as the value and its associated generic type.

Dynamic Array Size Example: Step 3

The evaluation stops when it reaches the end of the expression. The result of an expression that is evaluated with a value result kind context is the top element of the stack, which provides the value and its type.

3.2.2 Variable Location in Register

This example is for an operation expression associated with a DIE attribute that provides the location of a source language variable. Such an attribute dictates that the expression must be evaluated in the context of providing a location result kind.

DWARF defines the locations of objects in terms of location descriptions.

In this example, the compiler has allocated a source language variable in architecture register SGPR0.

Variable Location in Register Example

A possible expression to specify the location of the variable is:

DW_OP_regx SGPR0

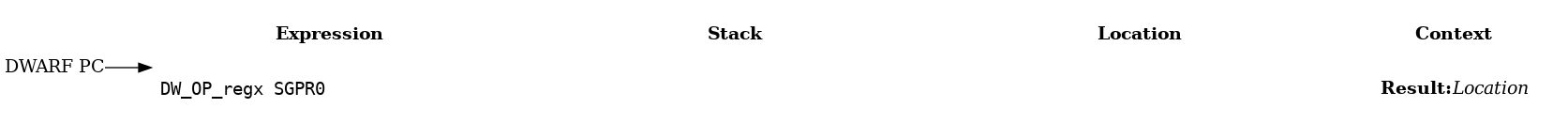

Variable Location in Register Example: Step 1

The DW_OP_regx operation creates a location description that specifies the location of the architecture register specified by the operand: SGPR0. Unlike values, location descriptions are not pushed on the stack. Instead they are conceptually placed in a location area. Unlike values, location descriptions do not have an associated type, they only denote the location of the base of the object.

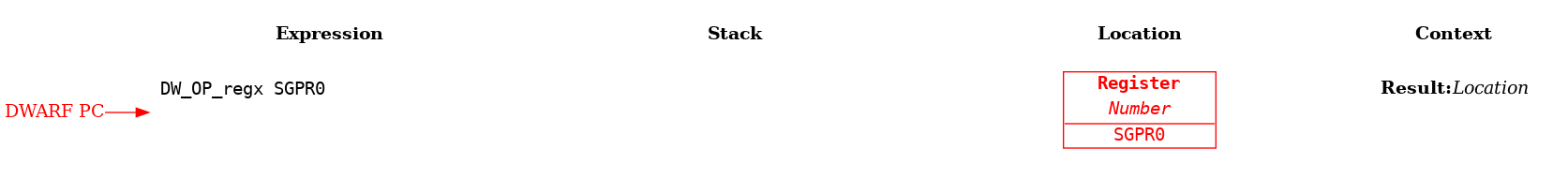

Variable Location in Register Example: Step 2

Again, evaluation stops when it reaches the end of the expression. The result of an expression that is evaluated with a location result kind context is the location description in the location area.

3.2.3 Variable Location in Memory

The next example is for an operation expression associated with a DIE attribute that provides the location of a source language variable that is allocated in a stack frame. The compiler has placed the stack frame pointer in architecture register SGPR0, and allocated the variable at offset 0x10 from the stack frame base. The stack frames are allocated in global memory, so SGPR0 contains a global memory address.

Variable Location in Memory Example

A possible expression to specify the location of the variable is:

DW_OP_regval_type SGPR0 Generic
DW_OP_plus_uconst 0x10

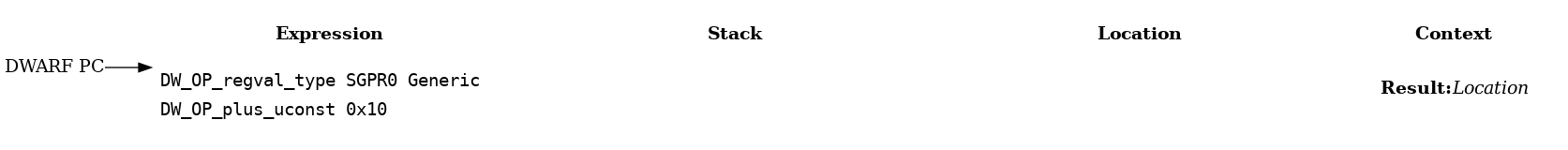

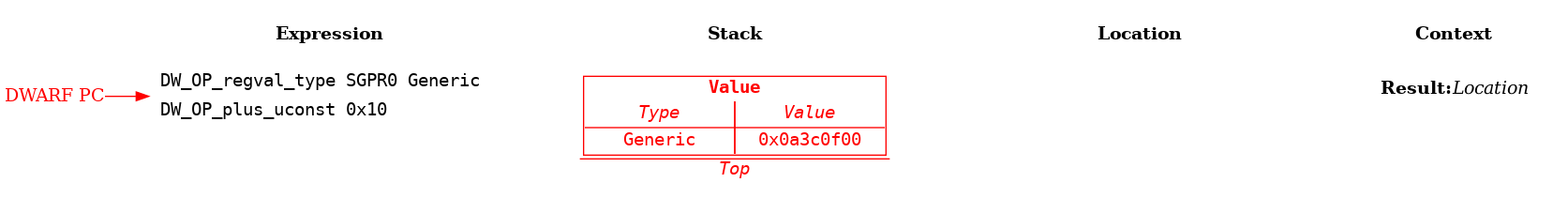

Variable Location in Memory Example: Step 1

As in the previous example, the DW_OP_regval_type operation pushes the stack frame pointer global memory address onto the stack. The generic type is the size of a global memory address.

Variable Location in Memory Example: Step 2

The DW_OP_plus_uconst operation pops a value from the stack, which must have a type with an integral encoding, adds the value of its operand, and pushes the result back on the stack with the same associated type. In this example, that computes the global memory address of the source language variable.

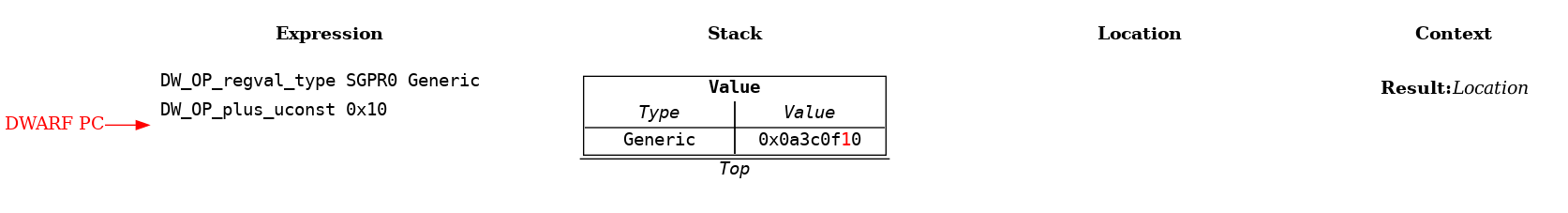

Variable Location in Memory Example: Step 3

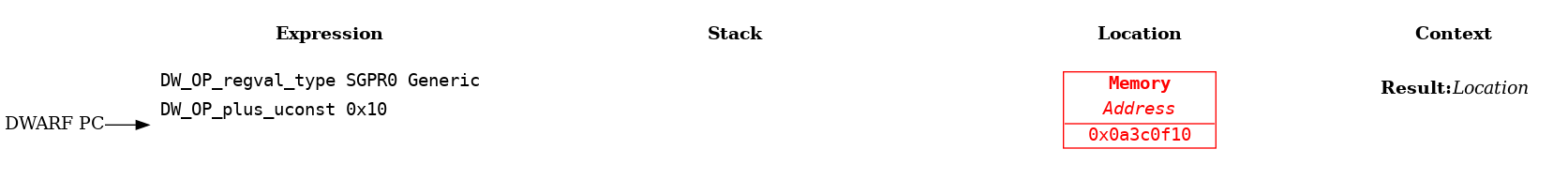

Evaluation stops when it reaches the end of the expression. If the expression that is evaluated has a location result kind context, and the location area is empty, then the top stack element must be a value with the generic type. The value is implicitly popped from the stack, and treated as a global memory address to create a global memory location description, which is placed in the location area. The result of the expression is the location description in the location area.

Variable Location in Memory Example: Step 4

3.2.4 Variable Spread Across Different Locations

This example is for a source variable that is partly in a register, partly undefined, and partly in memory.

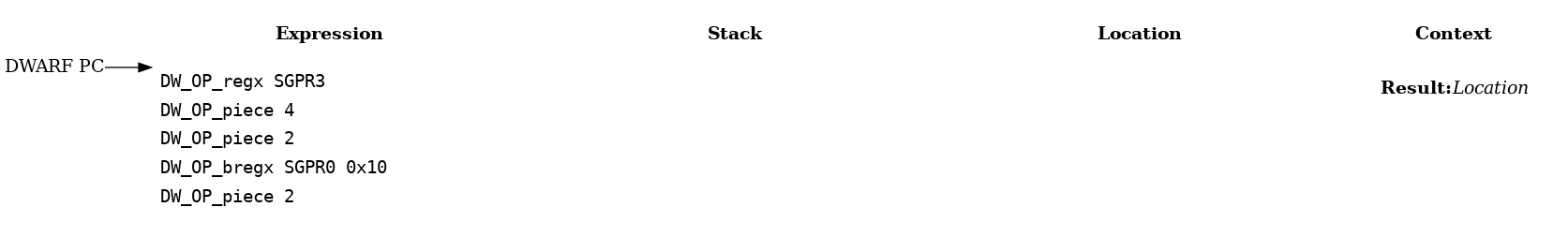

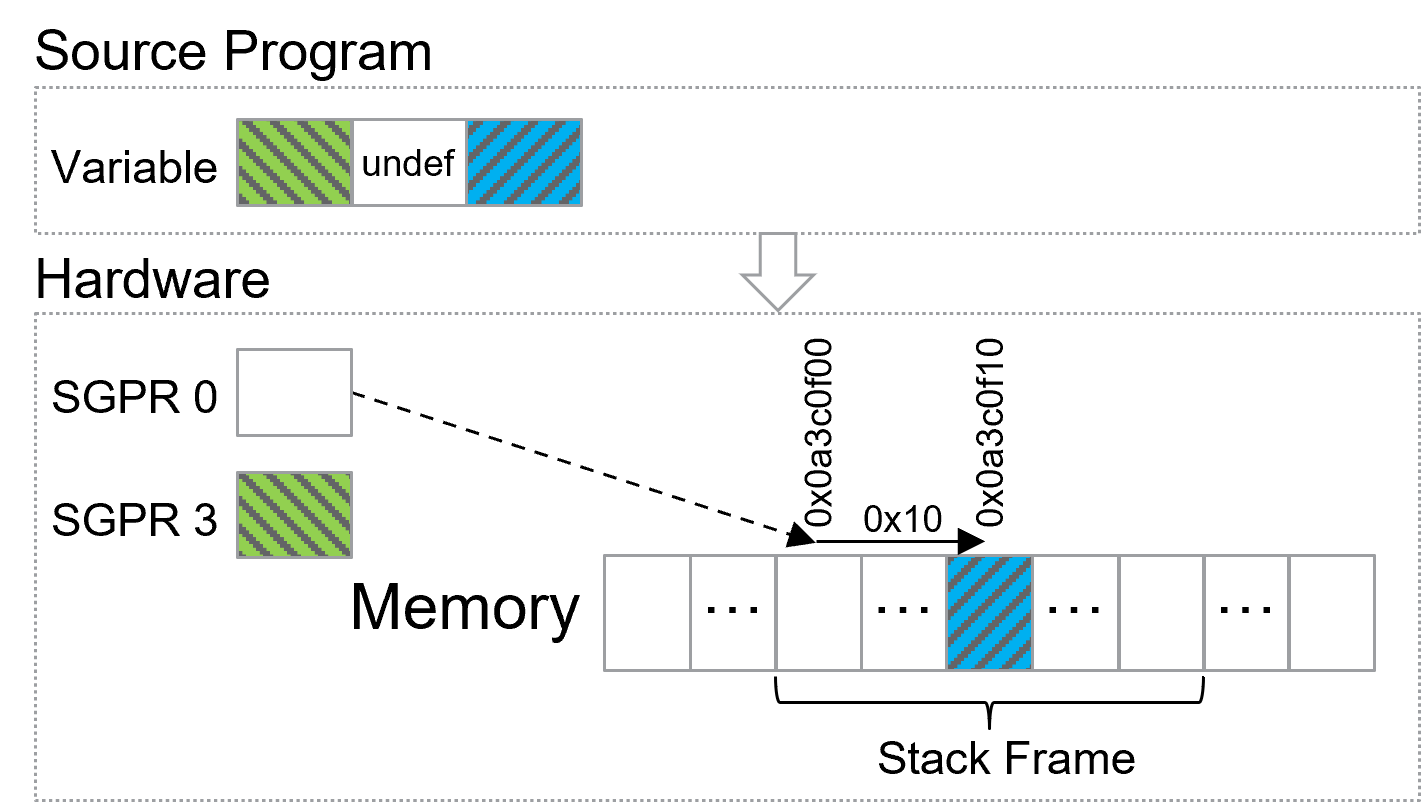

Variable Spread Across Different Locations Example

DWARF defines composite location descriptions that can have one or more parts. Each part specifies a location description and the number of bytes used from it. The following operation expression creates a composite location description.

DW_OP_regx SGPR3
DW_OP_piece 4
DW_OP_piece 2
DW_OP_bregx SGPR0 0x10
DW_OP_piece 2

Variable Spread Across Different Locations Example: Step 1

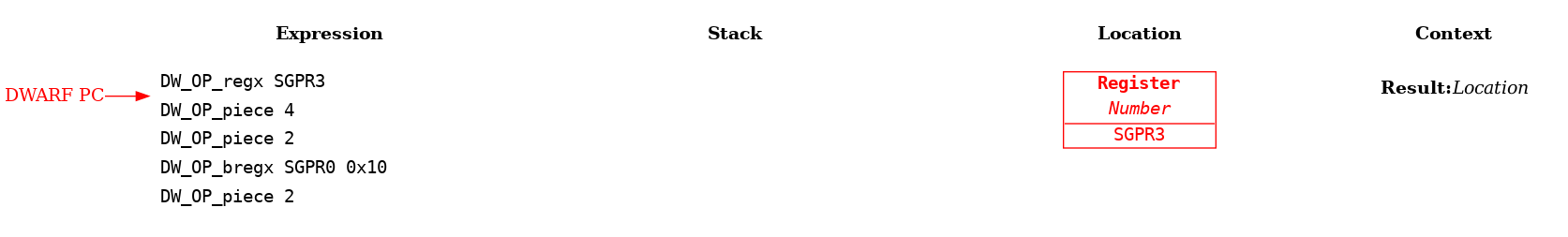

The DW_OP_regx operation creates a register location description in the location area.

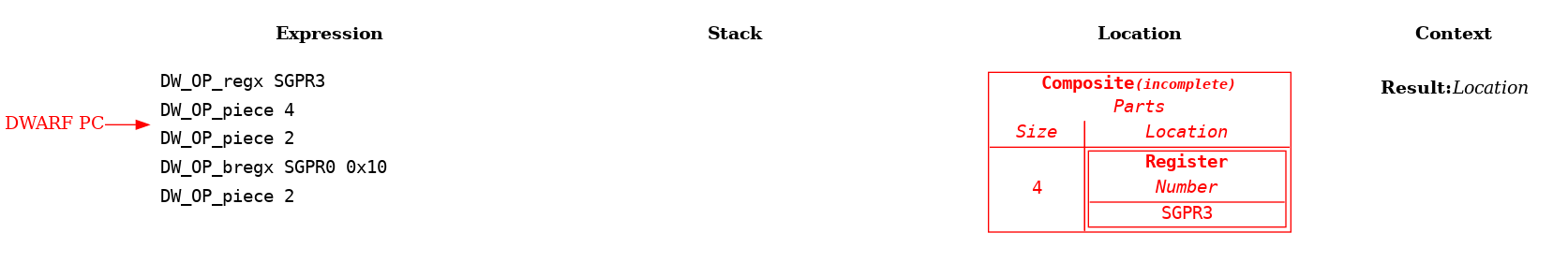

Variable Spread Across Different Locations Example: Step 2

The first DW_OP_piece operation creates an incomplete composite location description in the location area with a single part. The location description in the location area is used to define the beginning of the part for the size specified by the operand, namely 4 bytes.

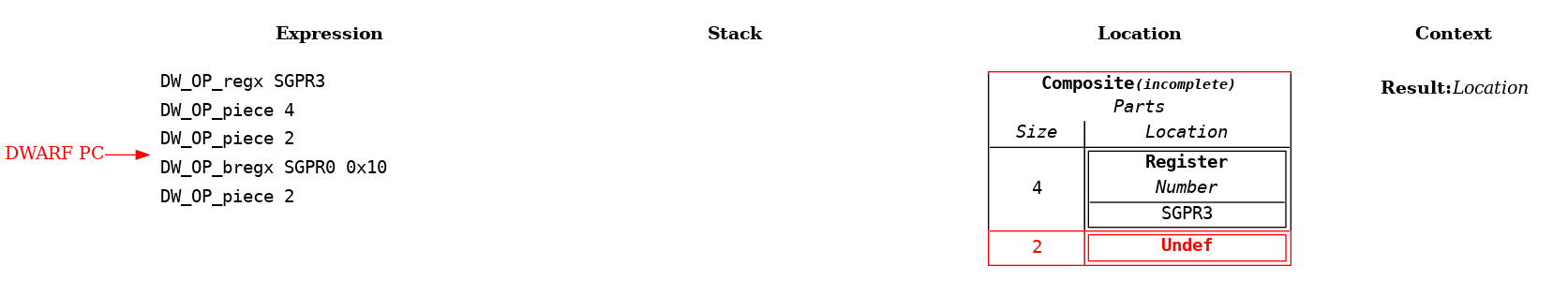

Variable Spread Across Different Locations Example: Step 3

A subsequent DW_OP_piece adds a new part to an incomplete composite location description already in the location area. The parts form a contiguous set of bytes. If there are no other location descriptions in the location area, and no value on the stack, then the part implicitly uses the undefined location description. Again, the operand specifies the size of the part in bytes. The undefined location description can be used to indicate a part that has been optimized away. In this case, 2 bytes of undefined value.

Variable Spread Across Different Locations Example: Step 4

The DW_OP_bregx operation reads the architecture register specified by the first operand (SGPR0) as the generic type, adds the value of the second operand (0x10), and pushes the value on the stack.

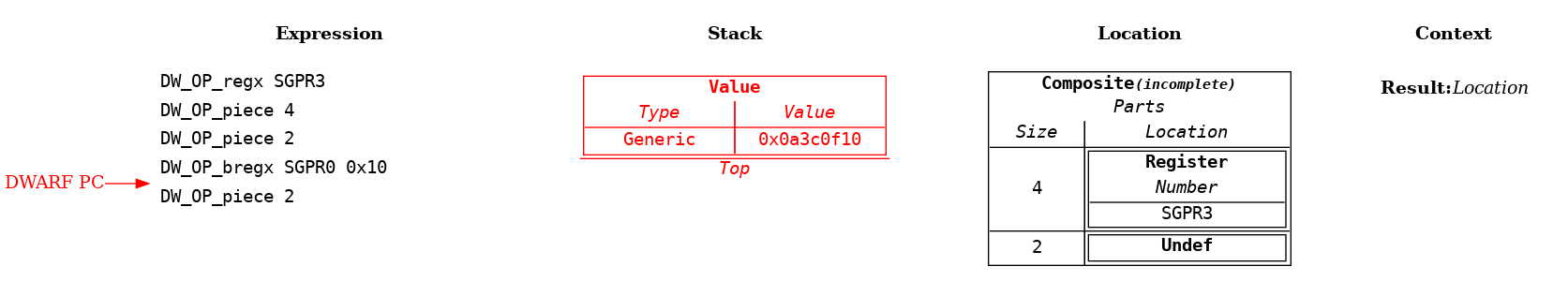

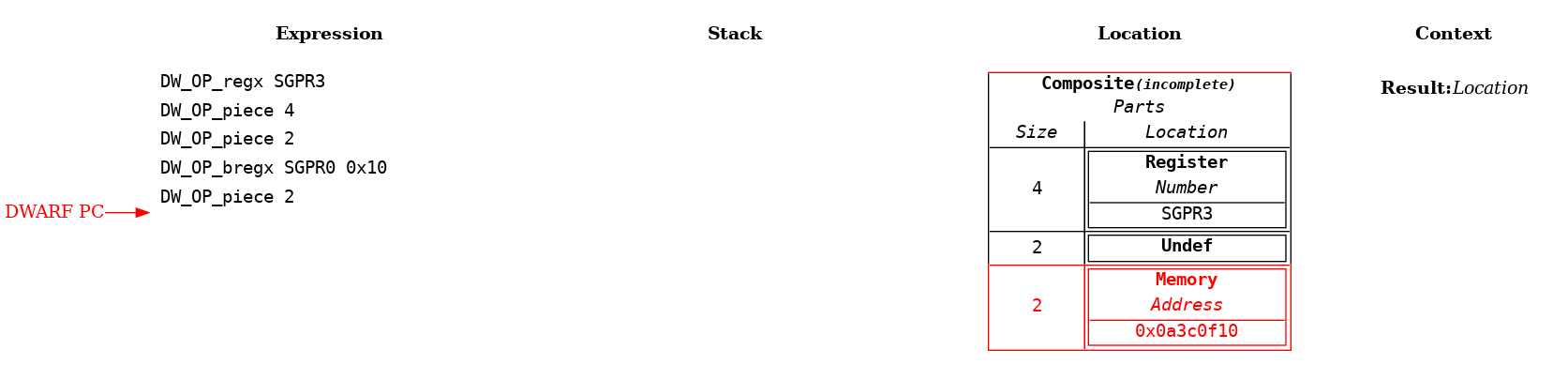

Variable Spread Across Different Locations Example: Step 5

The next DW_OP_piece operation adds another part to the already created incomplete composite location.

If there is no other location in the location area, but there is a value on stack, the new part is a memory location description. The memory address used is popped from the stack. In this case, the operand of 2 indicates there are 2 bytes from memory.

Variable Spread Across Different Locations Example: Step 6

Evaluation stops when it reaches the end of the expression. If the expression that is evaluated has a location result kind context, and the location area has an incomplete composite location description, the incomplete composite location is implicitly converted to a complete composite location description. The result of the expression is the location description in the location area.

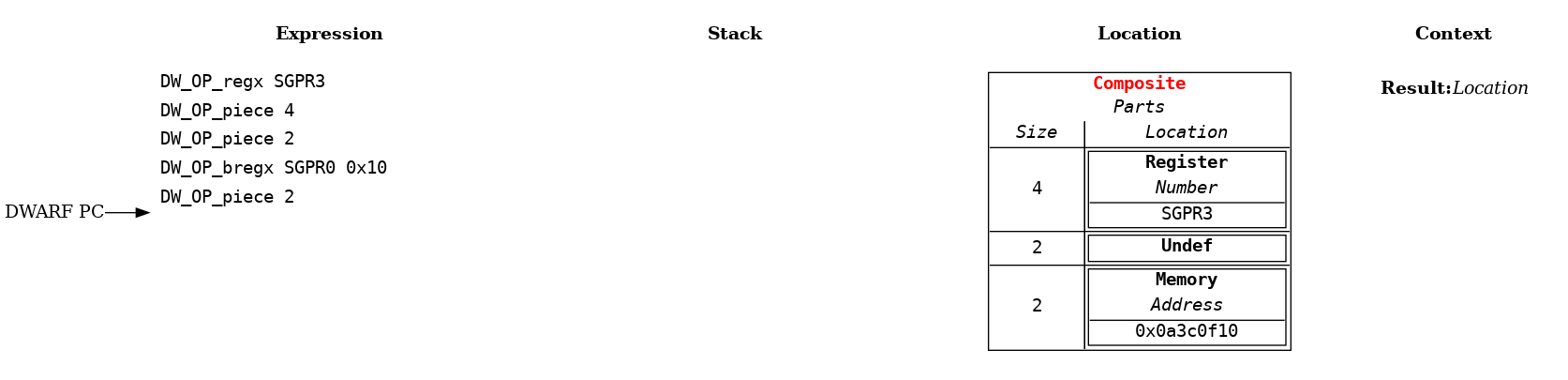

Variable Spread Across Different Locations Example: Step 7

3.2.5 Offsetting a Composite Location

This example attempts to extend the previous example to offset the composite location description it created. The 3.2.3 Variable Location in Memory example conveniently used the DW_OP_plus operation to offset a memory address.

DW_OP_regx SGPR3
DW_OP_piece 4
DW_OP_piece 2
DW_OP_bregx SGPR0 0x10
DW_OP_piece 2
DW_OP_plus_uconst 5

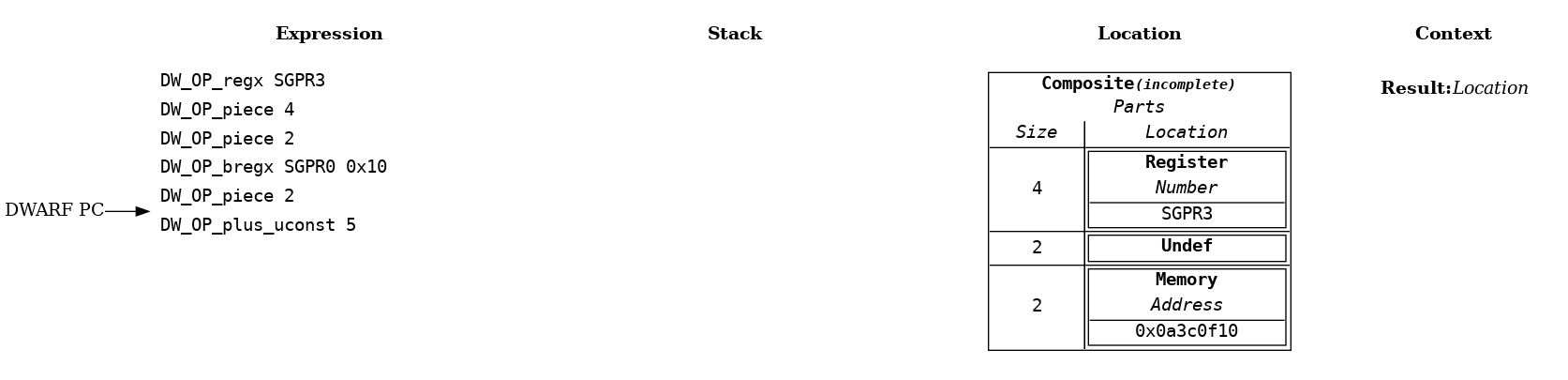

Offsetting a Composite Location Example: Step 6

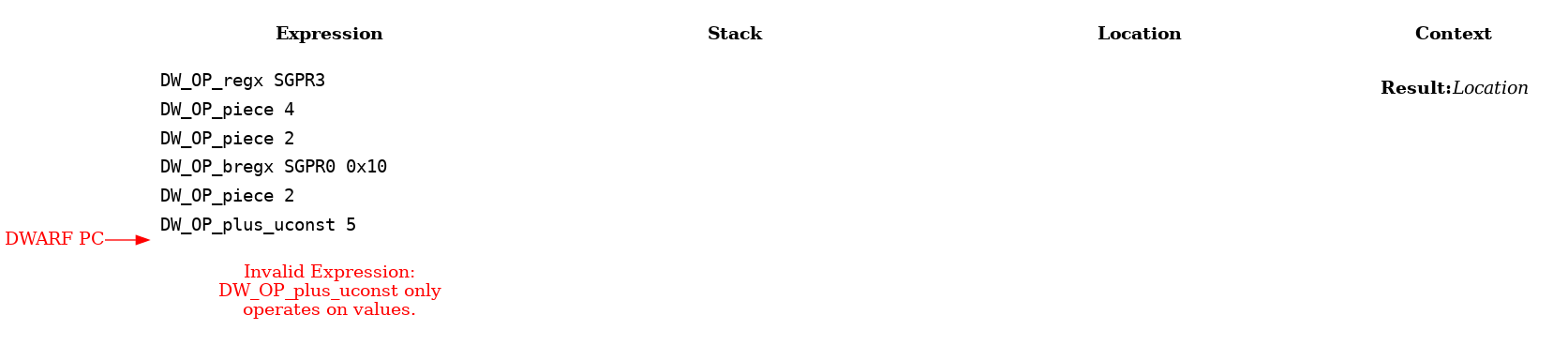

However, DW_OP_plus cannot be used to offset a composite location. It only operates on the stack.

Offsetting a Composite Location Example: Step 7

To offset a composite location description, the compiler would need to make a different composite location description, starting at the part corresponding to the offset. For example:

DW_OP_piece 1
DW_OP_bregx SGPR0 0x10
DW_OP_piece 2

This illustrates that operations on stack values are not composable with operations on location descriptions.

3.3 Limitations

DWARF 5 is unable to describe variables in runtime indexed parts of registers. This is required to describe a source variable that is located in a lane of a SIMT vector register.

Some features only work when located in global memory. The type attribute expressions require a base object which could be in any kind of location.

DWARF procedures can only accept global memory address arguments. This limits the ability to factorize the creation of locations that involve other location kinds.

There are no vector base types. This is required to describe vector registers.

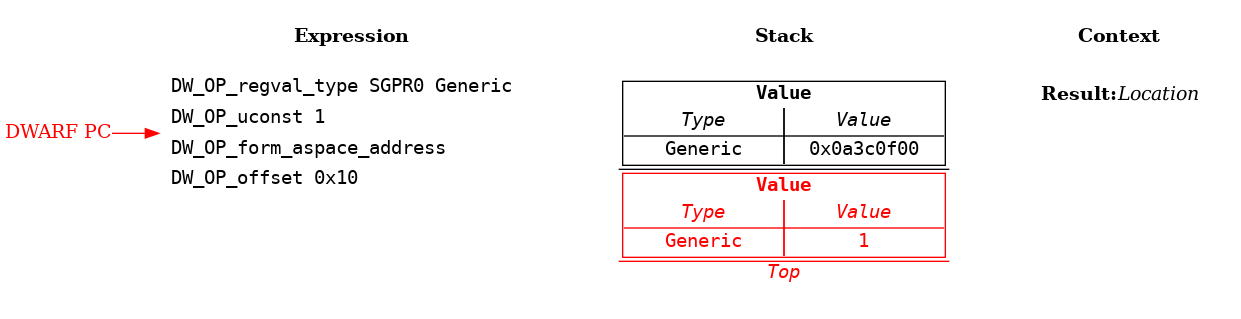

There is no operation to create a memory location in a non-global address space. Only the dereference operation supports providing an address space.

CFI location expressions do not allow composite locations or non-global address space memory locations. Both these are needed in optimized code for devices with vector registers and address spaces.

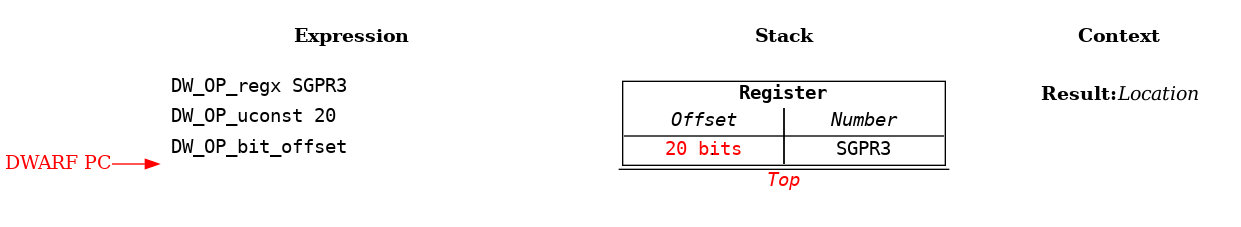

Bit field offsets are only supported in a limited way for register locations. Supporting them in a uniform manner for all location kinds is required to support languages with bit sized entities.

4. Extension Solution

This section outlines the extension to generalize the DWARF expression evaluation model to allow location descriptions to be manipulated on the stack. It presents a number of simplified examples to demonstrate the benefits and how the extension solves the issues of heterogeneous devices. It presents how this is done in a manner that is backwards compatible with DWARF 5.

4.1 Location Description

In order to have consistent, composable operations that act on location descriptions, the extension defines a uniform way to handle all location kinds. That includes memory, register, implicit, implicit pointer, undefined, and composite location descriptions.

Each kind of location description is conceptually a zero-based offset within a piece of storage. The storage is a contiguous linear organization of a certain number of bytes (see below for how this is extended to support bit sized storage).

  • For global memory, the storage is the linear stream of bytes of the architecture’s address size.
  • For each separate architecture register, it is the linear stream of bytes of the size of that specific register.
  • For an implicit, it is the linear stream of bytes of the value when represented using the value’s base type which specifies the encoding, size, and byte ordering.
  • For undefined, it is an infinitely sized linear stream where every byte is undefined.
  • For composite, it is a linear stream of bytes defined by the composite’s parts.

4.2 Stack Location Description Operations

The DWARF expression stack is extended to allow each stack entry to either be a value or a location description.

Evaluation rules are defined to implicitly convert a stack element that is a value to a location description, or vice versa, so that all DWARF 5 expressions continue to have the same semantics. This reflects that a memory address is effectively used as a proxy for a memory location description.

For each place that allows a DWARF expression to be specified, it is defined if the expression is to be evaluated as a value or a location description.

Existing DWARF expression operations that are used to act on memory addresses are generalized to act on any location description kind. For example, the DW_OP_deref operation pops a location description rather than a memory address value from the stack and reads the storage associated with the location kind starting at the location description’s offset.

Existing DWARF expression operations that create location descriptions are changed to pop and push location descriptions on the stack. For example, the DW_OP_value, DW_OP_regx, DW_OP_implicit_value, DW_OP_implicit_pointer, DW_OP_stack_value, and DW_OP_piece.

New operations that act on location descriptions can be added. For example, a DW_OP_offset operation that modifies the offset of the location description on top of the stack. Unlike the DW_OP_plus operation that only works with memory address, a DW_OP_offset operation can work with any location kind.

To allow incremental and nested creation of composite location descriptions, a DW_OP_piece_end can be defined to explicitly indicate the last part of a composite. Currently, creating a composite must always be the last operation of an expression.

A DW_OP_undefined operation can be defined that explicitly creates the undefined location description. Currently this is only possible as a piece of a composite when the stack is empty.

4.3 Examples

This section provides some motivating examples to illustrate the benefits that result from allowing location descriptions on the stack.

4.3.1 Source Language Variable Spilled to Part of a Vector Register

A compiler generating code for a GPU may allocate a source language variable that it proves has the same value for every lane of a SIMT thread in a scalar register. It may then need to spill that scalar register. To avoid the high cost of spilling to memory, it may spill to a fixed lane of one of the numerous vector registers.

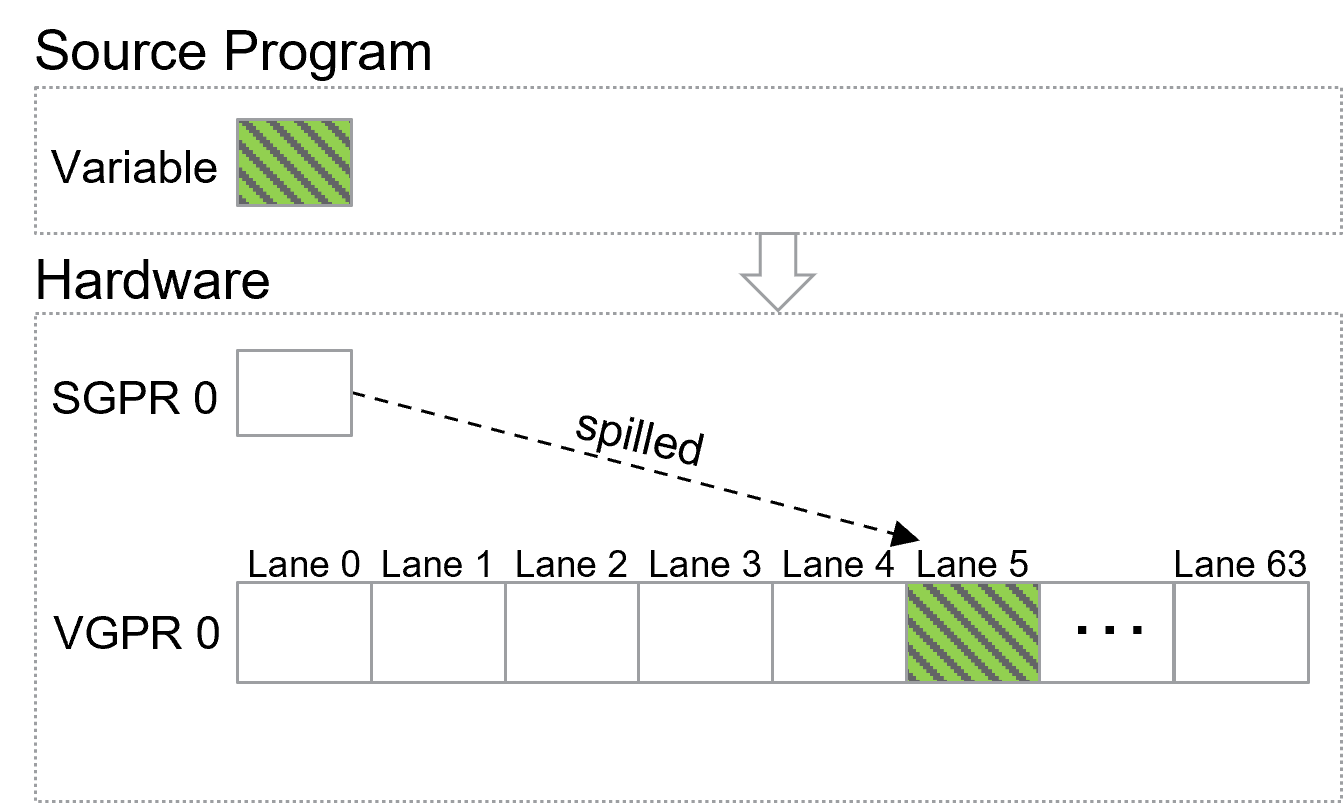

Source Language Variable Spilled to Part of a Vector Register Example

The following expression defines the location of a source language variable that the compiler allocated in a scalar register, but had to spill to lane 5 of a vector register at this point of the code.

DW_OP_regx VGPR0
DW_OP_offset_uconst 20

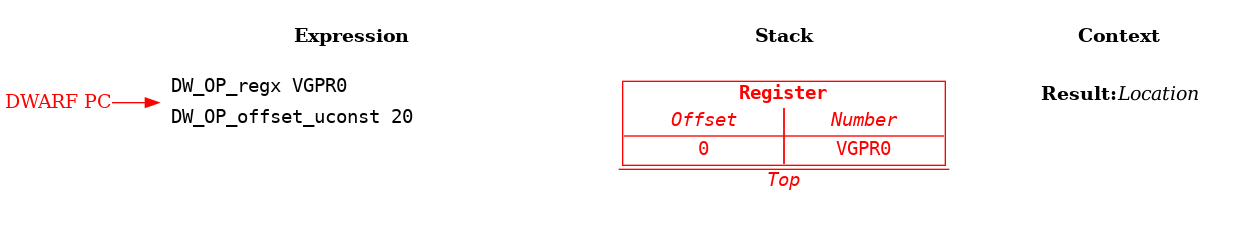

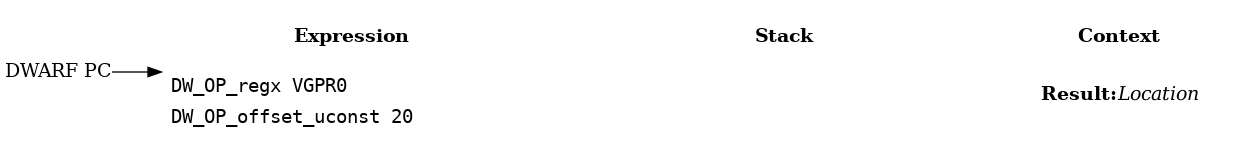

Source Language Variable Spilled to Part of a Vector Register Example: Step 1

The DW_OP_regx pushes a register location description on the stack. The storage for the register is the size of the vector register. The register location description conceptually references that storage with an initial offset of 0. The architecture defines the byte ordering of the register.

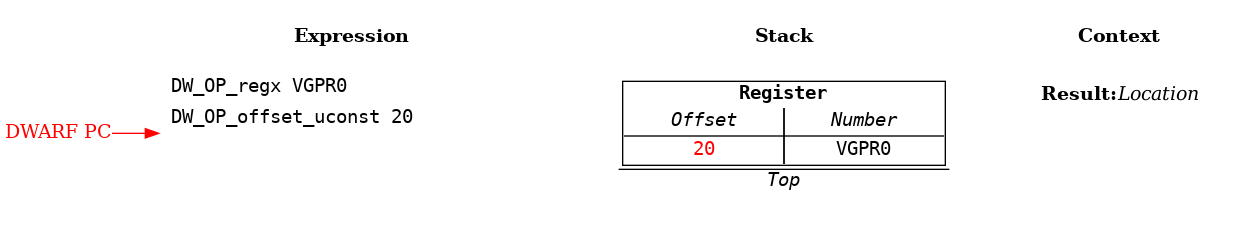

Source Language Variable Spilled to Part of a Vector Register Example: Step 2

The DW_OP_offset_uconst pops a location description off the stack, adds its operand value to the offset, and pushes the updated location description back on the stack. In this case the source language variable is being spilled to lane 5 and each lane’s component which is 32-bits (4 bytes), so the offset is 5*4=20.

Source Language Variable Spilled to Part of a Vector Register Example: Step 3

The result of the expression evaluation is the location description on the top of the stack.

An alternative approach could be for the target to define distinct register names for each part of each vector register. However, this is not practical for GPUs due to the sheer number of registers that would have to be defined. It would also not permit a runtime index into part of the whole register to be used as shown in the next example.

4.3.2 Source Language Variable Spread Across Multiple Vector Registers

A compiler may generate SIMT code for a GPU. Each source language thread of execution is mapped to a single lane of the GPU thread. Source language variables that are mapped to a register, are mapped to the lane component of the vector registers corresponding to the source language’s thread of execution.

The location expression for such variables must therefore be executed in the context of the focused source language thread of execution. A DW_OP_push_lane operation can be defined to push the value of the lane for the currently focused source language thread of execution. The value to use would be provided by the consumer of DWARF when it evaluates the location expression.

If the source language variable is larger than the size of the vector register lane component, then multiple vector registers are used. Each source language thread of execution will only use the vector register components for its associated lane.

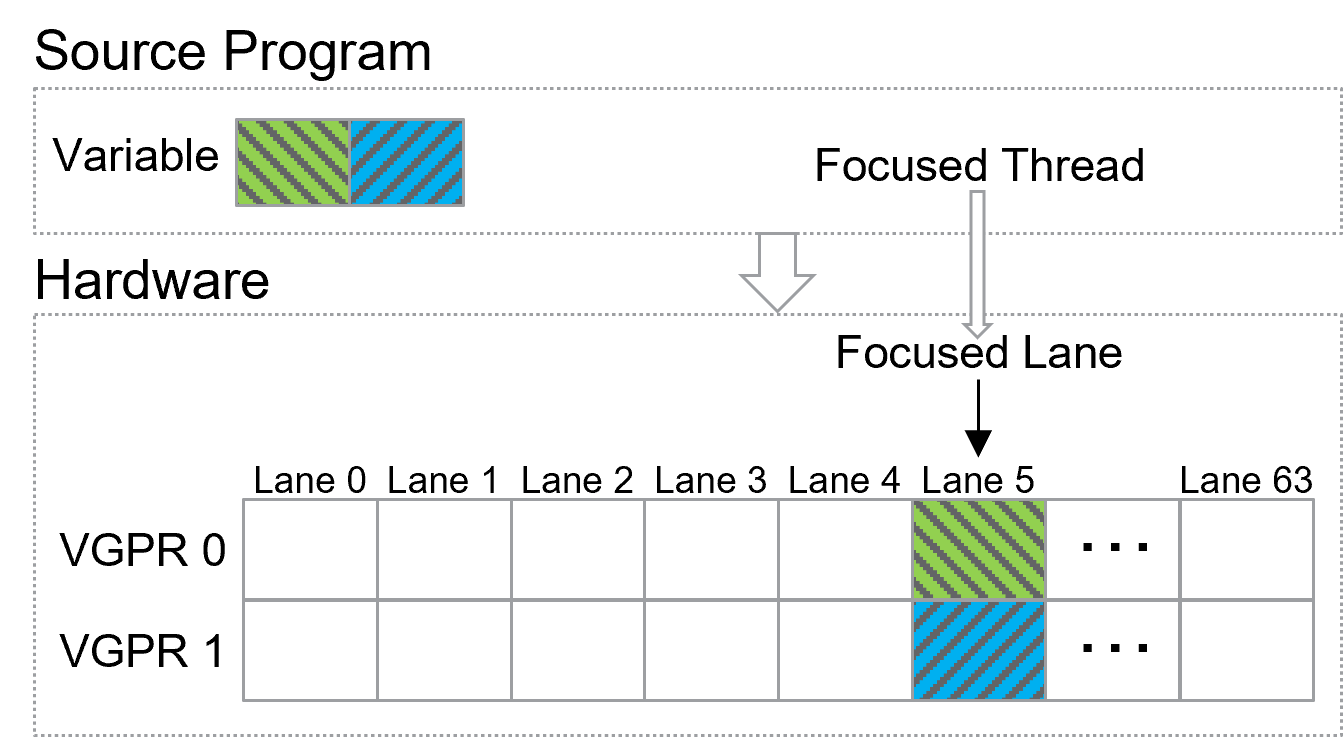

Source Language Variable Spread Across Multiple Vector Registers Example

The following expression defines the location of a source language variable that has to occupy two vector registers. A composite location description is created that combines the two parts. It will give the correct result regardless of which lane corresponds to the source language thread of execution that the user is focused on.

DW_OP_regx VGPR0
DW_OP_push_lane
DW_OP_uconst 4
DW_OP_mul
DW_OP_offset
DW_OP_piece 4
DW_OP_regx VGPR1
DW_OP_push_lane
DW_OP_uconst 4
DW_OP_mul
DW_OP_offset
DW_OP_piece 4

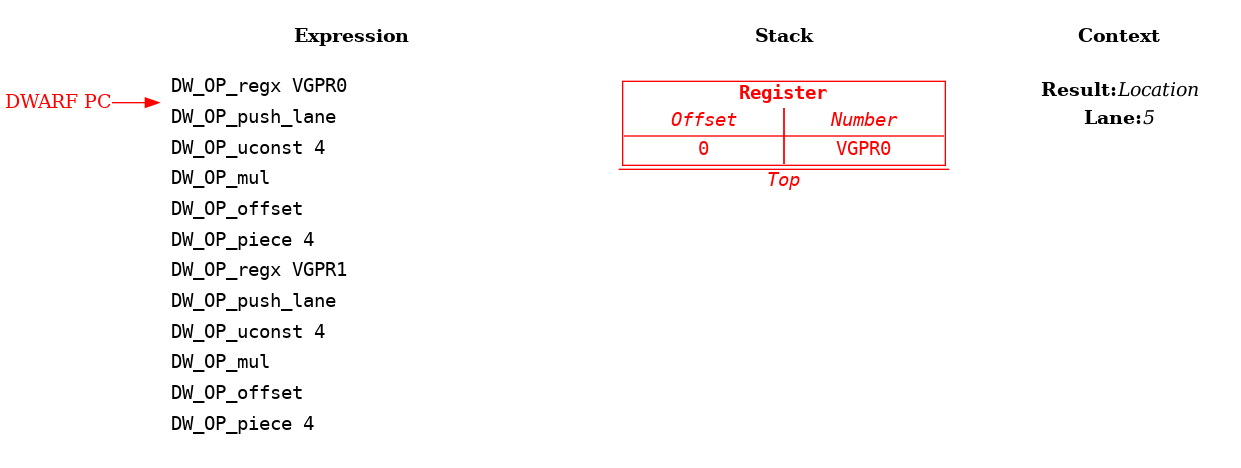

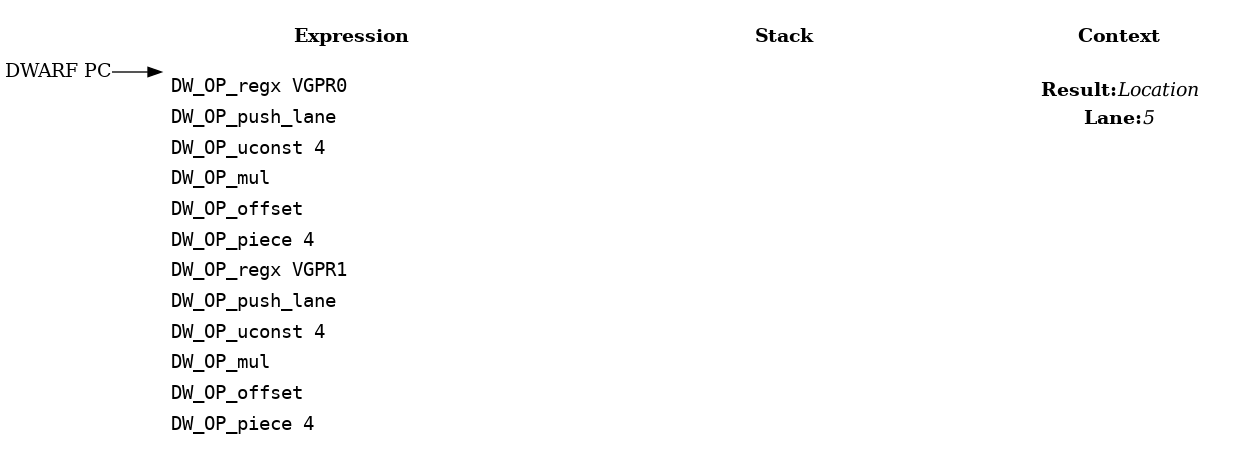

Source Language Variable Spread Across Multiple Vector Registers Example: Step 1

The DW_OP_regx VGPR0 pushes a location description for the first register.

Source Language Variable Spread Across Multiple Vector Registers Example: Step 2

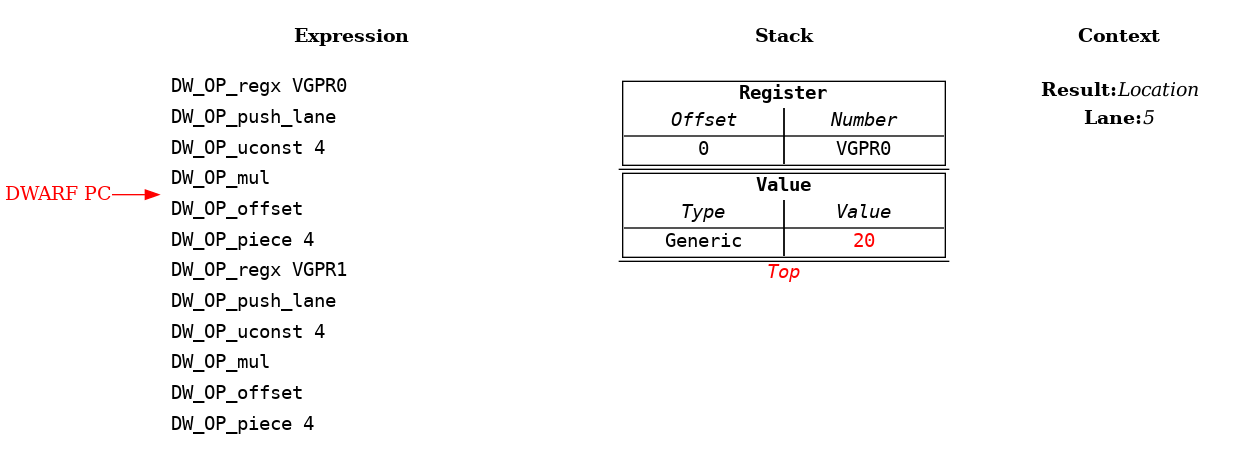

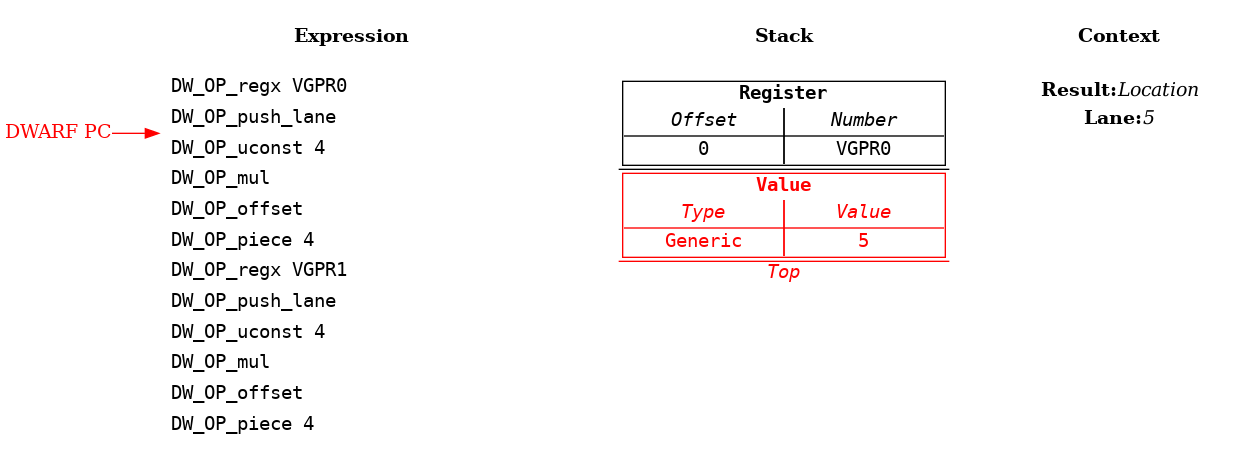

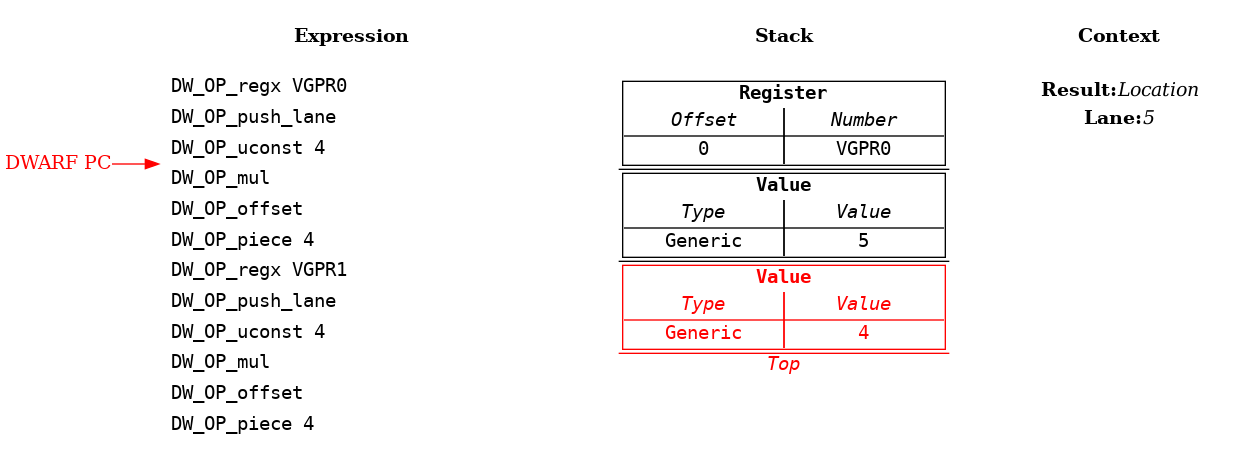

The DW_OP_push_lane; DW_OP_uconst 4; DW_OP_mul calculates the offset for the focused lanes vector register component as 4 times the lane number.

Source Language Variable Spread Across Multiple Vector Registers Example: Step 3

Source Language Variable Spread Across Multiple Vector Registers Example: Step 4

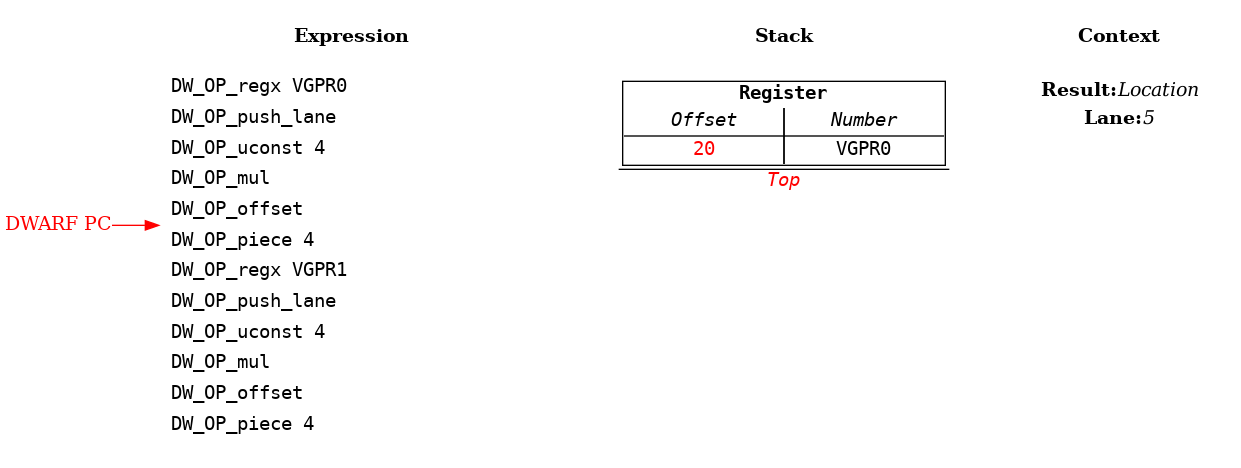

Source Language Variable Spread Across Multiple Vector Registers Example: Step 5

The DW_OP_offset adjusts the register location description’s offset to the runtime computed value.

Source Language Variable Spread Across Multiple Vector Registers Example: Step 6

The DW_OP_piece either creates a new composite location description, or adds a new part to an existing incomplete one. It pops the location description to use for the new part. It then pops the next stack element if it is an incomplete composite location description, otherwise it creates a new incomplete composite location description with no parts. Finally it pushes the incomplete composite after adding the new part.

In this case a register location description is added to a new incomplete composite location description. The 4 of the DW_OP_piece specifies the size of the register storage that comprises the part. Note that the 4 bytes start at the computed register offset.

For backwards compatibility, if the stack is empty or the top stack element is an incomplete composite, an undefined location description is used for the part. If the top stack element is a generic base type value, then it is implicitly converted to a global memory location description with an offset equal to the value.

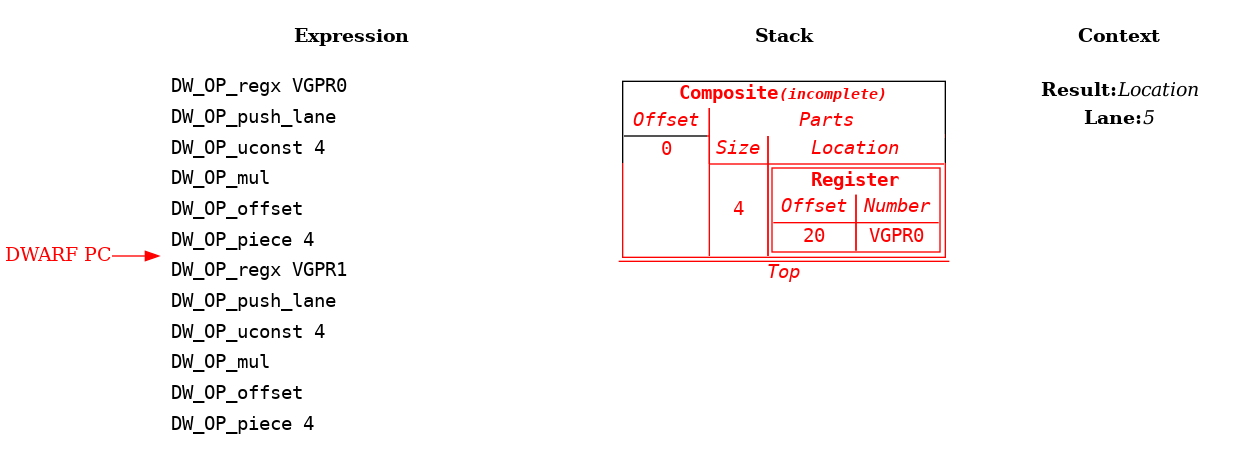

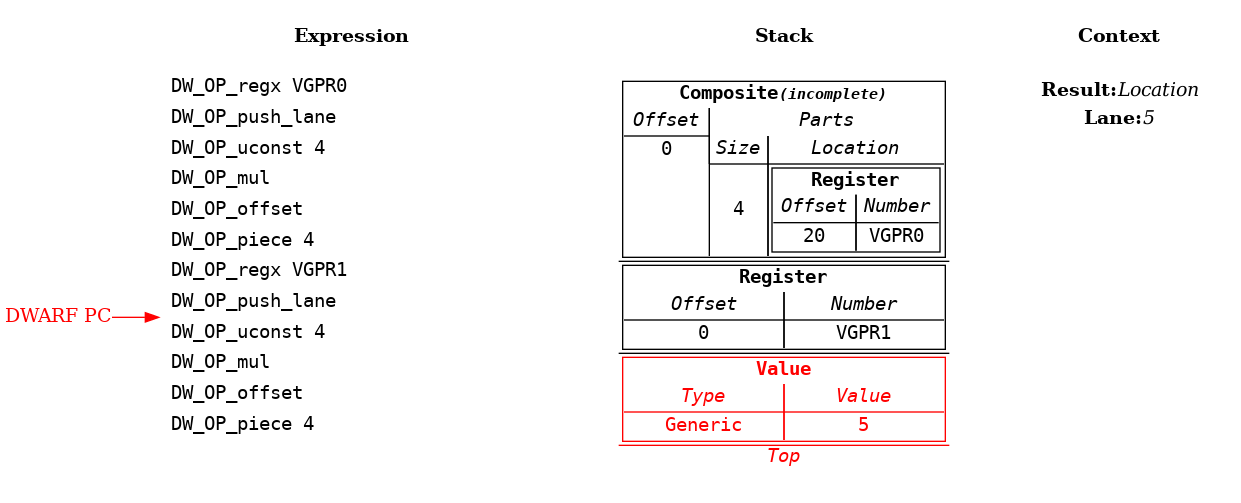

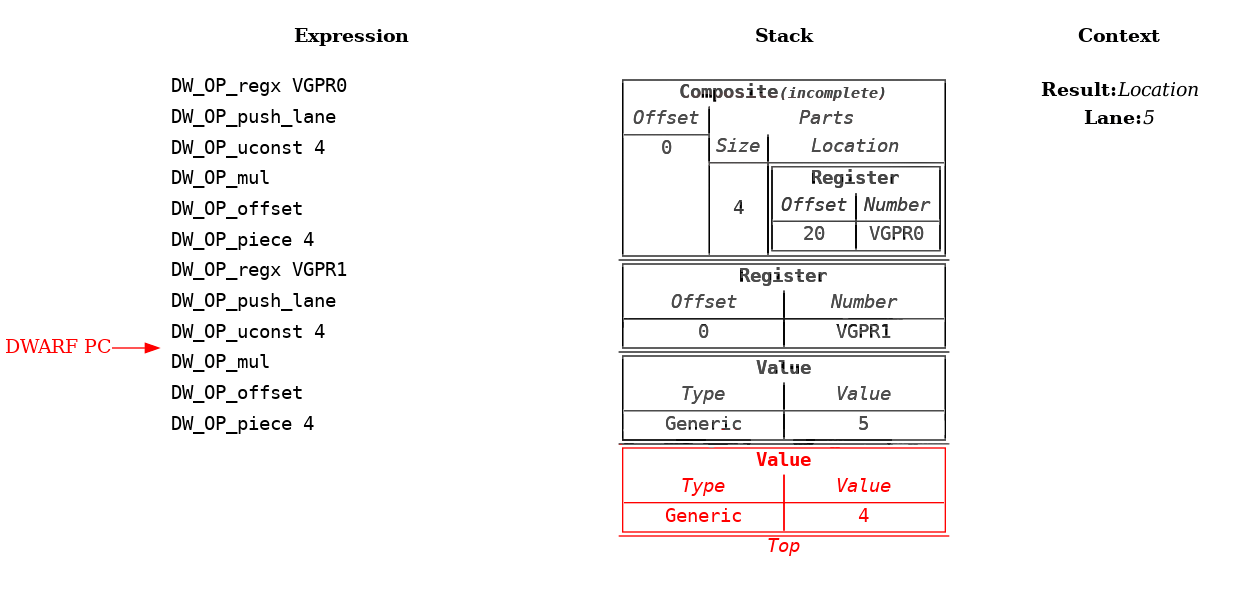

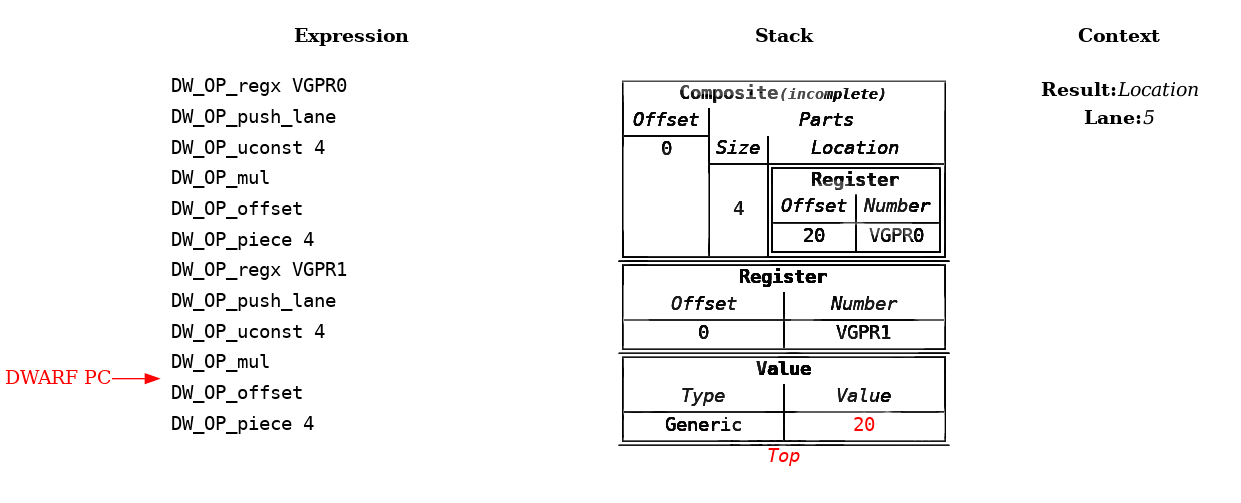

Source Language Variable Spread Across Multiple Vector Registers Example: Step 7

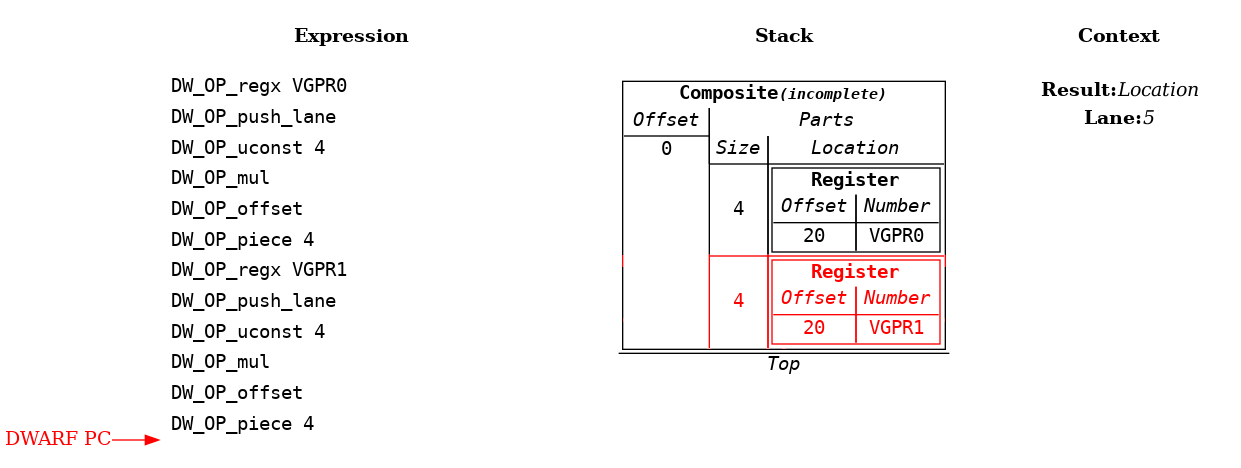

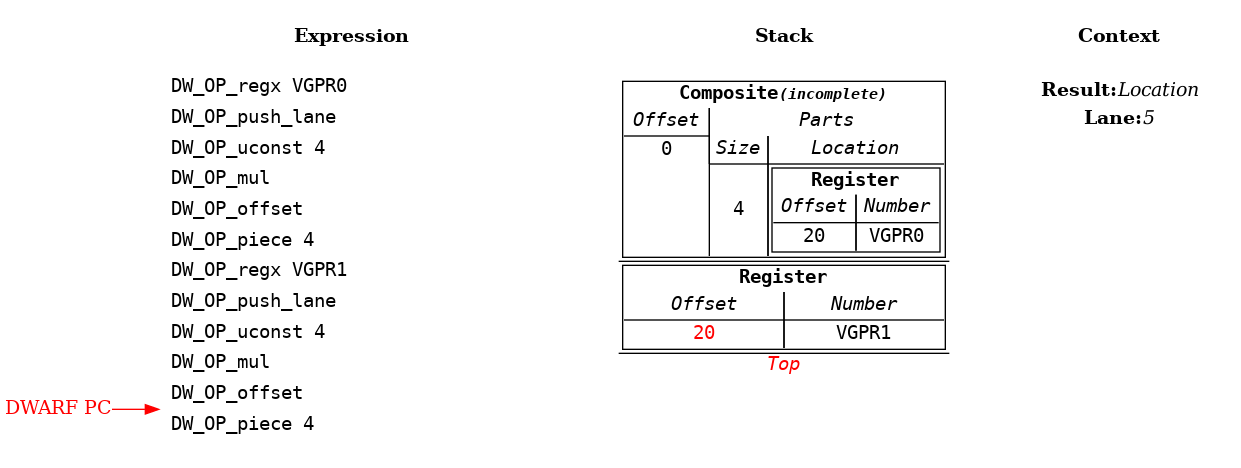

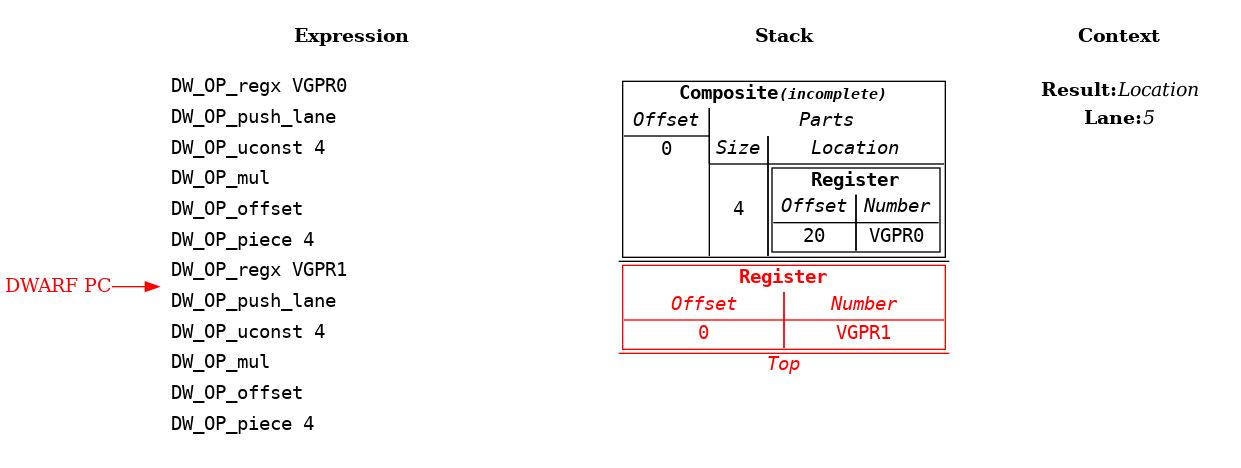

The rest of the expression does the same for VGPR1. However, when the DW_OP_piece is evaluated there is an incomplete composite on the stack. So the VGPR1 register location description is added as a second part.

Source Language Variable Spread Across Multiple Vector Registers Example: Step 8

Source Language Variable Spread Across Multiple Vector Registers Example: Step 9

Source Language Variable Spread Across Multiple Vector Registers Example: Step 10

Source Language Variable Spread Across Multiple Vector Registers Example: Step 11

Source Language Variable Spread Across Multiple Vector Registers Example: Step 12

Source Language Variable Spread Across Multiple Vector Registers Example: Step 13

At the end of the expression, if the top stack element is an incomplete composite location description, it is converted to a complete location description and returned as the result.

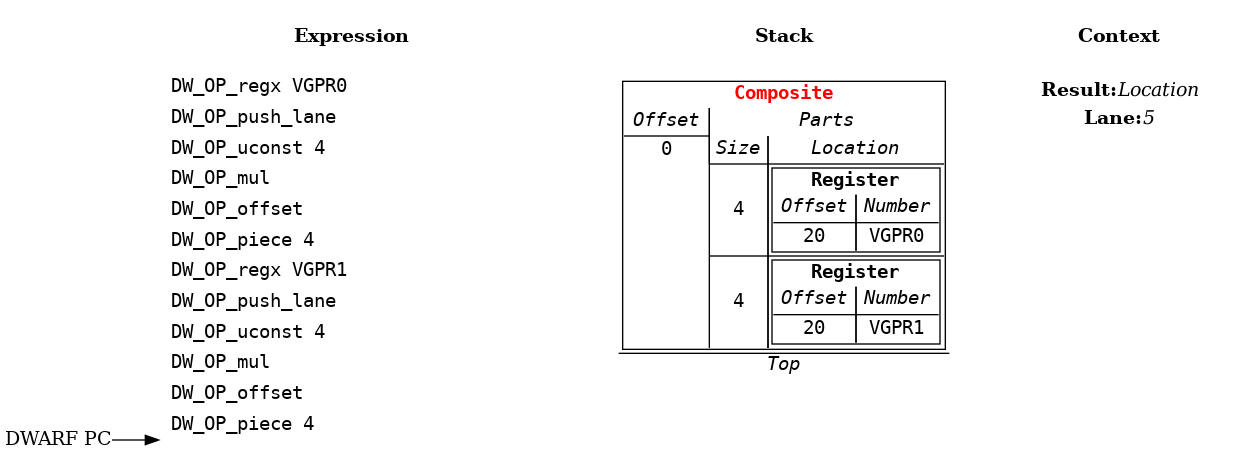

Source Language Variable Spread Across Multiple Vector Registers Example: Step 14

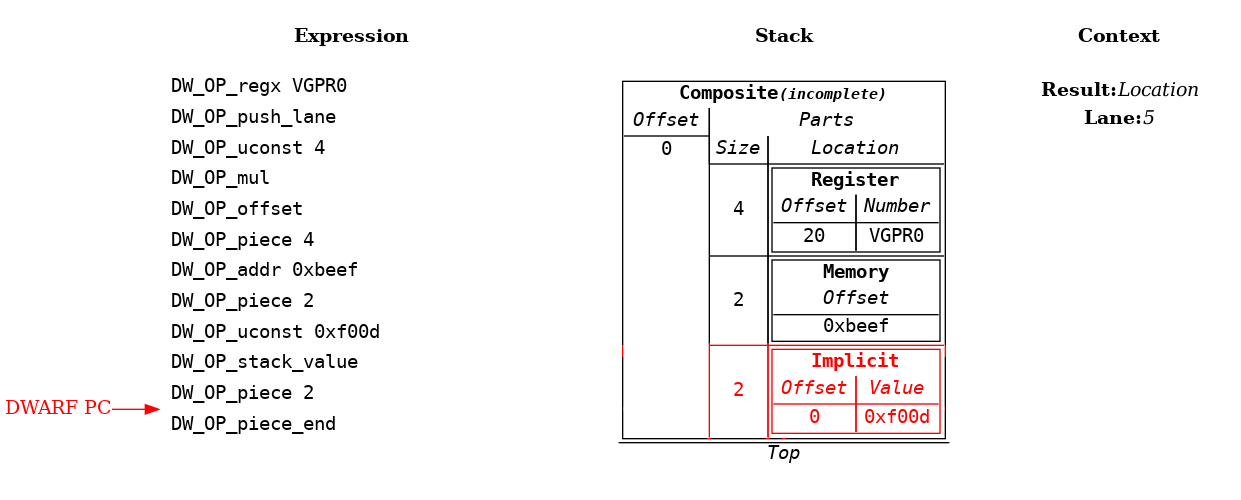

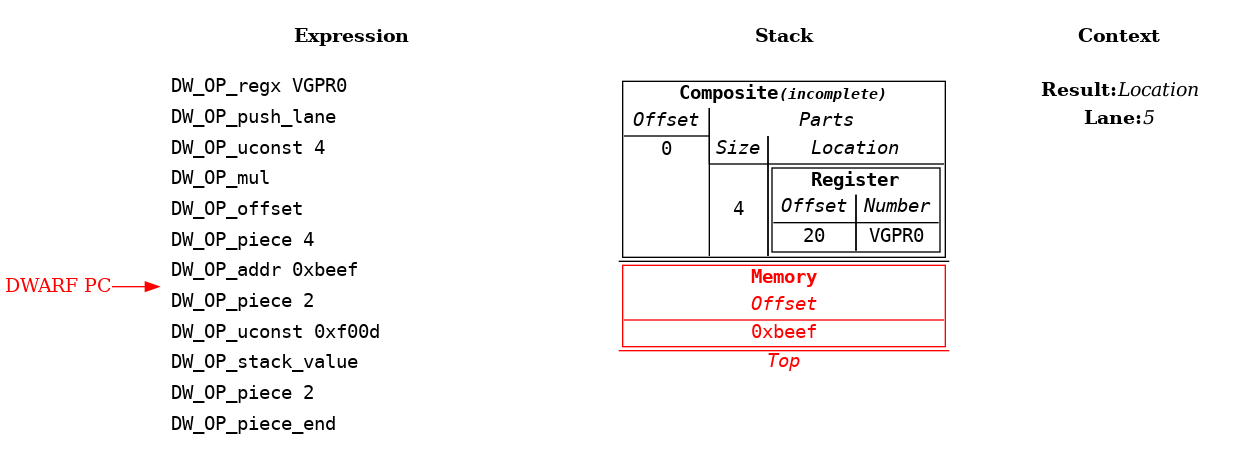

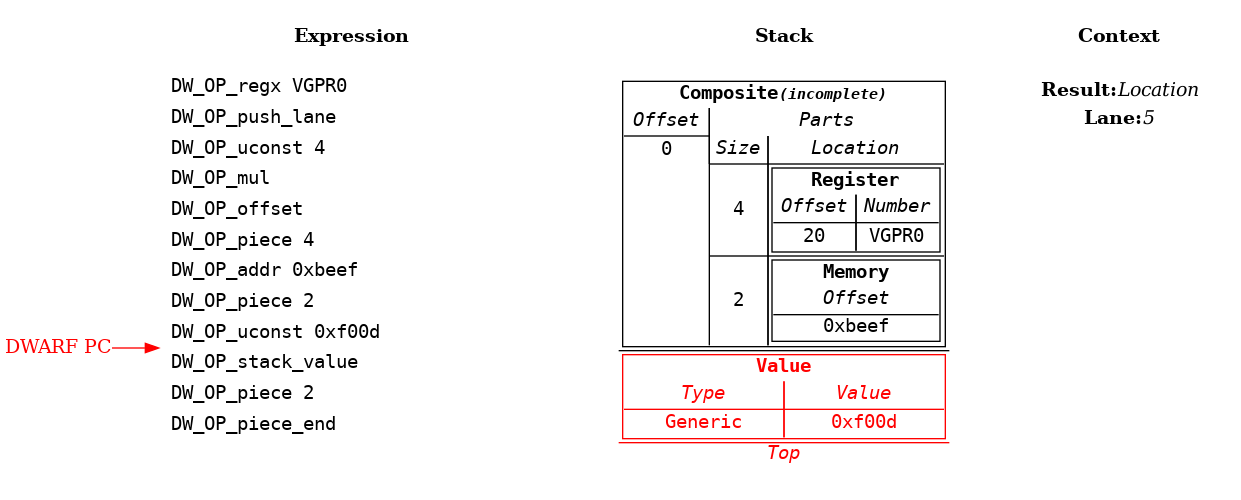

4.3.3 Source Language Variable Spread Across Multiple Kinds of Locations

This example is the same as the previous one, except the first 2 bytes of the second vector register have been spilled to memory, and the last 2 bytes have been proven to be a constant and optimized away.

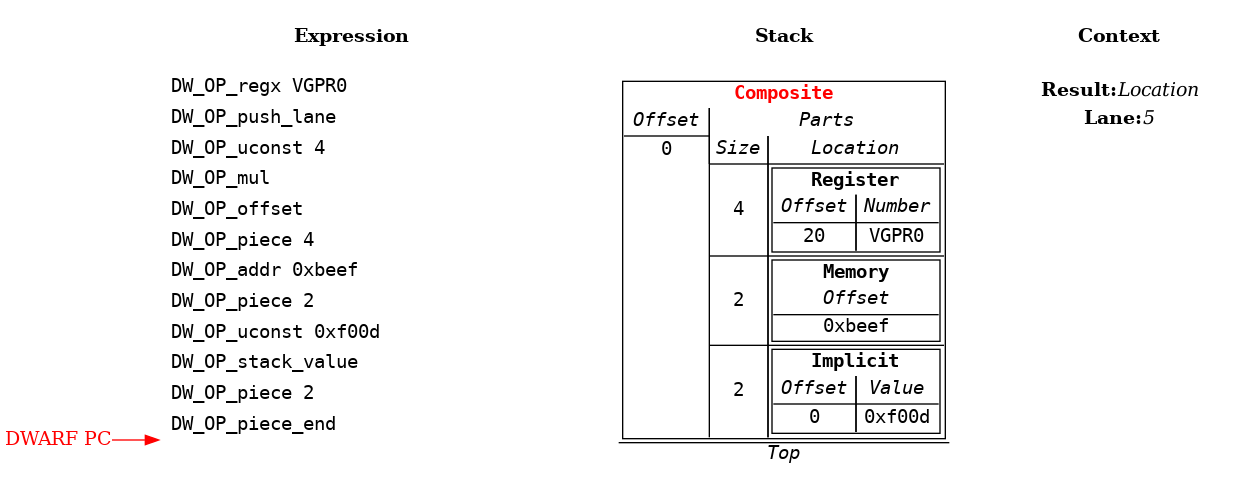

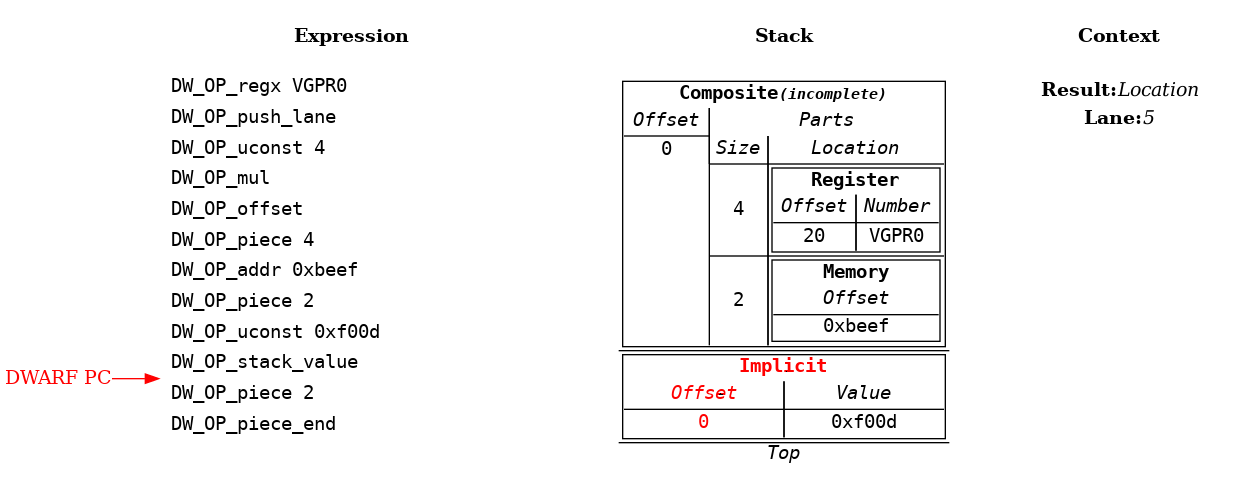

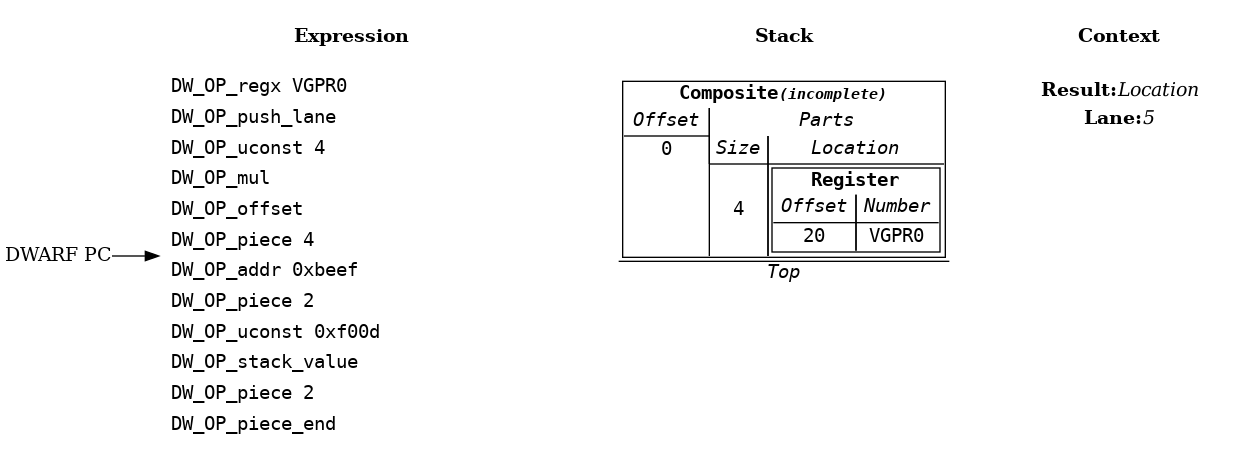

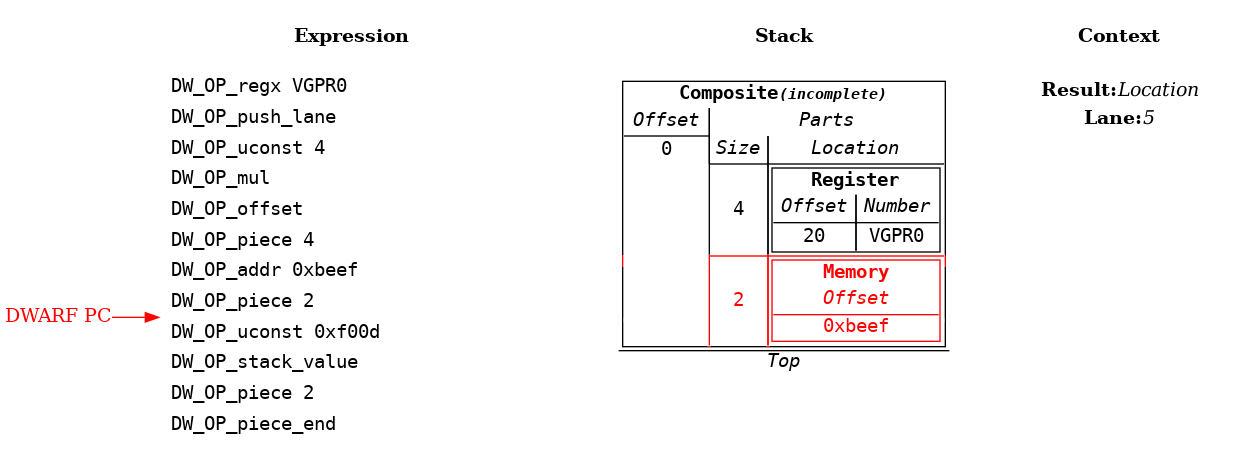

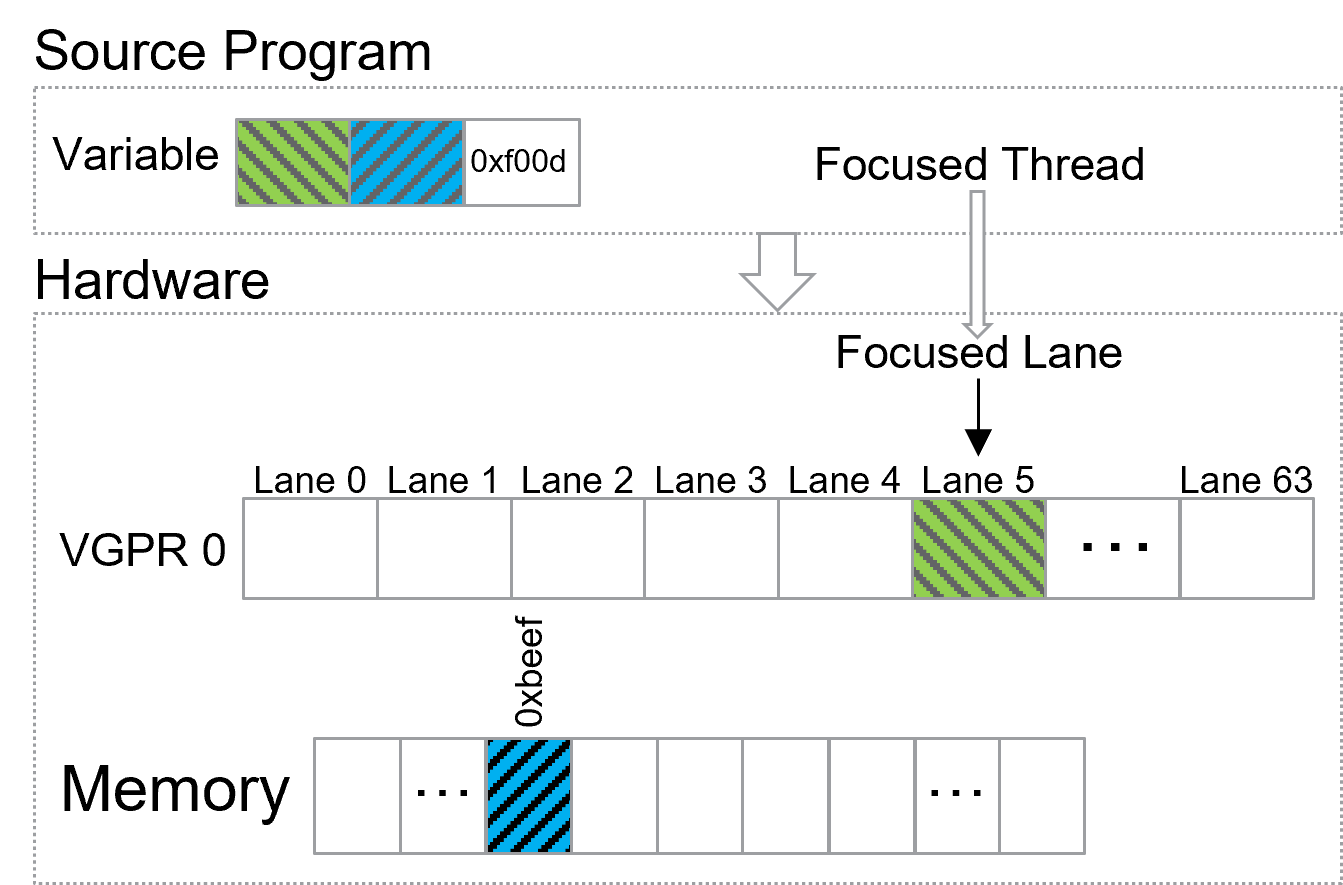

Source Language Variable Spread Across Multiple Kinds of Locations Example

DW_OP_regx VGPR0
DW_OP_push_lane
DW_OP_uconst 4
DW_OP_mul
DW_OP_offset
DW_OP_piece 4
DW_OP_addr 0xbeef
DW_OP_piece 2
DW_OP_uconst 0xf00d
DW_OP_stack_value
DW_OP_piece 2
DW_OP_piece_end

The first 6 operations are the same.

Source Language Variable Spread Across Multiple Kinds of Locations Example: Step 7

The DW_OP_addr operation pushes a global memory location description on the stack with an offset equal to the address.

Source Language Variable Spread Across Multiple Kinds of Locations Example: Step 8

The next DW_OP_piece adds the global memory location description as the next 2 byte part of the composite.

Source Language Variable Spread Across Multiple Kinds of Locations Example: Step 9

The DW_OP_uconst 0xf00d; DW_OP_stack_value pushes an implicit location description on the stack. The storage of the implicit location description is the representation of the value 0xf00d using the generic base type’s encoding, size, and byte ordering.

Source Language Variable Spread Across Multiple Kinds of Locations Example: Step 10

Source Language Variable Spread Across Multiple Kinds of Locations Example: Step 11

The final DW_OP_piece adds 2 bytes of the implicit location description as the third part of the composite location description.

Source Language Variable Spread Across Multiple Kinds of Locations Example: Step 12

The DW_OP_piece_end operation explicitly makes the incomplete composite location description into a complete location description. This allows a complete composite location description to be created on the stack that can be used as the location description of another following operation. For example, the DW_OP_offset can be applied to it. More practically, it permits creation of multiple composite location descriptions on the stack which can be used to pass arguments to a DWARF procedure using a DW_OP_call* operation. This can be beneficial to factor the incrementally creation of location descriptions.

Source Language Variable Spread Across Multiple Kinds of Locations Example: Step 12

4.3.4 Address Spaces

Heterogeneous devices can have multiple hardware supported address spaces which use specific hardware instructions to access them.

For example, GPUs that use SIMT execution may provide hardware support to access memory such that each lane can see a linear memory view, while the backing memory is actually being accessed in an interleaved manner so that the locations for each lanes Nth dword are contiguous. This minimizes cache lines read by the SIMT execution.

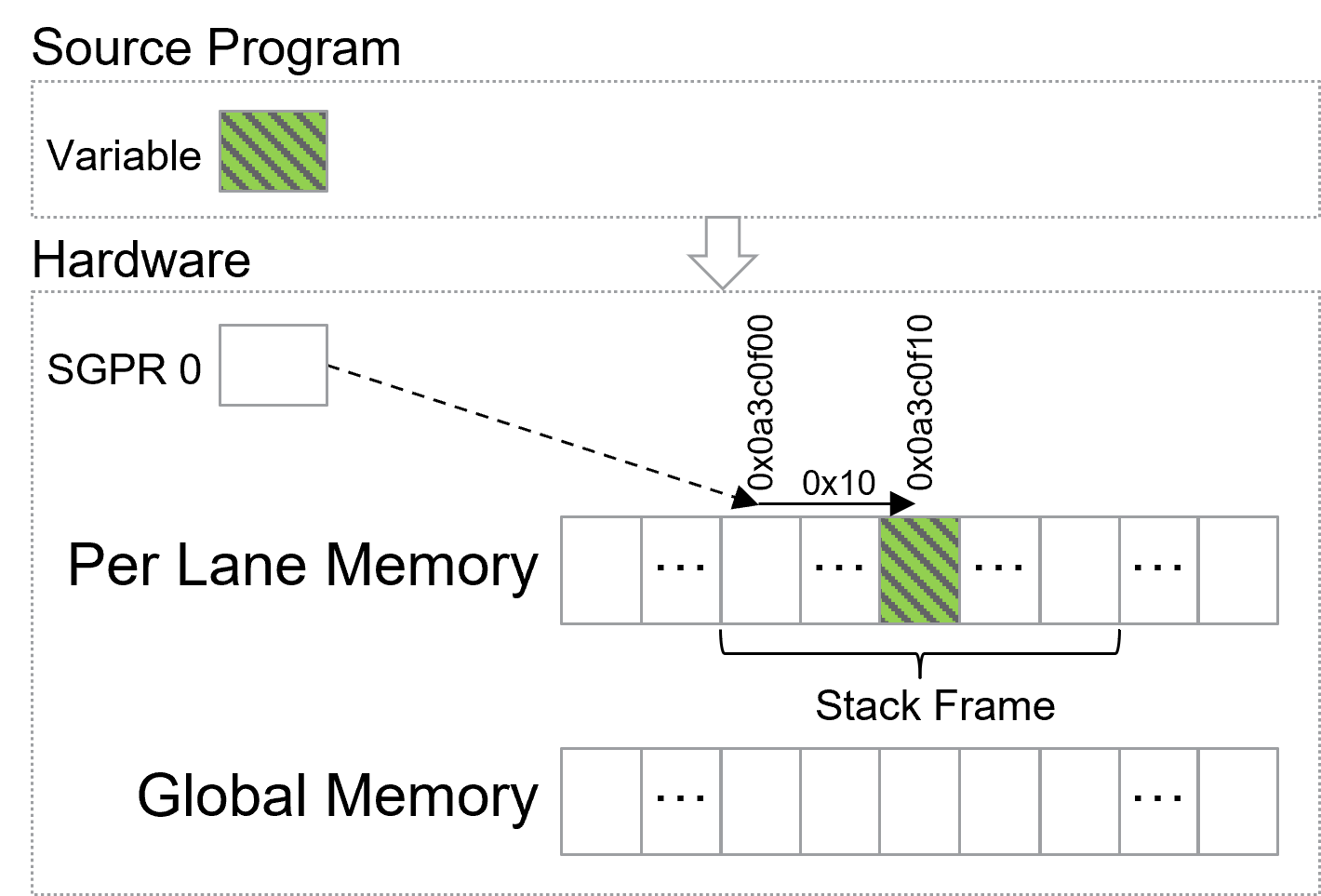

Address Spaces Example

The following expression defines the location of a source language variable that is allocated at offset 0x10 in the current subprograms stack frame. The subprogram stack frames are per lane and reside in an interleaved address space.

DW_OP_regval_type SGPR0 Generic
DW_OP_uconst 1
DW_OP_form_aspace_address
DW_OP_offset 0x10

Address Spaces Example: Step 1

The DW_OP_regval_type operation pushes the contents of SGPR0 as a generic value. This is the register that holds the address of the current stack frame.

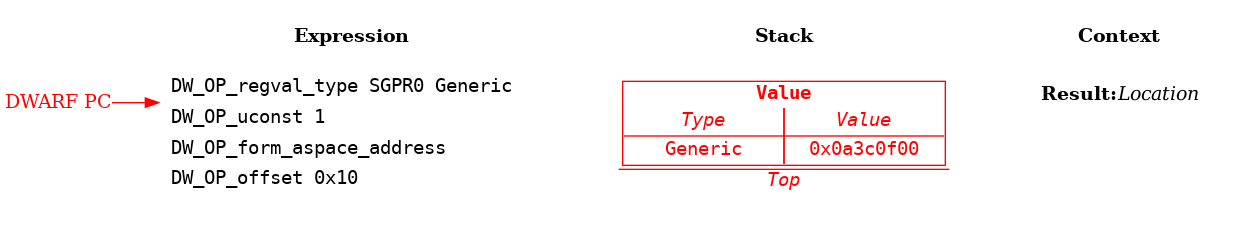

Address Spaces Example: Step 2

The DW_OP_uconst operation pushes the address space number. Each architecture defines the numbers it uses in DWARF. In this case, address space 1 is being used as the per lane memory.

Address Spaces Example: Step 3

The DW_OP_form_aspace_address operation pops a value and an address space number. Each address space is associated with a separate storage. A memory location description is pushed which refers to the address space’s storage, with an offset of the popped value.

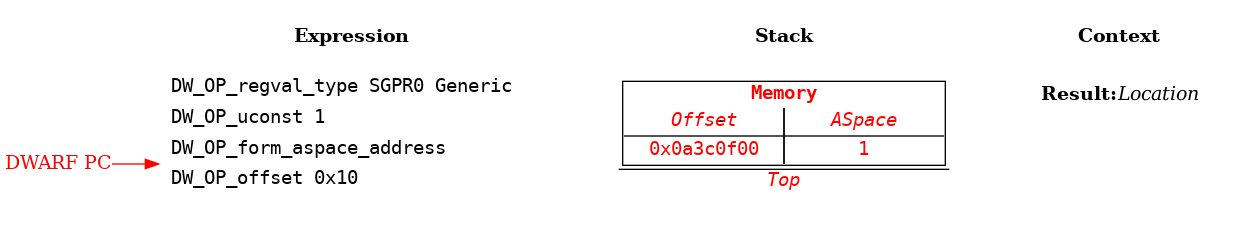

Address Spaces Example: Step 4

All operations that act on location descriptions work with memory locations regardless of their address space.

Every architecture defines address space 0 as the default global memory address space.

Generalizing memory location descriptions to include an address space component avoids having to create specialized operations to work with address spaces.

The source variable is at offset 0x10 in the stack frame. The DW_OP_offset operation works on memory location descriptions that have an address space just like for any other kind of location description.

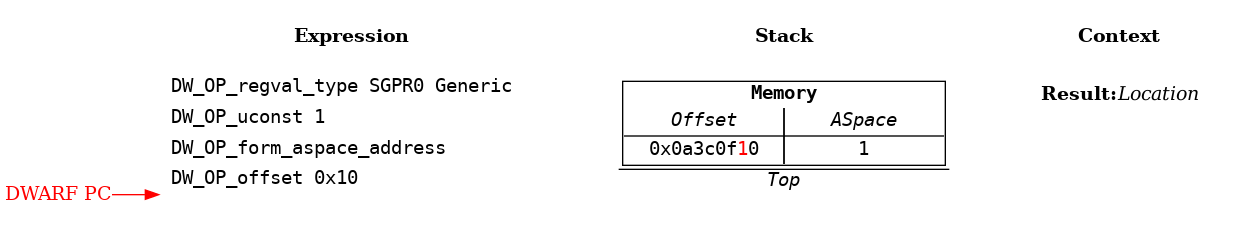

Address Spaces Example: Step 5

The only operations in DWARF 5 that take an address space are DW_OP_xderef*. They treat a value as the address in a specified address space, and read its contents. There is no operation to actually create a location description that references an address space. There is no way to include address space memory locations in parts of composite locations.

Since DW_OP_piece now takes any kind of location description for its pieces, it is now possible for parts of a composite to involve locations in different address spaces. For example, this can happen when parts of a source variable allocated in a register are spilled to a stack frame that resides in the non-global address space.

4.3.5 Bit Offsets

With the generalization of location descriptions on the stack, it is possible to define a DW_OP_bit_offset operation that adjusts the offset of any kind of location in terms of bits rather than bytes. The offset can be a runtime computed value. This is generally useful for any source language that support bit sized entities, and for registers that are not a whole number of bytes.

DWARF 5 only supports bit fields in composites using DW_OP_bit_piece. It does not support runtime computed offsets which can happen for bit field packed arrays. It is also not generally composable as it must be the last part of an expression.

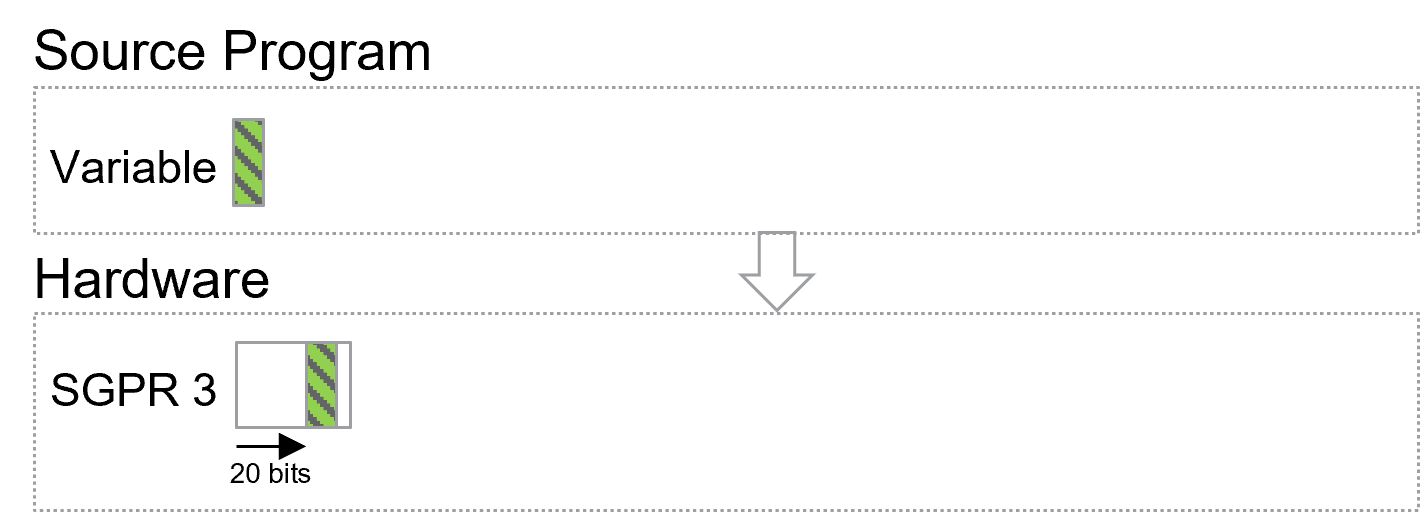

The following example defines a location description for a source variable that is allocated starting at bit 20 of a register. A similar expression could be used if the source variable was at a bit offset within memory or a particular address space, or if the offset is a runtime value.

Bit Offsets Example

DW_OP_regx SGPR3
DW_OP_uconst 20
DW_OP_bit_offset

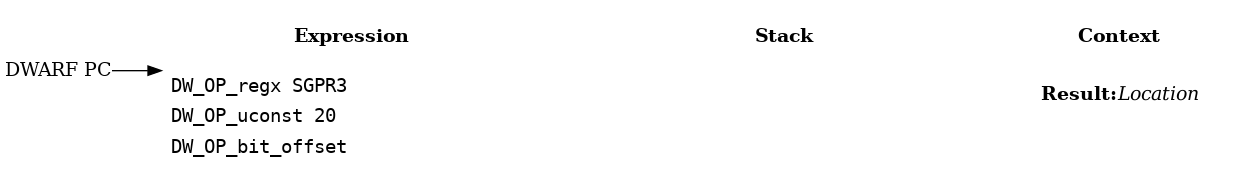

Bit Offsets Example: Step 1

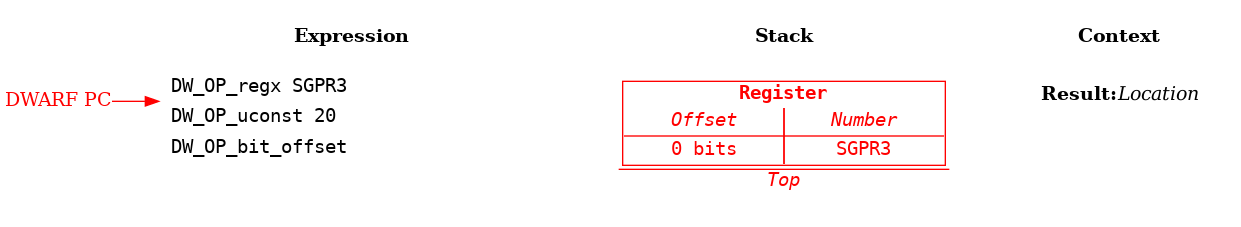

Bit Offsets Example: Step 2

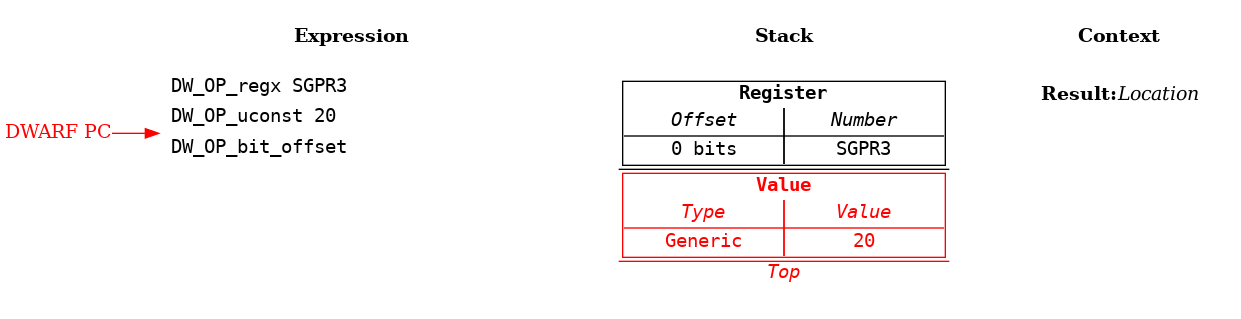

Bit Offsets Example: Step 3

The DW_OP_bit_offset operation pops a value and location description from the stack. It pushes the location description after updating its offset using the value as a bit count.

Bit Offsets Example: Step 4

The ordering of bits within a byte, like byte ordering, is defined by the target architecture. A base type could be extended to specify bit ordering in addition to byte ordering.

4.4 Call Frame Information (CFI)

DWARF defines call frame information (CFI) that can be used to virtually unwind the subprogram call stack. This involves determining the location where register values have been spilled. DWARF 5 limits these locations to either be registers or global memory. As shown in the earlier examples, heterogeneous devices may spill registers to parts of other registers, to non-global memory address spaces, or even a composite of different location kinds.

Therefore, the extension extends the CFI rules to support any kind of location description, and operations to create locations in address spaces.

4.5 Objects Not In Byte Aligned Global Memory

DWARF 5 only effectively supports byte aligned memory locations on the stack by using a global memory address as a proxy for a memory location description. This is a problem for attributes that define DWARF expressions that require the location of some source language entity that is not allocated in byte aligned global memory.

For example, the DWARF expression of the DW_AT_data_member_location attribute is evaluated with an initial stack containing the location of a type instance object. That object could be located in a register, in a non-global memory address space, be described by a composite location description, or could even be an implicit location description.

A similar problem exists for DWARF expressions that use the DW_OP_push_object_address operation. This operation pushes the location of a program object associated with the attribute that defines the expression.

Allowing any kind of location description on the stack permits the DW_OP_call* operations to be used to factor the creation of location descriptions. The inputs and outputs of the call are passed on the stack. For example, on GPUs an expression can be defined to describe the effective PC of inactive lanes of SIMT execution. This is naturally done by composing the result of expressions for each nested control flow region. This can be done by making each control flow region have its own DWARF procedure, and then calling it from the expressions of the nested control flow regions. The alternative is to make each control flow region have the complete expression which results in much larger DWARF and is less convenient to generate.

GPU compilers work hard to allocate objects in the larger number of registers to reduce memory accesses, they have to use different memory address spaces, and they perform optimizations that result in composites of these. Allowing operations to work with any kind of location description enables creating expressions that support all of these.

Full general support for bit fields and implicit locations benefits optimizations on any target.

4.6 Higher Order Operations

The generalization allows an elegant way to add higher order operations that create location descriptions out of other location descriptions in a general composable manner.

For example, a DW_OP_extend operation could create a composite location description out of a location description, an element size, and an element count. The resulting composite would effectively be a vector of element count elements with each element being the same location description of the specified bit size.

A DW_OP_select_bit_piece operation could create a composite location description out of two location descriptions, a bit mask value, and an element size. The resulting composite would effectively be a vector of elements, selecting from one of the two input locations according to the bit mask.

These could be used in the expression of an attribute that computes the effective PC of lanes of SIMT execution. The vector result efficiently computes the PC for each SIMT lane at once. The mask could be the hardware execution mask register that controls which SIMT lanes are executing. For active divergent lanes the vector element would be the current PC, and for inactive divergent lanes the PC would correspond to the source language line at which the lane is logically positioned.

Similarly, a DW_OP_overlay_piece operation could be defined that creates a composite location description out of two location descriptions, an offset value, and a size. The resulting composite would consist of parts that are equivalent to one of the location descriptions, but with the other location description replacing a slice defined by the offset and size. This could be used to efficiently express a source language array that has had a set of elements promoted into a vector register when executing a set of iterations of a loop in a SIMD manner.

4.7 Objects In Multiple Places

A compiler may allocate a source variable in stack frame memory, but for some range of code may promote it to a register. If the generated code does not change the register value, then there is no need to save it back to memory. Effectively, during that range, the source variable is in both memory and a register. If a consumer, such as a debugger, allows the user to change the value of the source variable in that PC range, then it would need to change both places.

DWARF 5 supports loclists which are able to specify the location of a source language entity is in different places at different PC locations. It can also express that a source language entity is in multiple places at the same time.

DWARF 5 defines operation expressions and loclists separately. In general, this is adequate as non-memory location descriptions can only be computed as the last step of an expression evaluation.

However, allowing location descriptions on the stack permits non-memory location descriptions to be used in the middle of expression evaluation. For example, the DW_OP_call* and DW_OP_implicit_pointer operations can result in evaluating the expression of a DW_AT_location attribute of a DIE. The DW_AT_location attribute allows the loclist form. So the result could include multiple location descriptions.

Similarly, the DWARF expression associated with attributes such as DW_AT_data_member_location that are evaluated with an initial stack containing a location description, or a DWARF operation expression that uses the DW_OP_push_object_address operation, may want to act on the result of another expression that returned a location description involving multiple places.

Therefore, the extension needs to define how expression operations that use those results will behave. The extension does this by generalizing the expression stack to allow an entry to be one or more single location descriptions. In doing this, it unifies the definitions of DWARF operation expressions and loclist expressions in a natural way.

All operations that act on location descriptions are extended to act on multiple single location descriptions. For example, the DW_OP_offset operation adds the offset to each single location description. The DW_OP_deref* operations simply read the storage of one of the single location descriptions, since multiple single location descriptions must all hold the same value. Similarly, if the evaluation of a DWARF expression results in multiple single location descriptions, the consumer can ensure any updates are done to all of them, and any reads can use any one of them.

5. Conclusion

A strength of DWARF is that it has generally sought to provide generalized composable solutions that address many problems, rather than solutions that only address one-off issues. This extension attempts to follow that tradition by defining a backwards compatible composable generalization that can address a significant family of issues. It addresses the specific issues present for heterogeneous computing devices, provides benefits for non-heterogeneous devices, and can help address a number of other previously reported issues.

A. Changes to DWARF Debugging Information Format Version 5

NOTE: This appendix provides changes relative to DWARF Version 5. It has been defined such that it is backwards compatible with DWARF Version 5. Non-normative text is shown in italics. The section numbers generally correspond to those in the DWARF Version 5 standard unless specified otherwise. Definitions are given to clarify how existing expression operations, CFI operations, and attributes behave with respect to generalized location descriptions that support multiple places.

NOTE: Notes are included to describe how the changes are to be applied to the DWARF Version 5 standard. They also describe rational and issues that may need further consideration.

A.2 General Description

A.2.5 DWARF Expressions

NOTE: This section, and its nested sections, replaces DWARF Version 5 section 2.5 and section 2.6. It is based on the text of the existing DWARF Version 5 standard.

DWARF expressions describe how to compute a value or specify a location.

The evaluation of a DWARF expression can provide the location of an object, the value of an array bound, the length of a dynamic string, the desired value itself, and so on.

If the evaluation of a DWARF expression does not encounter an error, then it can either result in a value (see 2.5.2 DWARF Expression Value) or a location description (see 2.5.3 DWARF Location Description). When a DWARF expression is evaluated, it may be specified whether a value or location description is required as the result kind.

If a result kind is specified, and the result of the evaluation does not match the specified result kind, then the implicit conversions described in 2.5.4.4.3 Memory Location Description Operations are performed if valid. Otherwise, the DWARF expression is ill-formed.

If the evaluation of a DWARF expression encounters an evaluation error, then the result is an evaluation error.

NOTE: Decided to define the concept of an evaluation error. An alternative is to introduce an undefined value base type in a similar way to location descriptions having an undefined location description. Then operations that encounter an evaluation error can return the undefined location description or value with an undefined base type.

All operations that act on values would return an undefined entity if given an undefined value. The expression would then always evaluate to completion, and can be tested to determine if it is an undefined entity.

However, this would add considerable additional complexity and does not match that GDB throws an exception when these evaluation errors occur.

If a DWARF expression is ill-formed, then the result is undefined.

The following sections detail the rules for when a DWARF expression is ill-formed or results in an evaluation error.

A DWARF expression can either be encoded as an operation expression (see 2.5.4 DWARF Operation Expressions), or as a location list expression (see 2.5.5 DWARF Location List Expressions).

A.2.5.1 DWARF Expression Evaluation Context

A DWARF expression is evaluated in a context that can include a number of context elements. If multiple context elements are specified then they must be self consistent or the result of the evaluation is undefined. The context elements that can be specified are:

  1. A current result kind

    The kind of result required by the DWARF expression evaluation. If specified it can be a location description or a value.

  2. A current thread

    The target architecture thread identifier of the source program thread of execution for which a user presented expression is currently being evaluated.

    It is required for operations that are related to target architecture threads.

    For example, the DW_OP_regval_type operation.

  3. A current call frame

    The target architecture call frame identifier. It identifies a call frame that corresponds to an active invocation of a subprogram in the current thread. It is identified by its address on the call stack. The address is referred to as the Canonical Frame Address (CFA). The call frame information is used to determine the CFA for the call frames of the current thread’s call stack (see 6.4 Call Frame Information).

    It is required for operations that specify target architecture registers to support virtual unwinding of the call stack.

    For example, the DW_OP_*reg* operations.

    If specified, it must be an active call frame in the current thread. Otherwise the result is undefined.

    If it is the currently executing call frame, then it is termed the top call frame.

  4. A current program location

    The target architecture program location corresponding to the current call frame of the current thread.

    The program location of the top call frame is the target architecture program counter for the current thread. The call frame information is used to obtain the value of the return address register to determine the program location of the other call frames (see 6.4 Call Frame Information).

    It is required for the evaluation of location list expressions to select amongst multiple program location ranges. It is required for operations that specify target architecture registers to support virtual unwinding of the call stack (see 6.4 Call Frame Information).

    If specified:

    • If the current call frame is the top call frame, it must be the current target architecture program location.
    • If the current call frame F is not the top call frame, it must be the program location associated with the call site in the current caller frame F that invoked the callee frame.
    • Otherwise the result is undefined.
  5. A current compilation unit

    The compilation unit debug information entry that contains the DWARF expression being evaluated.

    It is required for operations that reference debug information associated with the same compilation unit, including indicating if such references use the 32-bit or 64-bit DWARF format. It can also provide the default address space address size if no current target architecture is specified.

    For example, the DW_OP_constx and DW_OP_addrx operations.

    Note that this compilation unit may not be the same as the compilation unit determined from the loaded code object corresponding to the current program location. For example, the evaluation of the expression E associated with a DW_AT_location attribute of the debug information entry operand of the DW_OP_call* operations is evaluated with the compilation unit that contains E and not the one that contains the DW_OP_call* operation expression.

  6. A current target architecture

    The target architecture.

    It is required for operations that specify target architecture specific entities.

    For example, target architecture specific entities include DWARF register identifiers, DWARF address space identifiers, the default address space, and the address space address sizes.

    If specified:

    • If the current thread is specified, then the current target architecture must be the same as the target architecture of the current thread.
    • If the current compilation unit is specified, then the current target architecture default address space address size must be the same as the address_size field in the header of the current compilation unit and any associated entry in the .debug_aranges section.
    • If the current program location is specified, then the current target architecture must be the same as the target architecture of any line number information entry (see 6.2 Line Number Information) corresponding to the current program location.
    • If the current program location is specified, then the current target architecture default address space address size must be the same as the address_size field in the header of any entry corresponding to the current program location in the .debug_addr, .debug_line, .debug_rnglists, .debug_rnglists.dwo, .debug_loclists, and .debug_loclists.dwo sections.
    • Otherwise the result is undefined.
  7. A current object

    The location description of a program object.

    It is required for the DW_OP_push_object_address operation.

    For example, the DW_AT_data_location attribute on type debug information entries specifies the program object corresponding to a runtime descriptor as the current object when it evaluates its associated expression.

    The result is undefined if the location descriptor is invalid (see 3.5.3 DWARF Location Description).

  8. An initial stack

    This is a list of values or location descriptions that will be pushed on the operation expression evaluation stack in the order provided before evaluation of an operation expression starts.

    Some debugger information entries have attributes that evaluate their DWARF expression value with initial stack entries. In all other cases the initial stack is empty.

    The result is undefined if any location descriptors are invalid (see 3.5.3 DWARF Location Description).

If the evaluation requires a context element that is not specified, then the result of the evaluation is an error.

A DWARF expression for a location description may be able to be evaluated without a thread, call frame, program location, or architecture context. For example, the location of a global variable may be able to be evaluated without such context. If the expression evaluates with an error then it may indicate the variable has been optimized and so requires more context.

The DWARF expression for call frame information (see 6.4 Call Frame Information) operations are restricted to those that do not require the compilation unit context to be specified.

The DWARF is ill-formed if all the address_size fields in the headers of all the entries in the .debug_info, .debug_addr, .debug_line, .debug_rnglists, .debug_rnglists.dwo, .debug_loclists, and .debug_loclists.dwo sections corresponding to any given program location do not match.

A.2.5.2 DWARF Expression Value

A value has a type and a literal value. It can represent a literal value of any supported base type of the target architecture. The base type specifies the size, encoding, and endianity of the literal value.

NOTE: It may be desirable to add an implicit pointer base type encoding. It would be used for the type of the value that is produced when the DW_OP_deref* operation retrieves the full contents of an implicit pointer location storage created by the DW_OP_implicit_pointer operation. The literal value would record the debugging information entry and byte displacement specified by the associated DW_OP_implicit_pointer operation.

There is a distinguished base type termed the generic type, which is an integral type that has the size of an address in the target architecture default address space, a target architecture defined endianity, and unspecified signedness.

The generic type is the same as the unspecified type used for stack operations defined in DWARF Version 4 and before.

An integral type is a base type that has an encoding of DW_ATE_signed, DW_ATE_signed_char, DW_ATE_unsigned, DW_ATE_unsigned_char, DW_ATE_boolean, or any target architecture defined integral encoding in the inclusive range DW_ATE_lo_user to DW_ATE_hi_user.

NOTE: It is unclear if DW_ATE_address is an integral type. GDB does not seem to consider it as integral.

A.2.5.3 DWARF Location Description

Debugging information must provide consumers a way to find the location of program variables, determine the bounds of dynamic arrays and strings, and possibly to find the base address of a subprogram’s call frame or the return address of a subprogram. Furthermore, to meet the needs of recent computer architectures and optimization techniques, debugging information must be able to describe the location of an object whose location changes over the object’s lifetime, and may reside at multiple locations simultaneously during parts of an object’s lifetime.

Information about the location of program objects is provided by location descriptions.

Location descriptions can consist of one or more single location descriptions.

A single location description specifies the location storage that holds a program object and a position within the location storage where the program object starts. The position within the location storage is expressed as a bit offset relative to the start of the location storage.

A location storage is a linear stream of bits that can hold values. Each location storage has a size in bits and can be accessed using a zero-based bit offset. The ordering of bits within a location storage uses the bit numbering and direction conventions that are appropriate to the current language on the target architecture.

There are five kinds of location storage:

  1. memory location storage

    Corresponds to the target architecture memory address spaces.

  2. register location storage

    Corresponds to the target architecture registers.

  3. implicit location storage

    Corresponds to fixed values that can only be read.

  4. undefined location storage

    Indicates no value is available and therefore cannot be read or written.

  5. composite location storage

    Allows a mixture of these where some bits come from one location storage and some from another location storage, or from disjoint parts of the same location storage.

NOTE: It may be better to add an implicit pointer location storage kind used by the DW_OP_implicit_pointer operation. It would specify the debugger information entry and byte offset provided by the operations.

Location descriptions are a language independent representation of addressing rules.

  • They can be the result of evaluating a debugger information entry attribute that specifies an operation expression of arbitrary complexity. In this usage they can describe the location of an object as long as its lifetime is either static or the same as the lexical block (see 3.5 Lexical Block Entries) that owns it, and it does not move during its lifetime.
  • They can be the result of evaluating a debugger information entry attribute that specifies a location list expression. In this usage they can describe the location of an object that has a limited lifetime, changes its location during its lifetime, or has multiple locations over part or all of its lifetime.

If a location description has more than one single location description, the DWARF expression is ill-formed if the object value held in each single location description’s position within the associated location storage is not the same value, except for the parts of the value that are uninitialized.

A location description that has more than one single location description can only be created by a location list expression that has overlapping program location ranges, or certain expression operations that act on a location description that has more than one single location description. There are no operation expression operations that can directly create a location description with more than one single location description.

A location description with more than one single location description can be used to describe objects that reside in more than one piece of storage at the same time. An object may have more than one location as a result of optimization. For example, a value that is only read may be promoted from memory to a register for some region of code, but later code may revert to reading the value from memory as the register may be used for other purposes. For the code region where the value is in a register, any change to the object value must be made in both the register and the memory so both regions of code will read the updated value.

A consumer of a location description with more than one single location description can read the object’s value from any of the single location descriptions (since they all refer to location storage that has the same value), but must write any changed value to all the single location descriptions.

Updating a location description L by a bit offset B is defined as adding the value of B to the bit offset of each single location description SL of L. It is an evaluation error if the updated bit offset of any SL is less than 0 or greater than or equal to the size of the location storage specified by SL.

The evaluation of an expression may require context elements to create a location description. If such a location description is accessed, the storage it denotes is that associated with the context element values specified when the location description was created, which may differ from the context at the time it is accessed.

For example, creating a register location description requires the thread context: the location storage is for the specified register of that thread. Creating a memory location description for an address space may required a thread context: the location storage is the memory associated with that thread.

If any of the context elements required to create a location description change, the location description becomes invalid and accessing it is undefined.

Examples of context that can invalidate a location description are:

  • The thread context is required and execution causes the thread to terminate.
  • The call frame context is required and further execution causes the call frame to return to the calling frame.
  • The program location is required and further execution of the thread occurs. That could change the location list entry or call frame information entry that applies.
  • An operation uses call frame information:
    • Any of the frames used in the virtual call frame unwinding return.
    • The top call frame is used, the program location is used to select the call frame information entry, and further execution of the thread occurs.

A DWARF expression can be used to compute a location description for an object. A subsequent DWARF expression evaluation can be given the object location description as the object context or initial stack context to compute a component of the object. The final result is undefined if the object location description becomes invalid between the two expression evaluations.

A change of a thread’s program location may not make a location description invalid, yet may still render it as no longer meaningful. Accessing such a location description, or using it as the object context or initial stack context of an expression evaluation, may produce an undefined result.

For example, a location description may specify a register that no longer holds the intended program object after a program location change. One way to avoid such problems is to recompute location descriptions associated with threads when their program locations change.

A.2.5.4 DWARF Operation Expressions

An operation expression is comprised of a stream of operations, each consisting of an opcode followed by zero or more operands. The number of operands is implied by the opcode.

Operations represent a postfix operation on a simple stack machine. Each stack entry can hold either a value or a location description. Operations can act on entries on the stack, including adding entries and removing entries. If the kind of a stack entry does not match the kind required by the operation and is not implicitly convertible to the required kind (see 2.5.4.4.3 Memory Location Description Operations), then the DWARF operation expression is ill-formed.

Evaluation of an operation expression starts with an empty stack on which the entries from the initial stack provided by the context are pushed in the order provided. Then the operations are evaluated, starting with the first operation of the stream. Evaluation continues until either an operation has an evaluation error, or until one past the last operation of the stream is reached.

The result of the evaluation is:

  • If an operation has an evaluation error, or an operation evaluates an expression that has an evaluation error, then the result is an evaluation error.

  • If the current result kind specifies a location description, then:

    • If the stack is empty, the result is a location description with one undefined location description.

      This rule is for backwards compatibility with DWARF Version 5 which uses an empty operation expression for this purpose.

    • If the top stack entry is a location description, or can be converted to one (see 2.5.4.4.3 Memory Location Description Operations), then the result is that, possibly converted, location description. Any other entries on the stack are discarded.

    • Otherwise the DWARF expression is ill-formed.

      NOTE: Could define this case as returning an implicit location description as if the DW_OP_implicit operation is performed.

  • If the current result kind specifies a value, then:

    • If the top stack entry is a value, or can be converted to one (see 2.5.4.4.3 Memory Location Description Operations), then the result is that, possibly converted, value. Any other entries on the stack are discarded.
    • Otherwise the DWARF expression is ill-formed.
  • If the current result kind is not specified, then:

    • If the stack is empty, the result is a location description with one undefined location description.

      This rule is for backwards compatibility with DWARF Version 5 which uses an empty operation expression for this purpose.

      NOTE: This rule is consistent with the rule above for when a location description is requested. However, GDB appears to report this as an error and no GDB tests appear to cause an empty stack for this case.

    • Otherwise, the top stack entry is returned. Any other entries on the stack are discarded.

An operation expression is encoded as a byte block with some form of prefix that specifies the byte count. It can be used:

A.2.5.4.1 Stack Operations
NOTE: This section replaces DWARF Version 5 section 2.5.1.3.

The following operations manipulate the DWARF stack. Operations that index the stack assume that the top of the stack (most recently added entry) has index 0. They allow the stack entries to be either a value or location description.

If any stack entry accessed by a stack operation is an incomplete composite location description (see 2.5.4.4.6 Composite Location Description Operations), then the DWARF expression is ill-formed.

NOTE: These operations now support stack entries that are values and location descriptions.
NOTE: If it is desired to also make them work with incomplete composite location descriptions, then would need to define that the composite location storage specified by the incomplete composite location description is also replicated when a copy is pushed. This ensures that each copy of the incomplete composite location description can update the composite location storage they specify independently.
  1. DW_OP_dup

    DW_OP_dup duplicates the stack entry at the top of the stack.

  2. DW_OP_drop

    DW_OP_drop pops the stack entry at the top of the stack and discards it.

  3. DW_OP_pick

    DW_OP_pick has a single unsigned 1-byte operand that represents an index I. A copy of the stack entry with index I is pushed onto the stack.

  4. DW_OP_over

    DW_OP_over pushes a copy of the entry with index 1.

    This is equivalent to a DW_OP_pick 1 operation.

  5. DW_OP_swap

    DW_OP_swap swaps the top two stack entries. The entry at the top of the stack becomes the second stack entry, and the second stack entry becomes the top of the stack.

  6. DW_OP_rot

    DW_OP_rot rotates the first three stack entries. The entry at the top of the stack becomes the third stack entry, the second entry becomes the top of the stack, and the third entry becomes the second entry.

A.2.5.4.2 Control Flow Operations
NOTE: This section replaces DWARF Version 5 section 2.5.1.5.

The following operations provide simple control of the flow of a DWARF operation expression.

  1. DW_OP_nop

    DW_OP_nop is a place holder. It has no effect on the DWARF stack entries.

  2. DW_OP_le, DW_OP_ge, DW_OP_eq, DW_OP_lt, DW_OP_gt, DW_OP_ne

    NOTE: The same as in DWARF Version 5 section 2.5.1.5.

  3. DW_OP_skip

    DW_OP_skip is an unconditional branch. Its single operand is a 2-byte signed integer constant. The 2-byte constant is the number of bytes of the DWARF expression to skip forward or backward from the current operation, beginning after the 2-byte constant.

    If the updated position is at one past the end of the last operation, then the operation expression evaluation is complete.

    Otherwise, the DWARF expression is ill-formed if the updated operation position is not in the range of the first to last operation inclusive, or not at the start of an operation.

  4. DW_OP_bra

    DW_OP_bra is a conditional branch. Its single operand is a 2-byte signed integer constant. This operation pops the top of stack. If the value popped is not the constant 0, the 2-byte constant operand is the number of bytes of the DWARF operation expression to skip forward or backward from the current operation, beginning after the 2-byte constant.

    If the updated position is at one past the end of the last operation, then the operation expression evaluation is complete.

    Otherwise, the DWARF expression is ill-formed if the updated operation position is not in the range of the first to last operation inclusive, or not at the start of an operation.

  5. DW_OP_call2, DW_OP_call4, DW_OP_call_ref

    DW_OP_call2, DW_OP_call4, and DW_OP_call_ref perform DWARF procedure calls during evaluation of a DWARF expression.

    DW_OP_call2 and DW_OP_call4, have one operand that is, respectively, a 2-byte or 4-byte unsigned offset DR that represents the byte offset of a debugging information entry D relative to the beginning of the current compilation unit.

    DW_OP_call_ref has one operand that is a 4-byte unsigned value in the 32-bit DWARF format, or an 8-byte unsigned value in the 64-bit DWARF format, that represents the byte offset DR of a debugging information entry D relative to the beginning of the .debug_info section that contains the current compilation unit. D may not be in the current compilation unit.

    NOTE: DWARF Version 5 states that DR can be an offset in a .debug_info section other than the one that contains the current compilation unit. It states that relocation of references from one executable or shared object file to another must be performed by the consumer. But given that DR is defined as an offset in a .debug_info section this seems impossible. If DR was defined as an implementation defined value, then the consumer could choose to interpret the value in an implementation defined manner to reference a debug information in another executable or shared object.

    In ELF the .debug_info section is in a non-PT_LOAD segment so standard dynamic relocations cannot be used. But even if they were loaded segments and dynamic relocations were used, DR would need to be the address of D, not an offset in a .debug_info section. That would also need DR to be the size of a global address. So it would not be possible to use the 32-bit DWARF format in a 64-bit global address space. In addition, the consumer would need to determine what executable or shared object the relocated address was in so it could determine the containing compilation unit.

    GDB only interprets DR as an offset in the .debug_info section that contains the current compilation unit.

    This comment also applies to DW_OP_implicit_pointer.

    Operand interpretation of DW_OP_call2, DW_OP_call4, and DW_OP_call_ref is exactly like that for DW_FORM_ref2, DW_FORM_ref4, and DW_FORM_ref_addr, respectively.

    The call operation is evaluated by:

    • If D has a DW_AT_location attribute that is encoded as a exprloc that specifies an operation expression E, then execution of the current operation expression continues from the first operation of E. Execution continues until one past the last operation of E is reached, at which point execution continues with the operation following the call operation. The operations of E are evaluated with the same current context, except current compilation unit is the one that contains D and the stack is the same as that being used by the call operation. After the call operation has been evaluated, the stack is therefore as it is left by the evaluation of the operations of E. Since E is evaluated on the same stack as the call operation, E can use, and/or remove entries already on the stack, and can add new entries to the stack.

      Values on the stack at the time of the call may be used as parameters by the called expression and values left on the stack by the called expression may be used as return values by prior agreement between the calling and called expressions.

    • If D has a DW_AT_location attribute that is encoded as a loclist or loclistsptr, then the specified location list expression E is evaluated. The evaluation of E uses the current context, except the result kind is a location description, the compilation unit is the one that contains D, and the initial stack is empty. The location description result is pushed on the stack.

      NOTE: This rule avoids having to define how to execute a matched location list entry operation expression on the same stack as the call when there are multiple matches. But it allows the call to obtain the location description for a variable or formal parameter which may use a location list expression.

      An alternative is to treat the case when D has a DW_AT_location attribute that is encoded as a loclist or loclistsptr, and the specified location list expression E’ matches a single location list entry with operation expression E, the same as the exprloc case and evaluate on the same stack.

      But this is not attractive as if the attribute is for a variable that happens to end with a non-singleton stack, it will not simply put a location description on the stack. Presumably the intent of using DW_OP_call* on a variable or formal parameter debugger information entry is to push just one location description on the stack. That location description may have more than one single location description.

      The previous rule for exprloc also has the same problem, as normally a variable or formal parameter location expression may leave multiple entries on the stack and only return the top entry.

      GDB implements DW_OP_call* by always executing E on the same stack. If the location list has multiple matching entries, it simply picks the first one and ignores the rest. This seems fundamentally at odds with the desire to support multiple places for variables.

      So, it feels like DW_OP_call* should both support pushing a location description on the stack for a variable or formal parameter, and also support being able to execute an operation expression on the same stack. Being able to specify a different operation expression for different program locations seems a desirable feature to retain.

      A solution to that is to have a distinct DW_AT_proc attribute for the DW_TAG_dwarf_procedure debugging information entry. Then the DW_AT_location attribute expression is always executed separately and pushes a location description (that may have multiple single location descriptions), and the DW_AT_proc attribute expression is always executed on the same stack and can leave anything on the stack.

      The DW_AT_proc attribute could have the new classes exprproc, loclistproc, and loclistsptrproc to indicate that the expression is executed on the same stack. exprproc is the same encoding as exprloc. loclistproc and loclistsptrproc are the same encoding as their non-proc counterparts, except the DWARF is ill-formed if the location list does not match exactly one location list entry and a default entry is required. These forms indicate explicitly that the matched single operation expression must be executed on the same stack. This is better than ad hoc special rules for loclistproc and loclistsptrproc which are currently clearly defined to always return a location description. The producer then explicitly indicates the intent through the attribute classes.

      Such a change would be a breaking change for how GDB implements DW_OP_call*. However, are the breaking cases actually occurring in practice? GDB could implement the current approach for DWARF Version 5, and the new semantics for DWARF Version 6 which has been done for some other features.

      Another option is to limit the execution to be on the same stack only to the evaluation of an expression E that is the value of a DW_AT_location attribute of a DW_TAG_dwarf_procedure debugging information entry. The DWARF would be ill-formed if E is a location list expression that does not match exactly one location list entry. In all other cases the evaluation of an expression E that is the value of a DW_AT_location attribute would evaluate E with the current context, except the result kind is a location description, the compilation unit is the one that contains D, and the initial stack is empty. The location description result is pushed on the stack.

    • If D has a DW_AT_const_value attribute with a value V, then it is as if a DW_OP_implicit_value V operation was executed.

      This allows a call operation to be used to compute the location description for any variable or formal parameter regardless of whether the producer has optimized it to a constant. This is consistent with the DW_OP_implicit_pointer operation.

      NOTE: Alternatively, could deprecate using DW_AT_const_value for DW_TAG_variable and DW_TAG_formal_parameter debugger information entries that are constants and instead use DW_AT_location with an operation expression that results in a location description with one implicit location description. Then this rule would not be required.

    • Otherwise, there is no effect and no changes are made to the stack.

      NOTE: In DWARF Version 5, if D does not have a DW_AT_location then DW_OP_call* is defined to have no effect. It is unclear that this is the right definition as a producer should be able to rely on using DW_OP_call* to get a location description for any non-DW_TAG_dwarf_procedure debugging information entries. Also, the producer should not be creating DWARF with DW_OP_call* to a DW_TAG_dwarf_procedure that does not have a DW_AT_location attribute. So, should this case be defined as an ill-formed DWARF expression?

    The DW_TAG_dwarf_procedure debugging information entry can be used to define DWARF procedures that can be called.

A.2.5.4.3 Value Operations

This section describes the operations that push values on the stack.

Each value stack entry has a type and a literal value. It can represent a literal value of any supported base type of the target architecture. The base type specifies the size, encoding, and endianity of the literal value.

The base type of value stack entries can be the distinguished generic type.

A.2.5.4.3.1 Literal Operations
NOTE: This section replaces DWARF Version 5 section 2.5.1.1.

The following operations all push a literal value onto the DWARF stack.

Operations other than DW_OP_const_type push a value V with the generic type. If V is larger than the generic type, then V is truncated to the generic type size and the low-order bits used.

  1. DW_OP_lit0, DW_OP_lit1, …, DW_OP_lit31

    DW_OP_lit<N> operations encode an unsigned literal value N from 0 through 31, inclusive. They push the value N with the generic type.

  2. DW_OP_const1u, DW_OP_const2u, DW_OP_const4u, DW_OP_const8u

    DW_OP_const<N>u operations have a single operand that is a 1, 2, 4, or 8-byte unsigned integer constant U, respectively. They push the value U with the generic type.

  3. DW_OP_const1s, DW_OP_const2s, DW_OP_const4s, DW_OP_const8s

    DW_OP_const<N>s operations have a single operand that is a 1, 2, 4, or 8-byte signed integer constant S, respectively. They push the value S with the generic type.

  4. DW_OP_constu

    DW_OP_constu has a single unsigned LEB128 integer operand N. It pushes the value N with the generic type.

  5. DW_OP_consts

    DW_OP_consts has a single signed LEB128 integer operand N. It pushes the value N with the generic type.

  6. DW_OP_constx

    DW_OP_constx has a single unsigned LEB128 integer operand that represents a zero-based index into the .debug_addr section relative to the value of the DW_AT_addr_base attribute of the associated compilation unit. The value N in the .debug_addr section has the size of the generic type. It pushes the value N with the generic type.

    The DW_OP_constx operation is provided for constants that require link-time relocation but should not be interpreted by the consumer as a relocatable address (for example, offsets to thread-local storage).

  7. DW_OP_const_type

    DW_OP_const_type has three operands. The first is an unsigned LEB128 integer DR that represents the byte offset of a debugging information entry D relative to the beginning of the current compilation unit, that provides the type T of the constant value. The second is a 1-byte unsigned integral constant S. The third is a block of bytes B, with a length equal to S.

    TS is the bit size of the type T. The least significant TS bits of B are interpreted as a value V of the type D. It pushes the value V with the type D.

    The DWARF is ill-formed if D is not a DW_TAG_base_type debugging information entry in the current compilation unit, or if TS divided by 8 (the byte size) and rounded up to a whole number is not equal to S.

    While the size of the byte block B can be inferred from the type D definition, it is encoded explicitly into the operation so that the operation can be parsed easily without reference to the .debug_info section.

A.2.5.4.3.2 Arithmetic and Logical Operations
NOTE: This section is the same as DWARF Version 5 section 2.5.1.4.
A.2.5.4.3.3 Type Conversion Operations
NOTE: This section is the same as DWARF Version 5 section 2.5.1.6.
A.2.5.4.3.4 Special Value Operations
NOTE: This section replaces parts of DWARF Version 5 sections 2.5.1.2, 2.5.1.3, and 2.5.1.7.

There are these special value operations currently defined:

  1. DW_OP_regval_type

    DW_OP_regval_type has two operands. The first is an unsigned LEB128 integer that represents a register number R. The second is an unsigned LEB128 integer DR that represents the byte offset of a debugging information entry D relative to the beginning of the current compilation unit, that provides the type T of the register value.

    The operation is equivalent to performing DW_OP_regx R; DW_OP_deref_type DR.

    NOTE: Should DWARF allow the type T to be a larger size than the size of the register R? Restricting a larger bit size avoids any issue of conversion as the, possibly truncated, bit contents of the register is simply interpreted as a value of T. If a conversion is wanted it can be done explicitly using a DW_OP_convert operation.

    GDB has a per register hook that allows a target specific conversion on a register by register basis. It defaults to truncation of bigger registers. Removing use of the target hook does not cause any test failures in common architectures. If the compiler for a target architecture did want some form of conversion, including a larger result type, it could always explicitly used the DW_OP_convert operation.

    If T is a larger type than the register size, then the default GDB register hook reads bytes from the next register (or reads out of bounds for the last register!). Removing use of the target hook does not cause any test failures in common architectures (except an illegal hand written assembly test). If a target architecture requires this behavior, these extensions allow a composite location description to be used to combine multiple registers.

  2. DW_OP_deref

    S is the bit size of the generic type divided by 8 (the byte size) and rounded up to a whole number. DR is the offset of a hypothetical debug information entry D in the current compilation unit for a base type of the generic type.

    The operation is equivalent to performing DW_OP_deref_type S, DR.

  3. DW_OP_deref_size

    DW_OP_deref_size has a single 1-byte unsigned integral constant that represents a byte result size S.

    TS is the smaller of the generic type bit size and S scaled by 8 (the byte size). If TS is smaller than the generic type bit size then T is an unsigned integral type of bit size TS, otherwise T is the generic type. DR is the offset of a hypothetical debug information entry D in the current compilation unit for a base type T.

    NOTE: Truncating the value when S is larger than the generic type matches what GDB does. This allows the generic type size to not be an integral byte size. It does allow S to be arbitrarily large. Should S be restricted to the size of the generic type rounded up to a multiple of 8?

    The operation is equivalent to performing DW_OP_deref_type S, DR, except if T is not the generic type, the value V pushed is zero-extended to the generic type bit size and its type changed to the generic type.

  4. DW_OP_deref_type

    DW_OP_deref_type has two operands. The first is a 1-byte unsigned integral constant S. The second is an unsigned LEB128 integer DR that represents the byte offset of a debugging information entry D relative to the beginning of the current compilation unit, that provides the type T of the result value.

    TS is the bit size of the type T.

    While the size of the pushed value V can be inferred from the type T, it is encoded explicitly as the operand S so that the operation can be parsed easily without reference to the .debug_info section.

    NOTE: It is unclear why the operand S is needed. Unlike DW_OP_const_type, the size is not needed for parsing. Any evaluation needs to get the base type T to push with the value to know its encoding and bit size.

    It pops one stack entry that must be a location description L.

    A value V of TS bits is retrieved from the location storage LS specified by one of the single location descriptions SL of L.

    If L, or the location description of any composite location description part that is a subcomponent of L, has more than one single location description, then any one of them can be selected as they are required to all have the same value. For any single location description SL, bits are retrieved from the associated storage location starting at the bit offset specified by SL. For a composite location description, the retrieved bits are the concatenation of the N bits from each composite location part PL, where N is limited to the size of PL.

    V is pushed on the stack with the type T.

    NOTE: This definition makes it an evaluation error if L is a register location description that has less than TS bits remaining in the register storage. Particularly since these extensions extend location descriptions to have a bit offset, it would be odd to define this as performing sign extension based on the type, or be target architecture dependent, as the number of remaining bits could be any number. This matches the GDB implementation for DW_OP_deref_type.

    These extensions define DW_OP_*breg* in terms of DW_OP_regval_type. DW_OP_regval_type is defined in terms of DW_OP_regx, which uses a 0 bit offset, and DW_OP_deref_type. Therefore, it requires the register size to be greater or equal to the address size of the address space. This matches the GDB implementation for DW_OP_*breg*.

    The DWARF is ill-formed if D is not in the current compilation unit, D is not a DW_TAG_base_type debugging information entry, or if TS divided by 8 (the byte size) and rounded up to a whole number is not equal to S.

    NOTE: This definition allows the base type to be a bit size since there seems no reason to restrict it.

    It is an evaluation error if any bit of the value is retrieved from the undefined location storage or the offset of any bit exceeds the size of the location storage LS specified by any single location description SL of L.

    See 2.5.4.4.5 Implicit Location Description Operations for special rules concerning implicit location descriptions created by the DW_OP_implicit_pointer operation.

  5. DW_OP_xderef

    DW_OP_xderef pops two stack entries. The first must be an integral type value that represents an address A. The second must be an integral type value that represents a target architecture specific address space identifier AS.

    The address size S is defined as the address bit size of the target architecture specific address space that corresponds to AS.

    A is adjusted to S bits by zero extending if necessary, and then treating the least significant S bits as an unsigned value A’.

    It creates a location description L with one memory location description SL. SL specifies the memory location storage LS that corresponds to AS with a bit offset equal to A’ scaled by 8 (the byte size).

    If AS is an address space that is specific to context elements, then LS corresponds to the location storage associated with the current context.

    For example, if AS is for per thread storage then LS is the location storage for the current thread. Therefore, if L is accessed by an operation, the location storage selected when the location description was created is accessed, and not the location storage associated with the current context of the access operation.

    The DWARF expression is ill-formed if AS is not one of the values defined by the target architecture specific DW_ASPACE_* values.

    The operation is equivalent to popping A and AS, pushing L, and then performing DW_OP_deref. The value V retrieved is left on the stack with the generic type.

  6. DW_OP_xderef_size

    DW_OP_xderef_size has a single 1-byte unsigned integral constant that represents a byte result size S.

    It pops two stack entries. The first must be an integral type value that represents an address A. The second must be an integral type value that represents a target architecture specific address space identifier AS.

    It creates a location description L as described for DW_OP_xderef.

    The operation is equivalent to popping A and AS, pushing L, and then performing DW_OP_deref_size S . The zero-extended value V retrieved is left on the stack with the generic type.

  7. DW_OP_xderef_type

    DW_OP_xderef_type has two operands. The first is a 1-byte unsigned integral constant S. The second operand is an unsigned LEB128 integer DR that represents the byte offset of a debugging information entry D relative to the beginning of the current compilation unit, that provides the type T of the result value.

    It pops two stack entries. The first must be an integral type value that represents an address A. The second must be an integral type value that represents a target architecture specific address space identifier AS.

    It creates a location description L as described for DW_OP_xderef.

    The operation is equivalent to popping A and AS, pushing L, and then performing DW_OP_deref_type DR . The value V retrieved is left on the stack with the type T.

  8. DW_OP_entry_value Deprecated

    DW_OP_entry_value pushes the value of an expression that is evaluated in the context of the calling frame.

    It may be used to determine the value of arguments on entry to the current call frame provided they are not clobbered.

    It has two operands. The first is an unsigned LEB128 integer S. The second is a block of bytes, with a length equal S, interpreted as a DWARF operation expression E.

    E is evaluated with the current context, except the result kind is unspecified, the call frame is the one that called the current frame, the program location is the call site in the calling frame, the object is unspecified, and the initial stack is empty. The calling frame information is obtained by virtually unwinding the current call frame using the call frame information (see 6.4 Call Frame Information).

    If the result of E is a location description L (see 2.5.4.4.4 Register Location Description Operations), and the last operation executed by E is a DW_OP_reg* for register R with a target architecture specific base type of T, then the contents of the register are retrieved as if a DW_OP_deref_type DR operation was performed where DR is the offset of a hypothetical debug information entry in the current compilation unit for T. The resulting value V s pushed on the stack.

    Using DW_OP_reg* provides a more compact form for the case where the value was in a register on entry to the subprogram.

    NOTE: It is unclear how this provides a more compact expression, as DW_OP_regval_type could be used which is marginally larger.

    If the result of E is a value V, then V is pushed on the stack.

    Otherwise, the DWARF expression is ill-formed.

    The DW_OP_entry_value operation is deprecated as its main usage is provided by other means. DWARF Version 5 added the DW_TAG_call_site_parameter debugger information entry for call sites that has DW_AT_call_value, DW_AT_call_data_location, and DW_AT_call_data_value attributes that provide DWARF expressions to compute actual parameter values at the time of the call, and requires the producer to ensure the expressions are valid to evaluate even when virtually unwound.

    NOTE: GDB only implements DW_OP_entry_value when E is exactly DW_OP_reg* or DW_OP_breg*; DW_OP_deref*.

A.2.5.4.4 Location Description Operations

This section describes the operations that push location descriptions on the stack.

A.2.5.4.4.1 General Location Description Operations
NOTE: This section replaces part of DWARF Version 5 section 2.5.1.3.
  1. DW_OP_push_object_address

    DW_OP_push_object_address pushes the location description L of the current object.

    This object may correspond to an independent variable that is part of a user presented expression that is being evaluated. The object location description may be determined from the variable’s own debugging information entry or it may be a component of an array, structure, or class whose address has been dynamically determined by an earlier step during user expression evaluation.

    This operation provides explicit functionality (especially for arrays involving descriptors) that is analogous to the implicit push of the base location description of a structure prior to evaluation of a DW_AT_data_member_location to access a data member of a structure.

    NOTE: This operation could be removed and the object location description specified as the initial stack as for DW_AT_data_member_location.

    Or this operation could be used instead of needing to specify an initial stack. The latter approach is more composable as access to the object may be needed at any point of the expression, and passing it as the initial stack requires the entire expression to be aware where on the stack it is. If this were done, DW_AT_use_location would require a DW_OP_push_object2_address operation for the second object.

    Or a more general way to pass an arbitrary number of arguments in and an operation to get the Nth one such as DW_OP_arg N. A vector of arguments would then be passed in the expression context rather than an initial stack. This could also resolve the issues with DW_OP_call* by allowing a specific number of arguments passed in and returned to be specified. The DW_OP_call* operation could then always execute on a separate stack: the number of arguments would be specified in a new call operation and taken from the callers stack, and similarly the number of return results specified and copied from the called stack back to the callee stack when the called expression was complete.

    The only attribute that specifies a current object is DW_AT_data_location so the non-normative text seems to overstate how this is being used. Or are there other attributes that need to state they pass an object?

A.2.5.4.4.2 Undefined Location Description Operations
NOTE: This section replaces DWARF Version 5 section 2.6.1.1.1.

The undefined location storage represents a piece or all of an object that is present in the source but not in the object code (perhaps due to optimization). Neither reading nor writing to the undefined location storage is meaningful.

An undefined location description specifies the undefined location storage. There is no concept of the size of the undefined location storage, nor of a bit offset for an undefined location description. The DW_OP_*piece operations can implicitly specify an undefined location description, allowing any size and offset to be specified, and results in a part with all undefined bits.

A.2.5.4.4.3 Memory Location Description Operations
NOTE: This section replaces parts of DWARF Version 5 section 2.5.1.1, 2.5.1.2, 2.5.1.3, and 2.6.1.1.2.

Each of the target architecture specific address spaces has a corresponding memory location storage that denotes the linear addressable memory of that address space. The size of each memory location storage corresponds to the range of the addresses in the corresponding address space.

It is target architecture defined how address space location storage maps to target architecture physical memory. For example, they may be independent memory, or more than one location storage may alias the same physical memory possibly at different offsets and with different interleaving. The mapping may also be dictated by the source language address classes.

A memory location description specifies a memory location storage. The bit offset corresponds to a bit position within a byte of the memory. Bits accessed using a memory location description, access the corresponding target architecture memory starting at the bit position within the byte specified by the bit offset.

A memory location description that has a bit offset that is a multiple of 8 (the byte size) is defined to be a byte address memory location description. It has a memory byte address A that is equal to the bit offset divided by 8.

A memory location description that does not have a bit offset that is a multiple of 8 (the byte size) is defined to be a bit field memory location description. It has a bit position B equal to the bit offset modulo 8, and a memory byte address A equal to the bit offset minus B that is then divided by 8.

The address space AS of a memory location description is defined to be the address space that corresponds to the memory location storage associated with the memory location description.

A location description that is comprised of one byte address memory location description SL is defined to be a memory byte address location description. It has a byte address equal to A and an address space equal to AS of the corresponding SL.

DW_ASPACE_none is defined as the target architecture default address space.

If a stack entry is required to be a location description, but it is a value V with the generic type, then it is implicitly converted to a location description L with one memory location description SL. SL specifies the memory location storage that corresponds to the target architecture default address space with a bit offset equal to V scaled by 8 (the byte size).

NOTE: If it is wanted to allow any integral type value to be implicitly converted to a memory location description in the target architecture default address space:

If a stack entry is required to be a location description, but is a value V with an integral type, then it is implicitly converted to a location description L with a one memory location description SL. If the type size of V is less than the generic type size, then the value V is zero extended to the size of the generic type. The least significant generic type size bits are treated as an unsigned value to be used as an address A. SL specifies memory location storage corresponding to the target architecture default address space with a bit offset equal to A scaled by 8 (the byte size).

The implicit conversion could also be defined as target architecture specific. For example, GDB checks if V is an integral type. If it is not it gives an error. Otherwise, GDB zero-extends V to 64 bits. If the GDB target defines a hook function, then it is called. The target specific hook function can modify the 64-bit value, possibly sign extending based on the original value type. Finally, GDB treats the 64-bit value V as a memory location address.

If a stack entry is required to be a location description, but it is an implicit pointer value IPV with the target architecture default address space, then it is implicitly converted to a location description with one single location description specified by IPV. See 2.5.4.4.5 Implicit Location Description Operations.

If a stack entry is required to be a value, but it is a location description L with one memory location description SL in the target architecture default address space with a bit offset B that is a multiple of 8, then it is implicitly converted to a value equal to B divided by 8 (the byte size) with the generic type.

  1. DW_OP_addr

    DW_OP_addr has a single byte constant value operand, which has the size of the generic type, that represents an address A.

    It pushes a location description L with one memory location description SL on the stack. SL specifies the memory location storage corresponding to the target architecture default address space with a bit offset equal to A scaled by 8 (the byte size).

    If the DWARF is part of a code object, then A may need to be relocated. For example, in the ELF code object format, A must be adjusted by the difference between the ELF segment virtual address and the virtual address at which the segment is loaded.

  2. DW_OP_addrx

    DW_OP_addrx has a single unsigned LEB128 integer operand that represents a zero-based index into the .debug_addr section relative to the value of the DW_AT_addr_base attribute of the associated compilation unit. The address value A in the .debug_addr section has the size of the generic type.

    It pushes a location description L with one memory location description SL on the stack. SL specifies the memory location storage corresponding to the target architecture default address space with a bit offset equal to A scaled by 8 (the byte size).

    If the DWARF is part of a code object, then A may need to be relocated. For example, in the ELF code object format, A must be adjusted by the difference between the ELF segment virtual address and the virtual address at which the segment is loaded.

  3. DW_OP_form_tls_address

    DW_OP_form_tls_address pops one stack entry that must be an integral type value and treats it as a thread-local storage address TA.

    It pushes a location description L with one memory location description SL on the stack. SL is the target architecture specific memory location description that corresponds to the thread-local storage address TA.

    The meaning of the thread-local storage address TA is defined by the run-time environment. If the run-time environment supports multiple thread-local storage blocks for a single thread, then the block corresponding to the executable or shared library containing this DWARF expression is used.

    Some implementations of C, C++, Fortran, and other languages support a thread-local storage class. Variables with this storage class have distinct values and addresses in distinct threads, much as automatic variables have distinct values and addresses in each subprogram invocation. Typically, there is a single block of storage containing all thread-local variables declared in the main executable, and a separate block for the variables declared in each shared library. Each thread-local variable can then be accessed in its block using an identifier. This identifier is typically a byte offset into the block and pushed onto the DWARF stack by one of the DW_OP_const* operations prior to the DW_OP_form_tls_address operation. Computing the address of the appropriate block can be complex (in some cases, the compiler emits a function call to do it), and difficult to describe using ordinary DWARF location descriptions. Instead of forcing complex thread-local storage calculations into the DWARF expressions, the DW_OP_form_tls_address allows the consumer to perform the computation based on the target architecture specific run-time environment.

  4. DW_OP_call_frame_cfa

    DW_OP_call_frame_cfa pushes the location description L of the Canonical Frame Address (CFA) of the current subprogram, obtained from the call frame information on the stack. See 6.4 Call Frame Information.

    Although the value of the DW_AT_frame_base attribute of the debugger information entry corresponding to the current subprogram can be computed using a location list expression, in some cases this would require an extensive location list because the values of the registers used in computing the CFA change during a subprogram execution. If the call frame information is present, then it already encodes such changes, and it is space efficient to reference that using the DW_OP_call_frame_cfa operation.

  5. DW_OP_fbreg

    DW_OP_fbreg has a single signed LEB128 integer operand that represents a byte displacement B.

    The location description L for the frame base of the current subprogram is obtained from the DW_AT_frame_base attribute of the debugger information entry corresponding to the current subprogram as described in 3.3.5 Low-Level Information.

    The location description L is updated by bit offset B scaled by 8 (the byte size) and pushed on the stack.

  6. DW_OP_breg0, DW_OP_breg1, …, DW_OP_breg31

    The DW_OP_breg<N> operations encode the numbers of up to 32 registers, numbered from 0 through 31, inclusive. The register number R corresponds to the N in the operation name.

    They have a single signed LEB128 integer operand that represents a byte displacement B.

    The address space identifier AS is defined as the one corresponding to the target architecture specific default address space.

    The address size S is defined as the address bit size of the target architecture specific address space corresponding to AS.

    The contents of the register specified by R are retrieved as if a DW_OP_regval_type R, DR operation was performed where DR is the offset of a hypothetical debug information entry in the current compilation unit for an unsigned integral base type of size S bits. B is added and the least significant S bits are treated as an unsigned value to be used as an address A.

    They push a location description L comprising one memory location description LS on the stack. LS specifies the memory location storage that corresponds to AS with a bit offset equal to A scaled by 8 (the byte size).

  7. DW_OP_bregx

    DW_OP_bregx has two operands. The first is an unsigned LEB128 integer that represents a register number R. The second is a signed LEB128 integer that represents a byte displacement B.

    The action is the same as for DW_OP_breg<N>, except that R is used as the register number and B is used as the byte displacement.

A.2.5.4.4.4 Register Location Description Operations
NOTE: This section replaces DWARF Version 5 section 2.6.1.1.3.

There is a register location storage that corresponds to each of the target architecture registers. The size of each register location storage corresponds to the size of the corresponding target architecture register.

A register location description specifies a register location storage. The bit offset corresponds to a bit position within the register. Bits accessed using a register location description access the corresponding target architecture register starting at the specified bit offset.

  1. DW_OP_reg0, DW_OP_reg1, …, DW_OP_reg31

    DW_OP_reg<N> operations encode the numbers of up to 32 registers, numbered from 0 through 31, inclusive. The target architecture register number R corresponds to the N in the operation name.

    The operation is equivalent to performing DW_OP_regx R.

  2. DW_OP_regx

    DW_OP_regx has a single unsigned LEB128 integer operand that represents a target architecture register number R.

    If the current call frame is the top call frame, it pushes a location description L that specifies one register location description SL on the stack. SL specifies the register location storage that corresponds to R with a bit offset of 0 for the current thread.

    If the current call frame is not the top call frame, call frame information (see 6.4 Call Frame Information) is used to determine the location description that holds the register for the current call frame and current program location of the current thread. The resulting location description L is pushed.

    Note that if call frame information is used, the resulting location description may be register, memory, or undefined.

    An implementation may evaluate the call frame information immediately, or may defer evaluation until L is accessed by an operation. If evaluation is deferred, R and the current context can be recorded in L. When accessed, the recorded context is used to evaluate the call frame information, not the current context of the access operation.

These operations obtain a register location. To fetch the contents of a register, it is necessary to use DW_OP_regval_type, use one of the DW_OP_breg* register-based addressing operations, or use DW_OP_deref* on a register location description.

A.2.5.4.4.5 Implicit Location Description Operations
NOTE: This section replaces DWARF Version 5 section 2.6.1.1.4.

Implicit location storage represents a piece or all of an object which has no actual location in the program but whose contents are nonetheless known, either as a constant or can be computed from other locations and values in the program.

An implicit location description specifies an implicit location storage. The bit offset corresponds to a bit position within the implicit location storage. Bits accessed using an implicit location description, access the corresponding implicit storage value starting at the bit offset.

  1. DW_OP_implicit_value

    DW_OP_implicit_value has two operands. The first is an unsigned LEB128 integer that represents a byte size S. The second is a block of bytes with a length equal to S treated as a literal value V.

    An implicit location storage LS is created with the literal value V and a size of S.

    It pushes location description L with one implicit location description SL on the stack. SL specifies LS with a bit offset of 0.

  2. DW_OP_stack_value

    DW_OP_stack_value pops one stack entry that must be a value V.

    An implicit location storage LS is created with the literal value V using the size, encoding, and enianity specified by V’s base type.

    It pushes a location description L with one implicit location description SL on the stack. SL specifies LS with a bit offset of 0.

    The DW_OP_stack_value operation specifies that the object does not exist in memory, but its value is nonetheless known. In this form, the location description specifies the actual value of the object, rather than specifying the memory or register storage that holds the value.

    See 2.5.4.4.5 Implicit Location Description Operations for special rules concerning implicit pointer values produced by dereferencing implicit location descriptions created by the DW_OP_implicit_pointer operation.

    NOTE: Since location descriptions are allowed on the stack, the DW_OP_stack_value operation no longer terminates the DWARF operation expression execution as in DWARF Version 5.

  3. DW_OP_implicit_pointer

    An optimizing compiler may eliminate a pointer, while still retaining the value that the pointer addressed. DW_OP_implicit_pointer allows a producer to describe this value.

    DW_OP_implicit_pointer specifies an object is a pointer to the target architecture default address space that cannot be represented as a real pointer, even though the value it would point to can be described. In this form, the location description specifies a debugging information entry that represents the actual location description of the object to which the pointer would point. Thus, a consumer of the debug information would be able to access the dereferenced pointer, even when it cannot access the pointer itself.

    DW_OP_implicit_pointer has two operands. The first operand is a 4-byte unsigned value in the 32-bit DWARF format, or an 8-byte unsigned value in the 64-bit DWARF format, that represents the byte offset DR of a debugging information entry D relative to the beginning of the .debug_info section that contains the current compilation unit. The second operand is a signed LEB128 integer that represents a byte displacement B.

    Note that D may not be in the current compilation unit.

    The first operand interpretation is exactly like that for DW_FORM_ref_addr.

    The address space identifier AS is defined as the one corresponding to the target architecture specific default address space.

    The address size S is defined as the address bit size of the target architecture specific address space corresponding to AS.

    An implicit location storage LS is created with the debugging information entry D, address space AS, and size of S.

    It pushes a location description L that comprises one implicit location description SL on the stack. SL specifies LS with a bit offset of 0.

    It is an evaluation error if a DW_OP_deref* operation pops a location description L’, and retrieves S bits, such that any retrieved bits come from an implicit location storage that is the same as LS, unless both the following conditions are met:

    1. All retrieved bits come from an implicit location description that refers to an implicit location storage that is the same as LS.

      Note that all bits do not have to come from the same implicit location description, as L’ may involve composite location descriptors.

    2. The bits come from consecutive ascending offsets within their respective implicit location storage.

    These rules are equivalent to retrieving the complete contents of LS.

    If both the above conditions are met, then the value V pushed by the DW_OP_deref* operation is an implicit pointer value IPV with a target architecture specific address space of AS, a debugging information entry of D, and a base type of T. If AS is the target architecture default address space, then T is the generic type. Otherwise, T is a target architecture specific integral type with a bit size equal to S.

    If IPV is either implicitly converted to a location description (only done if AS is the target architecture default address space), then the resulting location description RL is:

    • If D has a DW_AT_location attribute, the DWARF expression E from the DW_AT_location attribute is evaluated with the current context, except that the result kind is a location description, the compilation unit is the one that contains D, the object is unspecified, and the initial stack is empty. RL is the expression result.

      Note that E is evaluated with the context of the expression accessing IPV, and not the context of the expression that contained the DW_OP_implicit_pointer operation that created L.

    • If D has a DW_AT_const_value attribute, then an implicit location storage RLS is created from the DW_AT_const_value attribute’s value with a size matching the size of the DW_AT_const_value attribute’s value. RL comprises one implicit location description SRL. SRL specifies RLS with a bit offset of 0.

      NOTE: If using DW_AT_const_value for variables and formal parameters is deprecated and instead DW_AT_location is used with an implicit location description, then this rule would not be required.

    • Otherwise, it is an evaluation error.

    The location description RL is updated by bit offset B scaled by 8 (the byte size).

    If a DW_OP_stack_value operation pops a value that is the same as IPV, then it pushes a location description that is the same as L.

    It is an evaluation error if LS or IPV is accessed in any other manner.

    The restrictions on how an implicit pointer location description created by DW_OP_implicit_pointer can be used are to simplify the DWARF consumer. Similarly, for an implicit pointer value created by DW_OP_deref* and DW_OP_stack_value.

Typically a DW_OP_implicit_pointer operation is used in a DWARF expression E1 of a DW_TAG_variable or DW_TAG_formal_parameter debugging information entry D1’s DW_AT_location attribute. The debugging information entry referenced by the DW_OP_implicit_pointer operation is typically itself a DW_TAG_variable or DW_TAG_formal_parameter debugging information entry D2 whose DW_AT_location attribute gives a second DWARF expression E2.

D1 and E1 are describing the location of a pointer type object. D2 and E2 are describing the location of the object pointed to by that pointer object.

However, D2 may be any debugging information entry that contains a DW_AT_location or DW_AT_const_value attribute (for example, DW_TAG_dwarf_procedure). By using E2, a consumer can reconstruct the value of the object when asked to dereference the pointer described by E1 which contains the DW_OP_implicit_pointer operation.

A.2.5.4.4.6 Composite Location Description Operations
NOTE: This section replaces DWARF Version 5 section 2.6.1.2.

A composite location storage represents an object or value which may be contained in part of another location storage or contained in parts of more than one location storage.

Each part has a part location description L and a part bit size S. L can have one or more single location descriptions SL. If there are more than one SL then that indicates that part is located in more than one place. The bits of each place of the part comprise S contiguous bits from the location storage LS specified by SL starting at the bit offset specified by SL. All the bits must be within the size of LS or the DWARF expression is ill-formed.

A composite location storage can have zero or more parts. The parts are contiguous such that the zero-based location storage bit index will range over each part with no gaps between them. Therefore, the size of a composite location storage is the sum of the size of its parts. The DWARF expression is ill-formed if the size of the contiguous location storage is larger than the size of the memory location storage corresponding to the largest target architecture specific address space.

A composite location description specifies a composite location storage. The bit offset corresponds to a bit position within the composite location storage.

There are operations that create a composite location storage.

There are other operations that allow a composite location storage to be incrementally created. Each part is created by a separate operation. There may be one or more operations to create the final composite location storage. A series of such operations describes the parts of the composite location storage that are in the order that the associated part operations are executed.

To support incremental creation, a composite location storage can be in an incomplete state. When an incremental operation operates on an incomplete composite location storage, it adds a new part.

A composite location description that specifies a composite location storage that is incomplete is termed an incomplete composite location description. A composite location description that specifies a composite location storage that is complete is termed a complete composite location description.

If the top stack entry is a location description that has one incomplete composite location description SL after the execution of an operation expression has completed, SL is converted to a complete composite location description.

Note that this conversion does not happen after the completion of an operation expression that is evaluated on the same stack by the DW_OP_call* operations. Such executions are not a separate evaluation of an operation expression, but rather the continued evaluation of the same operation expression that contains the DW_OP_call* operation.

If a stack entry is required to be a location description L, but L has an incomplete composite location description, then the DWARF expression is ill-formed. The exception is for the operations involved in incrementally creating a composite location description as described below.

Note that a DWARF operation expression may arbitrarily compose composite location descriptions from any other location description, including those that have multiple single location descriptions, and those that have composite location descriptions.

The incremental composite location description operations are defined to be compatible with the definitions in DWARF Version 5.

  1. DW_OP_piece

    DW_OP_piece has a single unsigned LEB128 integer that represents a byte size S.

    The action is based on the context:

    • If the stack is empty, then a location description L comprised of one incomplete composite location description SL is pushed on the stack.

      An incomplete composite location storage LS is created with a single part P. P specifies a location description PL and has a bit size of S scaled by 8 (the byte size). PL is comprised of one undefined location description PSL.

      SL specifies LS with a bit offset of 0.

    • Otherwise, if the top stack entry is a location description L comprised of one incomplete composite location description SL, then the incomplete composite location storage LS that SL specifies is updated to append a new part P. P specifies a location description PL and has a bit size of S scaled by 8 (the byte size). PL is comprised of one undefined location description PSL. L is left on the stack.

    • Otherwise, if the top stack entry is a location description or can be converted to one, then it is popped and treated as a part location description PL. Then:

      • If the top stack entry (after popping PL) is a location description L comprised of one incomplete composite location description SL, then the incomplete composite location storage LS that SL specifies is updated to append a new part P. P specifies the location description PL and has a bit size of S scaled by 8 (the byte size). L is left on the stack.

      • Otherwise, a location description L comprised of one incomplete composite location description SL is pushed on the stack.

        An incomplete composite location storage LS is created with a single part P. P specifies the location description PL and has a bit size of S scaled by 8 (the byte size).

        SL specifies LS with a bit offset of 0.

    • Otherwise, the DWARF expression is ill-formed

    Many compilers store a single variable in sets of registers or store a variable partially in memory and partially in registers. DW_OP_piece provides a way of describing where a part of a variable is located.

    The evaluation rules for the DW_OP_piece operation allow it to be compatible with the DWARF Version 5 definition.

    NOTE: Since these extensions allow location descriptions to be entries on the stack, a simpler operation to create composite location descriptions could be defined. For example, just one operation that specifies how many parts, and pops pairs of stack entries for the part size and location description. Not only would this be a simpler operation and avoid the complexities of incomplete composite location descriptions, but it may also have a smaller encoding in practice. However, the desire for compatibility with DWARF Version 5 is likely a stronger consideration.

  2. DW_OP_bit_piece

    DW_OP_bit_piece has two operands. The first is an unsigned LEB128 integer that represents the part bit size S. The second is an unsigned LEB128 integer that represents a bit displacement B.

    The action is the same as for DW_OP_piece, except that any part created has the bit size S, and the location description PL of any created part is updated by a bit offset B.

    DW_OP_bit_piece is used instead of DW_OP_piece when the piece to be assembled is not byte-sized or is not at the start of the part location description.

A.2.5.5 DWARF Location List Expressions

NOTE: This section replaces DWARF Version 5 section 2.6.2.

To meet the needs of recent computer architectures and optimization techniques, debugging information must be able to describe the location of an object whose location changes over the object’s lifetime, and may reside at multiple locations during parts of an object’s lifetime. Location list expressions are used in place of operation expressions whenever the object whose location is being described has these requirements.

A location list expression consists of a series of location list entries. Each location list entry is one of the following kinds:

  1. Bounded location description

    This kind of location list entry provides an operation expression that evaluates to the location description of an object that is valid over a lifetime bounded by a starting and ending address. The starting address is the lowest address of the address range over which the location is valid. The ending address is the address of the first location past the highest address of the address range.

    The location list entry matches when the current program location is within the given range.

    There are several kinds of bounded location description entries which differ in the way that they specify the starting and ending addresses.

  2. Default location description

    This kind of location list entry provides an operation expression that evaluates to the location description of an object that is valid when no bounded location description entry applies.

    The location list entry matches when the current program location is not within the range of any bounded location description entry.

  3. Base address

    This kind of location list entry provides an address to be used as the base address for beginning and ending address offsets given in certain kinds of bounded location description entries. The applicable base address of a bounded location description entry is the address specified by the closest preceding base address entry in the same location list. If there is no preceding base address entry, then the applicable base address defaults to the base address of the compilation unit (see DWARF Version 5 section 3.1.1).

    In the case of a compilation unit where all of the machine code is contained in a single contiguous section, no base address entry is needed.

  4. End-of-list

    This kind of location list entry marks the end of the location list expression.

The address ranges defined by the bounded location description entries of a location list expression may overlap. When they do, they describe a situation in which an object exists simultaneously in more than one place.

If all of the address ranges in a given location list expression do not collectively cover the entire range over which the object in question is defined, and there is no following default location description entry, it is assumed that the object is not available for the portion of the range that is not covered.

The result of the evaluation of a DWARF location list expression is:

  • If the current program location is not specified, then it is an evaluation error.

    NOTE: If the location list only has a single default entry, should that be considered a match if there is no program location? If there are non-default entries then it seems it has to be an evaluation error when there is no program location as that indicates the location depends on the program location which is not known.

  • If there are no matching location list entries, then the result is a location description that comprises one undefined location description.

  • Otherwise, the operation expression E of each matching location list entry is evaluated with the current context, except that the result kind is a location description, the object is unspecified, and the initial stack is empty. The location list entry result is the location description returned by the evaluation of E.

    The result is a location description that is comprised of the union of the single location descriptions of the location description result of each matching location list entry.

A location list expression can only be used as the value of a debugger information entry attribute that is encoded using class loclist or loclistsptr (see 7.5.5 Classes and Forms). The value of the attribute provides an index into a separate object file section called .debug_loclists or .debug_loclists.dwo (for split DWARF object files) that contains the location list entries.

A DW_OP_call* and DW_OP_implicit_pointer operation can be used to specify a debugger information entry attribute that has a location list expression. Several debugger information entry attributes allow DWARF expressions that are evaluated with an initial stack that includes a location description that may originate from the evaluation of a location list expression.

This location list representation, the loclist and loclistsptr class, and the related DW_AT_loclists_base attribute are new in DWARF Version 5. Together they eliminate most, or all of the code object relocations previously needed for location list expressions.

NOTE: The rest of this section is the same as DWARF Version 5 section 2.6.2.

A.3 Program Scope Entries

NOTE: This section provides changes to existing debugger information entry attributes. These would be incorporated into the corresponding DWARF Version 5 chapter 3 sections.

A.3.3 Subroutine and Entry Point Entries

A.3.3.5 Low-Level Information

  1. A DW_TAG_subprogram, DW_TAG_inlined_subroutine, or DW_TAG_entry_point debugger information entry may have a DW_AT_return_addr attribute, whose value is a DWARF expression E.

    The result of the attribute is obtained by evaluating E with a context that has a result kind of a location description, an unspecified object, the compilation unit that contains E, an empty initial stack, and other context elements corresponding to the source language thread of execution upon which the user is focused, if any. The result of the evaluation is the location description L of the place where the return address for the current call frame’s subprogram or entry point is stored.

    The DWARF is ill-formed if L is not comprised of one memory location description for one of the target architecture specific address spaces.

    NOTE: It is unclear why DW_TAG_inlined_subroutine has a DW_AT_return_addr attribute but not a DW_AT_frame_base or DW_AT_static_link attribute. Seems it would either have all of them or none. Since inlined subprograms do not have a call frame it seems they would have none of these attributes.

  2. A DW_TAG_subprogram or DW_TAG_entry_point debugger information entry may have a DW_AT_frame_base attribute, whose value is a DWARF expression E.

    The result of the attribute is obtained by evaluating E with a context that has a result kind of a location description, an unspecified object, the compilation unit that contains E, an empty initial stack, and other context elements corresponding to the source language thread of execution upon which the user is focused, if any.

    The DWARF is ill-formed if E contains an DW_OP_fbreg operation, or the resulting location description L is not comprised of one single location description SL.

    If SL is a register location description for register R, then L is replaced with the result of evaluating a DW_OP_bregx R, 0 operation. This computes the frame base memory location description in the target architecture default address space.

    This allows the more compact DW_OP_reg* to be used instead of DW_OP_breg* 0.

    NOTE: This rule could be removed and require the producer to create the required location description directly using DW_OP_call_frame_cfa or DW_OP_breg*. This would also then allow a target to implement the call frames within a large register.

    Otherwise, the DWARF is ill-formed if SL is not a memory location description in any of the target architecture specific address spaces.

    The resulting L is the frame base for the subprogram or entry point.

    Typically, E will use the DW_OP_call_frame_cfa operation or be a stack pointer register plus or minus some offset.

  3. If a DW_TAG_subprogram or DW_TAG_entry_point debugger information entry is lexically nested, it may have a DW_AT_static_link attribute, whose value is a DWARF expression E.

    The result of the attribute is obtained by evaluating E with a context that has a result kind of a location description, an unspecified object, the compilation unit that contains E, an empty initial stack, and other context elements corresponding to the source language thread of execution upon which the user is focused, if any. The result of the evaluation is the location description L of the canonical frame address (see 6.4 Call Frame Information) of the relevant call frame of the subprogram instance that immediately lexically encloses the current call frame’s subprogram or entry point.

    The DWARF is ill-formed if L is is not comprised of one memory location description for one of the target architecture specific address spaces.

A.3.4 Call Site Entries and Parameters

A.3.4.2 Call Site Parameters

  1. A DW_TAG_call_site_parameter debugger information entry may have a DW_AT_call_value attribute, whose value is a DWARF operation expression E1.

    The result of the DW_AT_call_value attribute is obtained by evaluating E1 with a context that has a result kind of a value, an unspecified object, the compilation unit that contains E, an empty initial stack, and other context elements corresponding to the source language thread of execution upon which the user is focused, if any. The resulting value V1 is the value of the parameter at the time of the call made by the call site.

    For parameters passed by reference, where the code passes a pointer to a location which contains the parameter, or for reference type parameters, the DW_TAG_call_site_parameter debugger information entry may also have a DW_AT_call_data_location attribute whose value is a DWARF operation expression E2, and a DW_AT_call_data_value attribute whose value is a DWARF operation expression E3.

    The value of the DW_AT_call_data_location attribute is obtained by evaluating E2 with a context that has a result kind of a location description, an unspecified object, the compilation unit that contains E, an empty initial stack, and other context elements corresponding to the source language thread of execution upon which the user is focused, if any. The resulting location description L2 is the location where the referenced parameter lives during the call made by the call site. If E2 would just be a DW_OP_push_object_address, then the DW_AT_call_data_location attribute may be omitted.

    NOTE: The DWARF Version 5 implies that DW_OP_push_object_address may be used but does not state what object must be specified in the context. Either DW_OP_push_object_address cannot be used, or the object to be passed in the context must be defined.

    The value of the DW_AT_call_data_value attribute is obtained by evaluating E3 with a context that has a result kind of a value, an unspecified object, the compilation unit that contains E, an empty initial stack, and other context elements corresponding to the source language thread of execution upon which the user is focused, if any. The resulting value V3 is the value in L2 at the time of the call made by the call site.

    The result of these attributes is undefined if the current call frame is not for the subprogram containing the DW_TAG_call_site_parameter debugger information entry or the current program location is not for the call site containing the DW_TAG_call_site_parameter debugger information entry in the current call frame.

    The consumer may have to virtually unwind to the call site (see 6.4 Call Frame Information) in order to evaluate these attributes. This will ensure the source language thread of execution upon which the user is focused corresponds to the call site needed to evaluate the expression.

    If it is not possible to avoid the expressions of these attributes from accessing registers or memory locations that might be clobbered by the subprogram being called by the call site, then the associated attribute should not be provided.

    The reason for the restriction is that the parameter may need to be accessed during the execution of the callee. The consumer may virtually unwind from the called subprogram back to the caller and then evaluate the attribute expressions. The call frame information (see 6.4 Call Frame Information) will not be able to restore registers that have been clobbered, and clobbered memory will no longer have the value at the time of the call.

A.3.5 Lexical Block Entries

NOTE: This section is the same as DWARF Version 5 section 3.5.

A.4 Data Object and Object List Entries

NOTE: This section provides changes to existing debugger information entry attributes. These would be incorporated into the corresponding DWARF Version 5 chapter 4 sections.

A.4.1 Data Object Entries

  1. Any debugging information entry describing a data object (which includes variables and parameters) or common blocks may have a DW_AT_location attribute, whose value is a DWARF expression E.

    The result of the attribute is obtained by evaluating E with a context that has a result kind of a location description, an unspecified object, the compilation unit that contains E, an empty initial stack, and other context elements corresponding to the source language thread of execution upon which the user is focused, if any. The result of the evaluation is the location description of the base of the data object.

    See 2.5.4.2 Control Flow Operations for special evaluation rules used by the DW_OP_call* operations.

    NOTE: Delete the description of how the DW_OP_call* operations evaluate a DW_AT_location attribute as that is now described in the operations.

    NOTE: See the discussion about the DW_AT_location attribute in the DW_OP_call* operation. Having each attribute only have a single purpose and single execution semantics seems desirable. It makes it easier for the consumer that no longer have to track the context. It makes it easier for the producer as it can rely on a single semantics for each attribute.

    For that reason, limiting the DW_AT_location attribute to only supporting evaluating the location description of an object, and using a different attribute and encoding class for the evaluation of DWARF expression procedures on the same operation expression stack seems desirable.

  2. DW_AT_const_value

    NOTE: Could deprecate using the DW_AT_const_value attribute for DW_TAG_variable or DW_TAG_formal_parameter debugger information entries that have been optimized to a constant. Instead, DW_AT_location could be used with a DWARF expression that produces an implicit location description now that any location description can be used within a DWARF expression. This allows the DW_OP_call* operations to be used to push the location description of any variable regardless of how it is optimized.

A.5 Type Entries

NOTE: This section provides changes to existing debugger information entry attributes. These would be incorporated into the corresponding DWARF Version 5 chapter 5 sections.

A.5.7 Structure, Union, Class and Interface Type Entries

A.5.7.3 Derived or Extended Structures, Classes and Interfaces

  1. For a DW_AT_data_member_location attribute there are two cases:

    1. If the attribute is an integer constant B, it provides the offset in bytes from the beginning of the containing entity.

      The result of the attribute is obtained by updating the bit offset of the location description of the beginning of the containing entity by B scaled by 8 (the byte size). The result is the location description of the base of the member entry.

      If the beginning of the containing entity is not byte aligned, then the beginning of the member entry has the same bit displacement within a byte.

    2. Otherwise, the attribute must be a DWARF expression E which is evaluated with a context that has a result kind of a location description, an unspecified object, the compilation unit that contains E, an initial stack comprising the location description of the beginning of the containing entity, and other context elements corresponding to the source language thread of execution upon which the user is focused, if any. The result of the evaluation is the location description of the base of the member entry.

    NOTE: The beginning of the containing entity can now be any location description, including those with more than one single location description, and those with single location descriptions that are of any kind and have any bit offset.

A.5.7.8 Member Function Entries

  1. An entry for a virtual function also has a DW_AT_vtable_elem_location attribute whose value is a DWARF expression E.

    The result of the attribute is obtained by evaluating E with a context that has a result kind of a location description, an unspecified object, the compilation unit that contains E, an initial stack comprising the location description of the object of the enclosing type, and other context elements corresponding to the source language thread of execution upon which the user is focused, if any. The result of the evaluation is the location description of the slot for the function within the virtual function table for the enclosing class.

A.5.14 Pointer to Member Type Entries

  1. The DW_TAG_ptr_to_member_type debugging information entry has a DW_AT_use_location attribute whose value is a DWARF expression E. It is used to compute the location description of the member of the class to which the pointer to member entry points.

    The method used to find the location description of a given member of a class, structure, or union is common to any instance of that class, structure, or union and to any instance of the pointer to member type. The method is thus associated with the pointer to member type, rather than with each object that has a pointer to member type.

    The DW_AT_use_location DWARF expression is used in conjunction with the location description for a particular object of the given pointer to member type and for a particular structure or class instance.

    The result of the attribute is obtained by evaluating E with a context that has a result kind of a location description, an unspecified object, the compilation unit that contains E, an initial stack comprising two entries, and other context elements corresponding to the source language thread of execution upon which the user is focused, if any. The first stack entry is the value of the pointer to member object itself. The second stack entry is the location description of the base of the entire class, structure, or union instance containing the member whose location is being calculated. The result of the evaluation is the location description of the member of the class to which the pointer to member entry points.

A.5.16 Dynamic Type Entries

  1. The DW_AT_data_location attribute may be used with any type that provides one or more levels of hidden indirection and/or run-time parameters in its representation. Its value is a DWARF operation expression E which computes the location description of the data for an object. When this attribute is omitted, the location description of the data is the same as the location description of the object.

    The result of the attribute is obtained by evaluating E with a context that has a result kind of a location description, an object that is the location description of the data descriptor, the compilation unit that contains E, an empty initial stack, and other context elements corresponding to the source language thread of execution upon which the user is focused, if any. The result of the evaluation is the location description of the base of the member entry.

    E will typically involve an operation expression that begins with a DW_OP_push_object_address operation which loads the location description of the object which can then serve as a descriptor in subsequent calculation.

    NOTE: Since DW_AT_data_member_location, DW_AT_use_location, and DW_AT_vtable_elem_location allow both operation expressions and location list expressions, why does DW_AT_data_location not allow both? In all cases they apply to data objects so less likely that optimization would cause different operation expressions for different program location ranges. But if supporting for some then should be for all.

    It seems odd this attribute is not the same as DW_AT_data_member_location in having an initial stack with the location description of the object since the expression has to need it.

A.6 Other Debugging Information

NOTE: This section provides changes to existing debugger information entry attributes. These would be incorporated into the corresponding DWARF Version 5 chapter 6 sections.

A.6.2 Line Number Information

NOTE: This section is the same as DWARF Version 5 section 6.2.

A.6.4 Call Frame Information

NOTE: This section provides changes to DWARF Version 5 section 6.4. Register unwind DWARF expressions are generalized to allow any location description, including those with composite and implicit location descriptions.

A.6.4.1 Structure of Call Frame Information

The register rules are:

  1. undefined

    A register that has this rule has no recoverable value in the previous frame. The previous value of this register is the undefined location description (see 2.5.4.4.2 Undefined Location Description Operations).

    By convention, the register is not preserved by a callee.

  2. same value

    This register has not been modified from the previous caller frame.

    If the current frame is the top frame, then the previous value of this register is the location description L that specifies one register location description SL. SL specifies the register location storage that corresponds to the register with a bit offset of 0 for the current thread.

    If the current frame is not the top frame, then the previous value of this register is the location description obtained using the call frame information for the callee frame and callee program location invoked by the current caller frame for the same register.

    By convention, the register is preserved by the callee, but the callee has not modified it.

  3. offset(N)

    N is a signed byte offset. The previous value of this register is saved at the location description L. Where L is the location description of the current CFA (see 2.5.4 DWARF Operation Expressions) updated with the bit offset N scaled by 8 (the byte size).

  4. val_offset(N)

    N is a signed byte offset. The previous value of this register is the memory byte address of the location description L. Where L is the location description of the current CFA (see 2.5.4 DWARF Operation Expressions) updated with the bit offset N scaled by 8 (the byte size).

    The DWARF is ill-formed if the CFA location description is not a memory byte address location description, or if the register size does not match the size of an address in the target architecture default address space.

    Since the CFA location description is required to be a memory byte address location description, the value of val_offset(N) will also be a memory byte address location description since it is offsetting the CFA location description by N bytes. Furthermore, the value of val_offset(N) will be a memory byte address in the target architecture default address space.

    NOTE: Should DWARF allow the address size to be a different size to the size of the register? Requiring them to be the same bit size avoids any issue of conversion as the bit contents of the register is simply interpreted as a value of the address.

    GDB has a per register hook that allows a target specific conversion on a register by register basis. It defaults to truncation of bigger registers, and to actually reading bytes from the next register (or reads out of bounds for the last register) for smaller registers. There are no GDB tests that read a register out of bounds (except an illegal hand written assembly test).

  5. register(R)

    This register has been stored in another register numbered R.

    The previous value of this register is the location description obtained using the call frame information for the current frame and current program location for register R.

    The DWARF is ill-formed if the size of this register does not match the size of register R or if there is a cyclic dependency in the call frame information.

    NOTE: Should this also allow R to be larger than this register? If so is the value stored in the low order bits and it is undefined what is stored in the extra upper bits?

  6. expression(E)

    The previous value of this register is located at the location description produced by evaluating the DWARF operation expression E (see 2.5.4 DWARF Operation Expressions).

    E is evaluated with the current context, except the result kind is a location description, the compilation unit is unspecified, the object is unspecified, and an initial stack comprising the location description of the current CFA (see 2.5.4 DWARF Operation Expressions).

  7. val_expression(E)

    The previous value of this register is the value produced by evaluating the DWARF operation expression E (see 2.5.4 DWARF Operation Expressions).

    E is evaluated with the current context, except the result kind is a value, the compilation unit is unspecified, the object is unspecified, and an initial stack comprising the location description of the current CFA (see 2.5.4 DWARF Operation Expressions).

    The DWARF is ill-formed if the resulting value type size does not match the register size.

    NOTE: This has limited usefulness as the DWARF expression E can only produce values up to the size of the generic type. This is due to not allowing any operations that specify a type in a CFI operation expression. This makes it unusable for registers that are larger than the generic type. However, expression(E) can be used to create an implicit location description of any size.

  8. architectural

    The rule is defined externally to this specification by the augmenter.

A Common Information Entry (CIE) holds information that is shared among many Frame Description Entries (FDE). There is at least one CIE in every non-empty .debug_frame section. A CIE contains the following fields, in order:

  1. length (initial length)

    A constant that gives the number of bytes of the CIE structure, not including the length field itself. The size of the length field plus the value of length must be an integral multiple of the address size specified in the address_size field.

  2. CIE_id (4 or 8 bytes, see 7.4 32-Bit and 64-Bit DWARF Formats)

    A constant that is used to distinguish CIEs from FDEs.

    In the 32-bit DWARF format, the value of the CIE id in the CIE header is 0xffffffff; in the 64-bit DWARF format, the value is 0xffffffffffffffff.

  3. version (ubyte)

    A version number. This number is specific to the call frame information and is independent of the DWARF version number.

    The value of the CIE version number is 4.

    NOTE: Would this be increased to 5 to reflect the changes in these extensions?

  4. augmentation (sequence of UTF-8 characters)

    A null-terminated UTF-8 string that identifies the augmentation to this CIE or to the FDEs that use it. If a reader encounters an augmentation string that is unexpected, then only the following fields can be read:

    • CIE: length, CIE_id, version, augmentation
    • FDE: length, CIE_pointer, initial_location, address_range

    If there is no augmentation, this value is a zero byte.

    The augmentation string allows users to indicate that there is additional vendor and target architecture specific information in the CIE or FDE which is needed to virtually unwind a stack frame. For example, this might be information about dynamically allocated data which needs to be freed on exit from the routine.

    Because the .debug_frame section is useful independently of any .debug_info section, the augmentation string always uses UTF-8 encoding.

  5. address_size (ubyte)

    The size of a target address in this CIE and any FDEs that use it, in bytes. If a compilation unit exists for this frame, its address size must match the address size here.

  6. segment_selector_size (ubyte)

    The size of a segment selector in this CIE and any FDEs that use it, in bytes.

  7. code_alignment_factor (unsigned LEB128)

    A constant that is factored out of all advance location instructions (see 6.4.2.1 Row Creation Instructions). The resulting value is (operand * code_alignment_factor).

  8. data_alignment_factor (signed LEB128)

    A constant that is factored out of certain offset instructions (see 6.4.2.2 CFA Definition Instructions and 6.4.2.3 Register Rule Instructions). The resulting value is (operand * data_alignment_factor).

  9. return_address_register (unsigned LEB128)

    An unsigned LEB128 constant that indicates which column in the rule table represents the return address of the subprogram. Note that this column might not correspond to an actual machine register.

    The value of the return address register is used to determine the program location of the caller frame. The program location of the top frame is the target architecture program counter value of the current thread.

  10. initial_instructions (array of ubyte)

    A sequence of rules that are interpreted to create the initial setting of each column in the table.

    The default rule for all columns before interpretation of the initial instructions is the undefined rule. However, an ABI authoring body or a compilation system authoring body may specify an alternate default value for any or all columns.

  11. padding (array of ubyte)

    Enough DW_CFA_nop instructions to make the size of this entry match the length value above.

An FDE contains the following fields, in order:

  1. length (initial length)

    A constant that gives the number of bytes of the header and instruction stream for this subprogram, not including the length field itself. The size of the length field plus the value of length must be an integral multiple of the address size.

  2. CIE_pointer (4 or 8 bytes, see 7.4 32-Bit and 64-Bit DWARF Formats)

    A constant offset into the .debug_frame section that denotes the CIE that is associated with this FDE.

  3. initial_location (segment selector and target address)

    The address of the first location associated with this table entry. If the segment_selector_size field of this FDE’s CIE is non-zero, the initial location is preceded by a segment selector of the given length.

  4. address_range (target address)

    The number of bytes of program instructions described by this entry.

  5. instructions (array of ubyte)

    A sequence of table defining instructions that are described in 6.4.2 Call Frame Instructions.

  6. padding (array of ubyte)

    Enough DW_CFA_nop instructions to make the size of this entry match the length value above.

A.6.4.2 Call Frame Instructions

Some call frame instructions have operands that are encoded as DWARF operation expressions E (see 2.5.4 DWARF Operation Expressions). The DWARF operations that can be used in E have the following restrictions:

  • DW_OP_addrx, DW_OP_call2, DW_OP_call4, DW_OP_call_ref, DW_OP_const_type, DW_OP_constx, DW_OP_convert, DW_OP_deref_type, DW_OP_fbreg, DW_OP_implicit_pointer, DW_OP_regval_type, DW_OP_reinterpret, and DW_OP_xderef_type operations are not allowed because the call frame information must not depend on other debug sections.
  • DW_OP_push_object_address is not allowed because there is no object context to provide a value to push.
  • DW_OP_call_frame_cfa and DW_OP_entry_value are not allowed because their use would be circular.

Call frame instructions to which these restrictions apply include DW_CFA_def_cfa_expression, DW_CFA_expression, and DW_CFA_val_expression.

A.6.4.2.1 Row Creation Instructions
NOTE: These instructions are the same as in DWARF Version 5 section 6.4.2.1.
A.6.4.2.2 CFA Definition Instructions
  1. DW_CFA_def_cfa

    The DW_CFA_def_cfa instruction takes two unsigned LEB128 operands representing a register number R and a (non-factored) byte displacement B. The required action is to define the current CFA rule to be the result of evaluating the DWARF operation expression DW_OP_bregx R, B as a location description.

  2. DW_CFA_def_cfa_sf

    The DW_CFA_def_cfa_sf instruction takes two operands: an unsigned LEB128 value representing a register number R and a signed LEB128 factored byte displacement B. The required action is to define the current CFA rule to be the result of evaluating the DWARF operation expression DW_OP_bregx R, B * data_alignment_factor as a location description.

    The action is the same as DW_CFA_def_cfa, except that the second operand is signed and factored.

  3. DW_CFA_def_cfa_register

    The DW_CFA_def_cfa_register instruction takes a single unsigned LEB128 operand representing a register number R. The required action is to define the current CFA rule to be the result of evaluating the DWARF operation expression DW_OP_bregx R, B as a location description. B is the old CFA byte displacement.

    If the subprogram has no current CFA rule, or the rule was defined by a DW_CFA_def_cfa_expression instruction, then the DWARF is ill-formed.

  4. DW_CFA_def_cfa_offset

    The DW_CFA_def_cfa_offset instruction takes a single unsigned LEB128 operand representing a (non-factored) byte displacement B. The required action is to define the current CFA rule to be the result of evaluating the DWARF operation expression DW_OP_bregx R, B as a location description. R is the old CFA register number.

    If the subprogram has no current CFA rule, or the rule was defined by a DW_CFA_def_cfa_expression instruction, then the DWARF is ill-formed.

  5. DW_CFA_def_cfa_offset_sf

    The DW_CFA_def_cfa_offset_sf instruction takes a signed LEB128 operand representing a factored byte displacement B. The required action is to define the current CFA rule to be the result of evaluating the DWARF operation expression DW_OP_bregx R, B * data_alignment_factor as a location description. R is the old CFA register number.

    If the subprogram has no current CFA rule, or the rule was defined by a DW_CFA_def_cfa_expression instruction, then the DWARF is ill-formed.

    The action is the same as DW_CFA_def_cfa_offset, except that the operand is signed and factored.

  6. DW_CFA_def_cfa_expression

    The DW_CFA_def_cfa_expression instruction takes a single operand encoded as a DW_FORM_exprloc value representing a DWARF operation expression E. The required action is to define the current CFA rule to be the result of evaluating E with the current context, except the result kind is a location description, the compilation unit is unspecified, the object is unspecified, and an empty initial stack.

    See 6.4.2 Call Frame Instructions regarding restrictions on the DWARF expression operations that can be used in E.

    The DWARF is ill-formed if the result of evaluating E is not a memory byte address location description.

A.6.4.2.3 Register Rule Instructions
  1. DW_CFA_undefined

    The DW_CFA_undefined instruction takes a single unsigned LEB128 operand that represents a register number R. The required action is to set the rule for the register specified by R to undefined.

  2. DW_CFA_same_value

    The DW_CFA_same_value instruction takes a single unsigned LEB128 operand that represents a register number R. The required action is to set the rule for the register specified by R to same value.

  3. DW_CFA_offset

    The DW_CFA_offset instruction takes two operands: a register number R (encoded with the opcode) and an unsigned LEB128 constant representing a factored displacement B. The required action is to change the rule for the register specified by R to be an offset(B * data_alignment_factor) rule.

    NOTE: Seems this should be named DW_CFA_offset_uf since the offset is unsigned factored.

  4. DW_CFA_offset_extended

    The DW_CFA_offset_extended instruction takes two unsigned LEB128 operands representing a register number R and a factored displacement B. This instruction is identical to DW_CFA_offset, except for the encoding and size of the register operand.

    NOTE: Seems this should be named DW_CFA_offset_extended_uf since the displacement is unsigned factored.

  5. DW_CFA_offset_extended_sf

    The DW_CFA_offset_extended_sf instruction takes two operands: an unsigned LEB128 value representing a register number R and a signed LEB128 factored displacement B. This instruction is identical to DW_CFA_offset_extended, except that B is signed.

  6. DW_CFA_val_offset

    The DW_CFA_val_offset instruction takes two unsigned LEB128 operands representing a register number R and a factored displacement B. The required action is to change the rule for the register indicated by R to be a val_offset(B * data_alignment_factor) rule.

    NOTE: Seems this should be named DW_CFA_val_offset_uf since the displacement is unsigned factored.

  7. DW_CFA_val_offset_sf

    The DW_CFA_val_offset_sf instruction takes two operands: an unsigned LEB128 value representing a register number R and a signed LEB128 factored displacement B. This instruction is identical to DW_CFA_val_offset, except that B is signed.

  8. DW_CFA_register

    The DW_CFA_register instruction takes two unsigned LEB128 operands representing register numbers R1 and R2 respectively. The required action is to set the rule for the register specified by R1 to be a register(R2) rule.

  9. DW_CFA_expression

    The DW_CFA_expression instruction takes two operands: an unsigned LEB128 value representing a register number R, and a DW_FORM_block value representing a DWARF operation expression E. The required action is to change the rule for the register specified by R to be an expression(E) rule.

    That is, E computes the location description where the register value can be retrieved.

    See 6.4.2 Call Frame Instructions regarding restrictions on the DWARF expression operations that can be used in E.

  10. DW_CFA_val_expression

    The DW_CFA_val_expression instruction takes two operands: an unsigned LEB128 value representing a register number R, and a DW_FORM_block value representing a DWARF operation expression E. The required action is to change the rule for the register specified by R to be a val_expression(E) rule.

    That is, E computes the value of register R.

    See 6.4.2 Call Frame Instructions regarding restrictions on the DWARF expression operations that can be used in E.

    If the result of evaluating E is not a value with a base type size that matches the register size, then the DWARF is ill-formed.

  11. DW_CFA_restore

    The DW_CFA_restore instruction takes a single operand (encoded with the opcode) that represents a register number R. The required action is to change the rule for the register specified by R to the rule assigned it by the initial_instructions in the CIE.

  12. DW_CFA_restore_extended

    The DW_CFA_restore_extended instruction takes a single unsigned LEB128 operand that represents a register number R. This instruction is identical to DW_CFA_restore, except for the encoding and size of the register operand.

A.6.4.2.4 Row State Instructions
NOTE: These instructions are the same as in DWARF Version 5 section 6.4.2.4.
A.6.4.2.5 Padding Instruction
NOTE: These instructions are the same as in DWARF Version 5 section 6.4.2.5.

A.6.4.3 Call Frame Instruction Usage

NOTE: The same as in DWARF Version 5 section 6.4.3.

A.6.4.4 Call Frame Calling Address

NOTE: The same as in DWARF Version 5 section 6.4.4.

A.7 Data Representation

NOTE: This section provides changes to existing debugger information entry attributes. These would be incorporated into the corresponding DWARF Version 5 chapter 7 sections.

A.7.4 32-Bit and 64-Bit DWARF Formats

NOTE: This augments DWARF Version 5 section 7.4 list item 3’s table.
Form                     Role
------------------------ --------------------------------------
DW_OP_implicit_pointer   offset in `.debug_info`

A.7.5 Format of Debugging Information

A.7.5.5 Classes and Forms

NOTE: The same as in DWARF Version 5 section 7.5.5.

A.7.7 DWARF Expressions

NOTE: Rename DWARF Version 5 section 7.7 to reflect the unification of location descriptions into DWARF expressions.

A.7.7.1 Operation Expressions

NOTE: Rename DWARF Version 5 section 7.7.1 and delete section 7.7.2 to reflect the unification of location descriptions into DWARF expressions.

A.7.7.3 Location List Expressions

NOTE: Rename DWARF Version 5 section 7.7.3 to reflect that location lists are a kind of DWARF expression.

B. Further Information

The following references provide additional information on the extension.

A reference to the DWARF standard is provided.

A formatted version of this extension is available on the LLVM site. It includes many figures that help illustrate the textual description, especially of the example DWARF expression evaluations.

Slides and a video of a presentation at the Linux Plumbers Conference 2021 related to this extension are available.

The LLVM compiler extension includes the operations mentioned in the motivating examples. It also covers other extensions needed for heterogeneous devices.
